TIMCO Flush Hinge (105) for Cupboards Cabinets Doors Shutters Zinc Electro Brass White - Choose Size and Colour

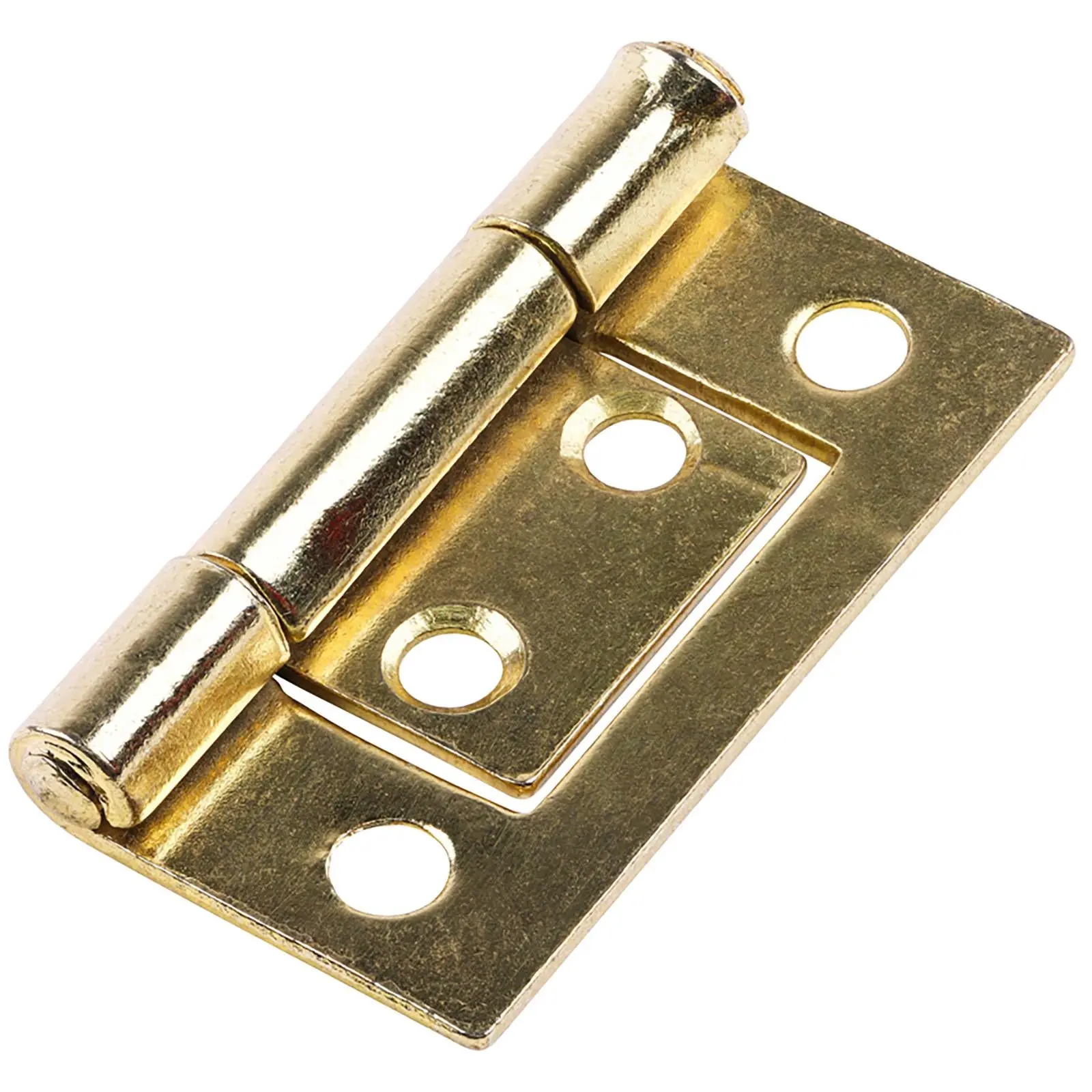

TIMCO Flush Hinge (105)

Ideal for use in a variety of joinery applications. Commonly used for light cupboards, cabinets, bifold, louvre doors and shutters

Flush finish enables a quick and easy fitting with no morticing required

Manufactured from steel and available in a variety of finishes

Ideal for lay over doors

Specification:

Thickness: 38 x 28 mm - 1.2 mm | 50 x 38.5mm - 1.2 mm | 63 x 37mm - 1.2 mm | 75 x 51mm - 1.5 mm
Knuckle Ø: 38 x 28 mm - 6.5 mm | 50 x 38.5mm - 6.5 mm | 63 x 37mm - 6.5 mm | 75 x 51mm - 8.0 mm
Rec Screw (mm | imp): 3.5 mm | 6
Max Door Weight: 38 x 28 mm - 2 kg | 50 x 38.5mm - 5 kg | 63 x 37mm - 10 kg | 75 x 51mm - 12 kg

Product Information

Shipping & Returns

TIMCO Flush Hinge (105) for Cupboards Cabinets Doors Shutters Zinc Electro Brass White - Choose Size and Colour

Thickness: 38 x 28 mm - 1.2 mm | 50 x 38.5mm - 1.2 mm | 63 x 37mm - 1.2 mm | 75 x 51mm - 1.5 mm
Knuckle Ø: 38 x 28 mm - 6.5 mm | 50 x 38.5mm - 6.5 mm | 63 x 37mm - 6.5 mm | 75 x 51mm - 8.0 mm
Rec Screw (mm | imp): 3.5 mm | 6
Max Door Weight: 38 x 28 mm - 2 kg | 50 x 38.5mm - 5 kg | 63 x 37mm - 10 kg | 75 x 51mm - 12 kg
