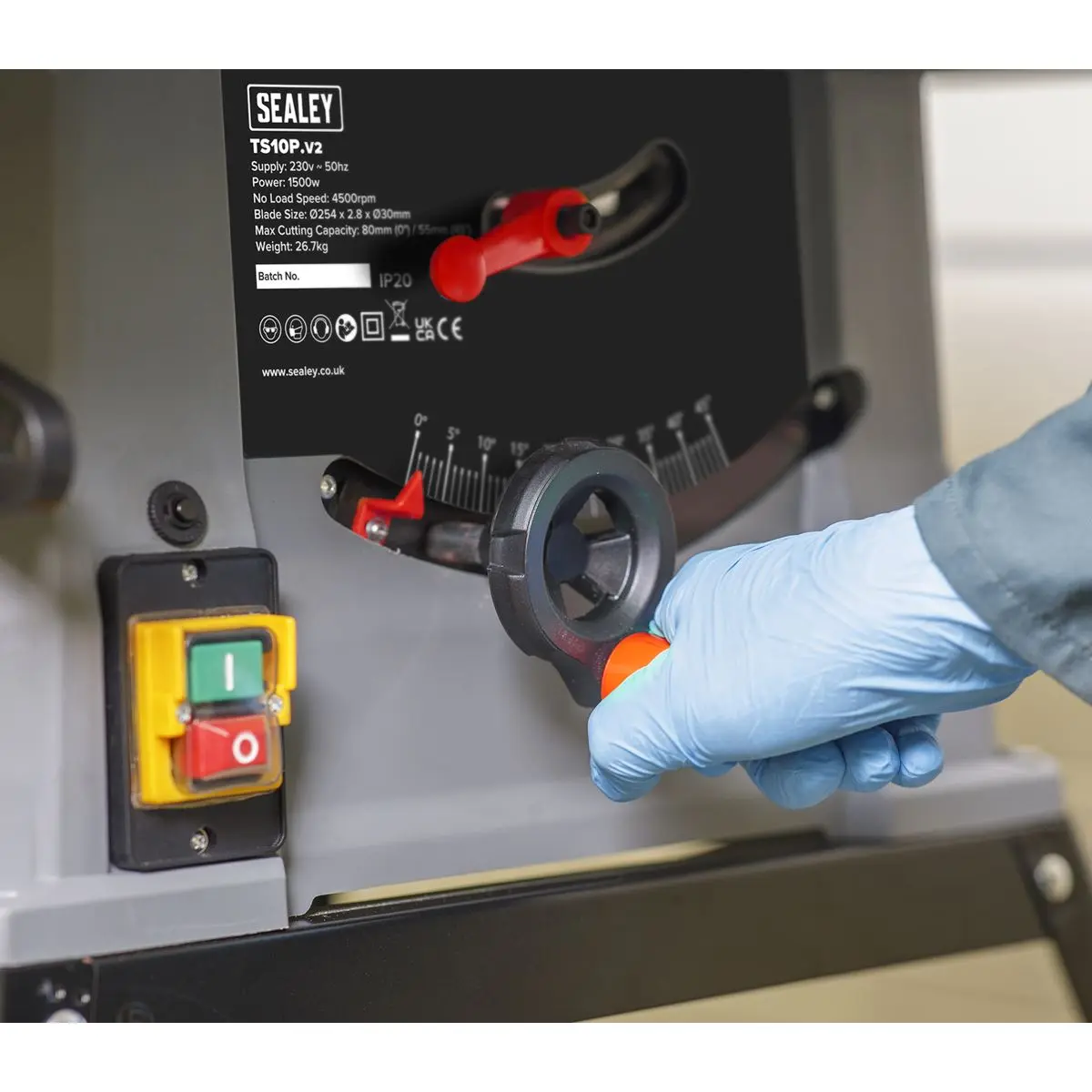

Sealey 254mm Table Saw 230V

Powder coated aluminium table with one rear and two side extension tables.

Supplied with 40-tooth TCT blade and 1500W motor.

Cutting capacity: 80mm at 90° and 55mm at 45°.

Includes quick lock rip-fence, mitre gauge, dust extraction port, push stick and sturdy metal stand.

Fitted with 3-pin plug.

Specification:

• Model No TS10P
• Brand: Sealey
• Nett Weight: 26.70kg
• Motor Power: 1500W - 230V
• Saw Blade Diameter: Ø254mm
• Arbor Diameter: Ø30mm
• Speed: 4500rpm
• Maximum Depth of 0º Cut: 80mm
• Maximum Depth of 45º Cut: 55mm
• Table Size (W x D): 554 x 540mm
• Table Extension Sizes (W x D):
• Side (x2): 115 x 540mm
• Rear: 544 x 118 mm
• Dust Extraction OD: Ø58.5/99mm
• Replacement Blade: TS10P.601
• Motor Power: 1500W - 230V
• Saw Blade Diameter: Ø254mm
• Arbor Diameter: Ø30mm
• Speed: 4500rpm
• Maximum Depth of 0º Cut: 80mm
• Maximum Depth of 45º Cut: 55mm
• Table Size (W x D): 554 x 540mm
• Table Extension Sizes (W x D):
• Side (x2): 115 x 540mm
• Rear: 544 x 118 mm
• Dust Extraction OD: Ø58.5/99mm
• Replacement Blade: TS10P.601

Product Guarantee: 1 Year
Catalogue Page: Page 924

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
