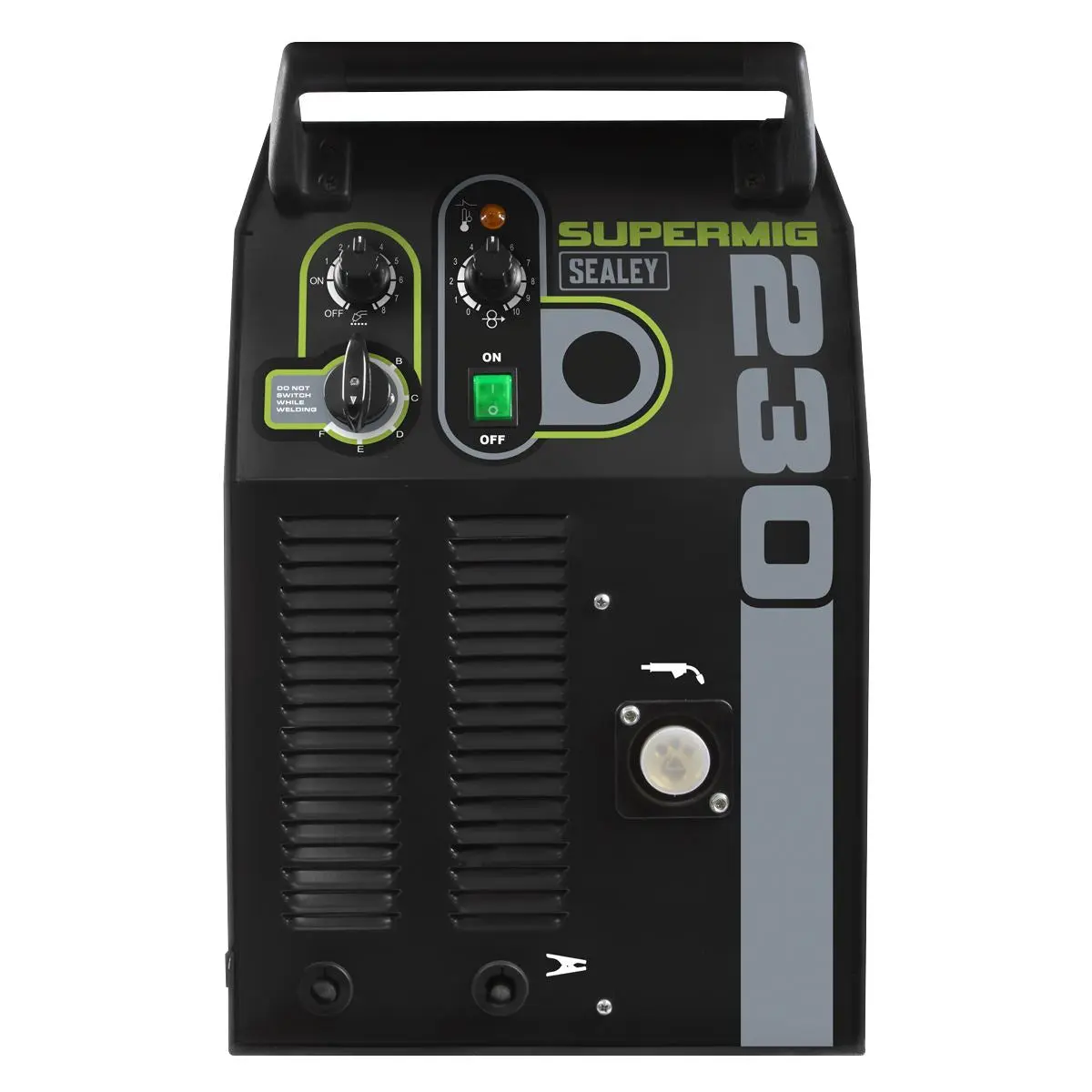

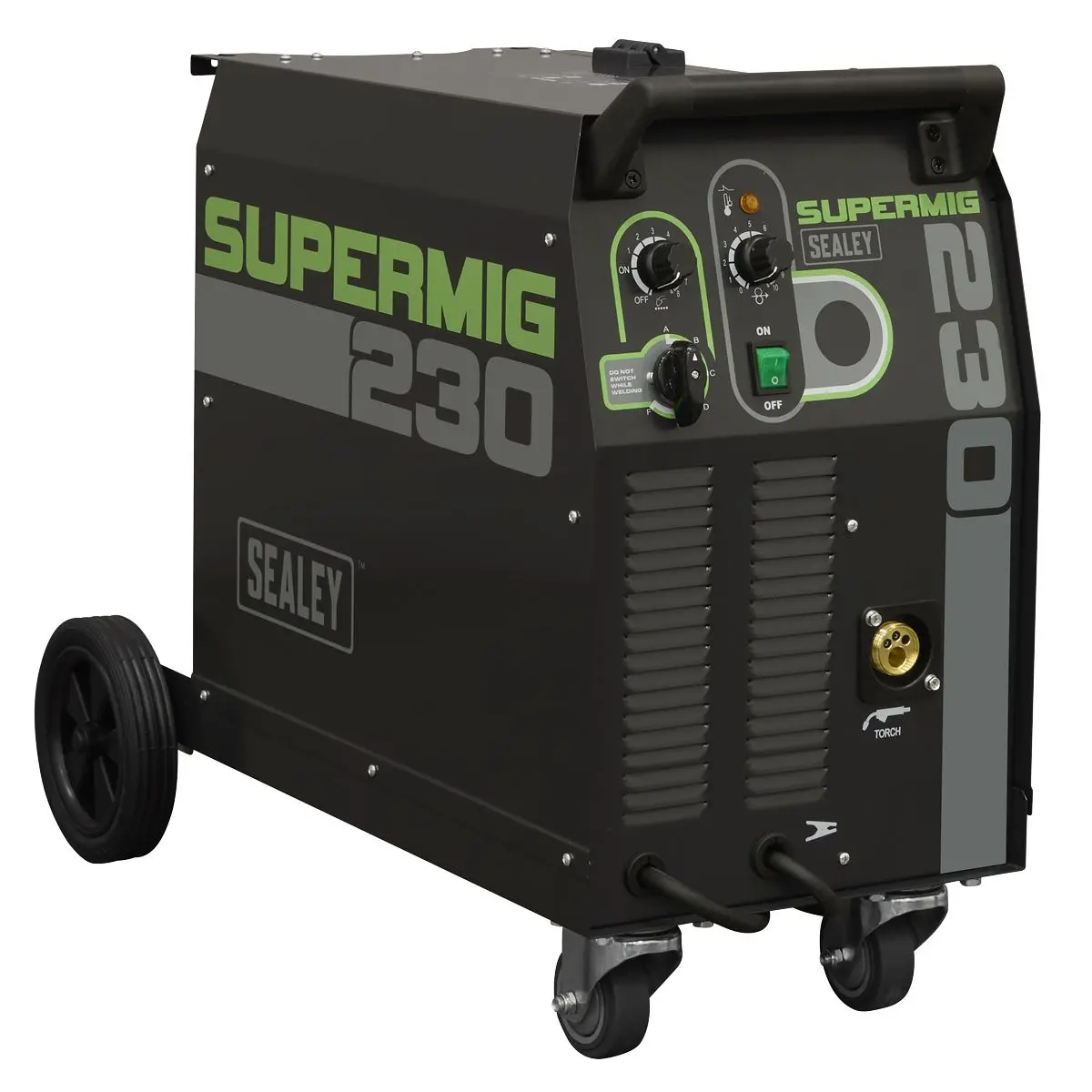

Sealey Professional Gas/Gasless MIG Welder with Binzel® Euro Torch 230A 230V

SEALEY SUPERMIG® - Compact, gas/gasless welder with 230A maximum performance.

HIGH OUTPUT TRANSFORMER – Heavy-duty high output transformer, with 30-230A welding current.

FORCED AIR COOLING – To maximise duty cycle performance.

BOTH GAS/GASLESS OPERATION – Unit is supplied set up in gas mode but can easily be switched to gasless mode by a simple change of polarity. Use in gasless mode will require spool of flux cored wire.

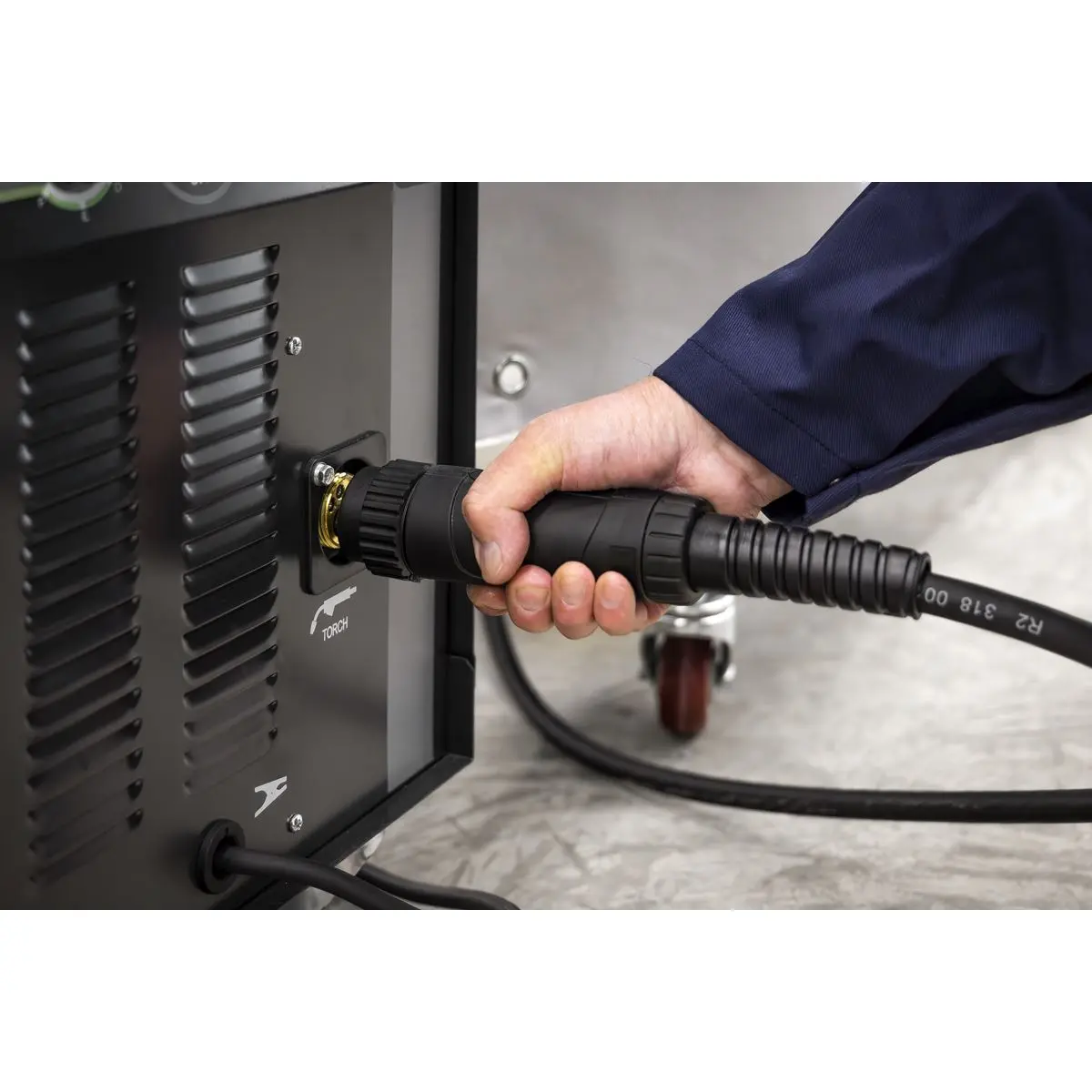

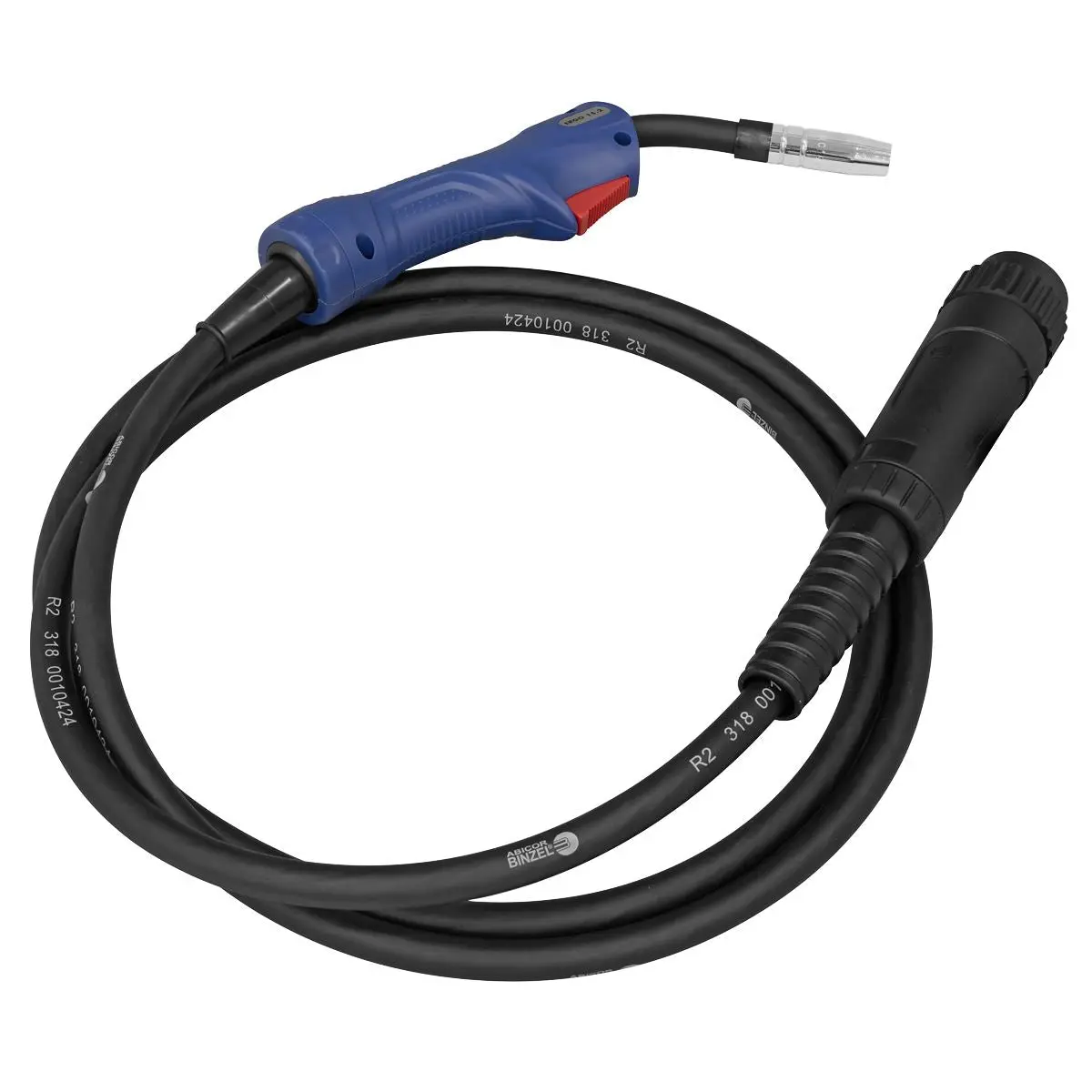

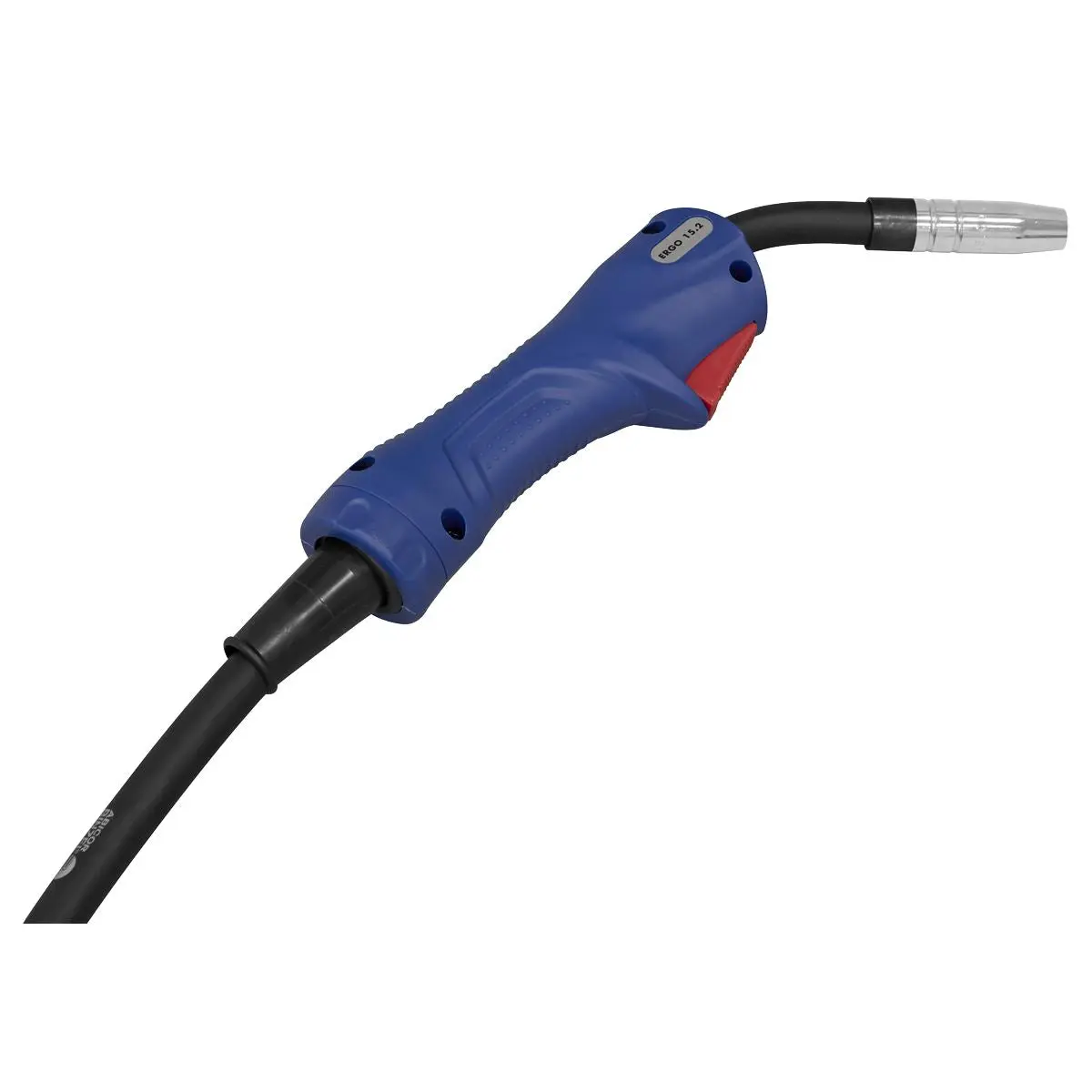

EURO NON-LIVE TORCH – Supplied with 3m Binzel® non-live Euro torch reducing accidental arcing and is comfortable in the hand, ensuring a steadier weld bead.

ACCESSORIES INCLUDED – Includes industrial gas regulator 2.4m earth cable with clamp, 0.6mm contact tip, 1.4m gas hose, hose clamp (x2).

3 YEAR GUARANTEE*.

Specification:

• Model No SUPERMIG230
• Brand: Sealey
• Nett Weight: 37.9kg
• Welding Current: 30-230A
• Wire Capacity: 5-15kg
• Duty Cycle: 100% @ 68A, 60% @ 88A, 15% @ 175A
• Cooling System: Forced Air
• Spot Welding Timer: Yes
• Gas Type: CO2, Argon, CO2/Argon Mix
• Torch: 3m Euro Non-Live - BINZEL® Ergo 15.2
• Supply: 230V
• Absorbed Power: 8kW
• Case Size: Large
• Note: *To achieve maximum power a 32A supply may be required.

Product Guarantee: 3 Years
Catalogue Page: Page 993

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
