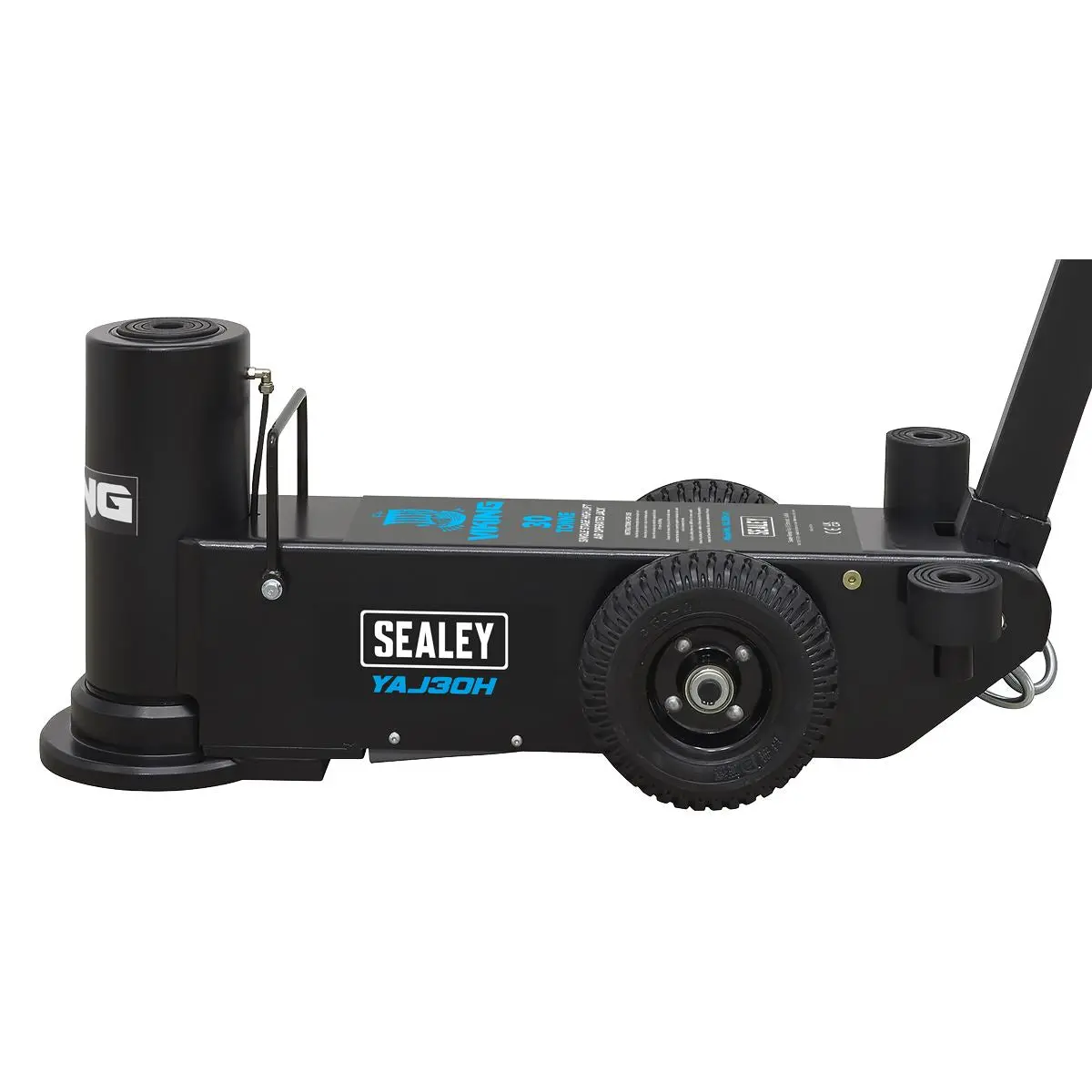

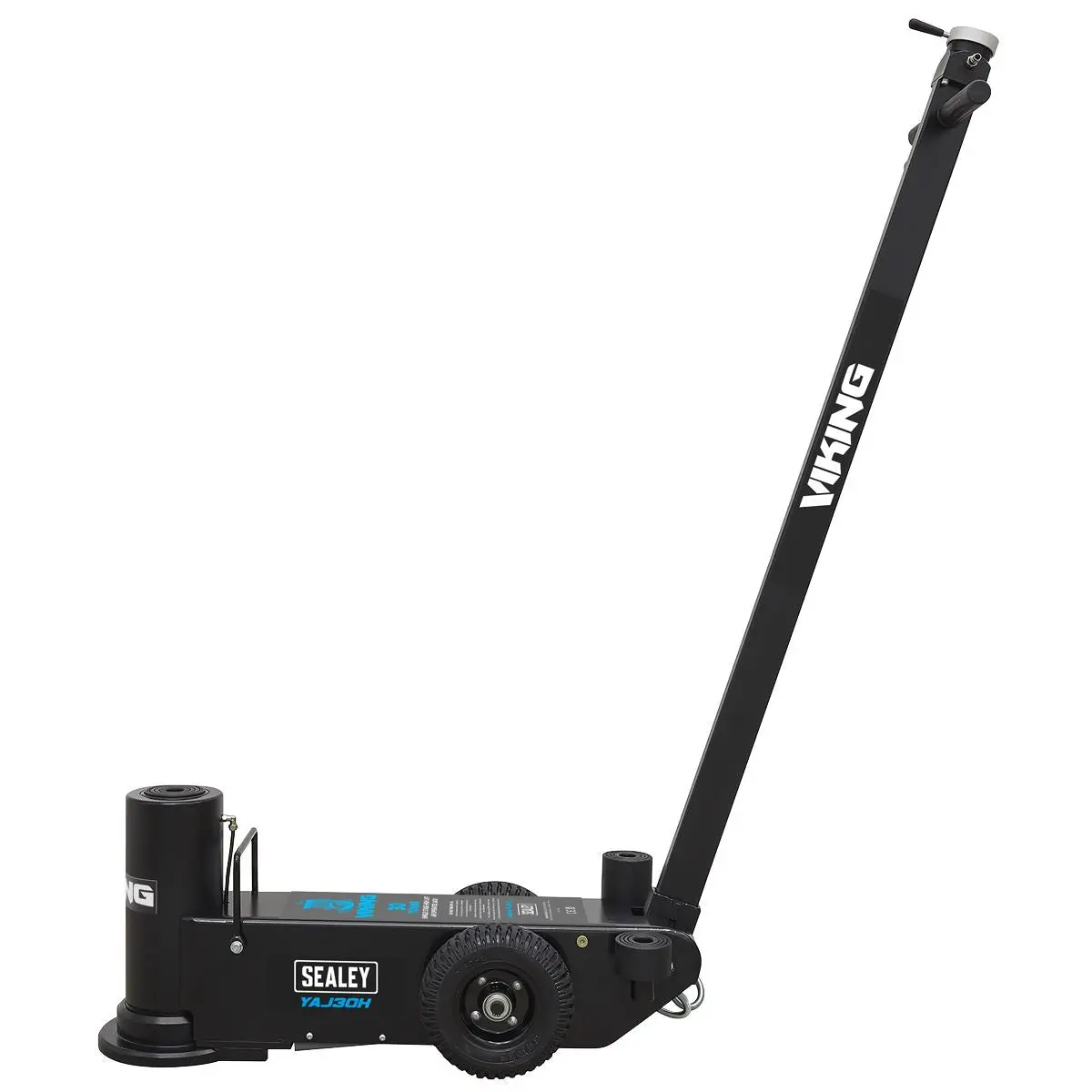

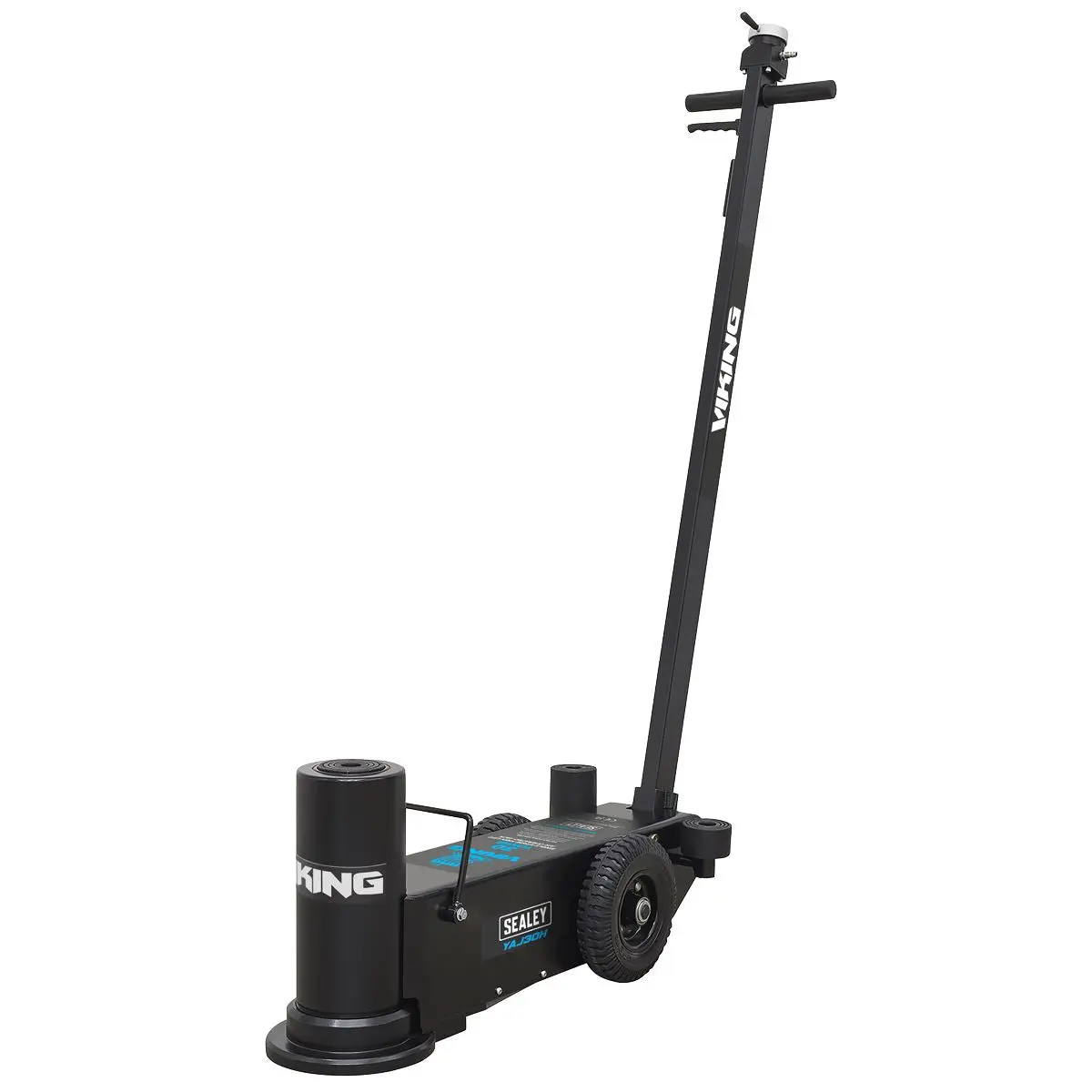

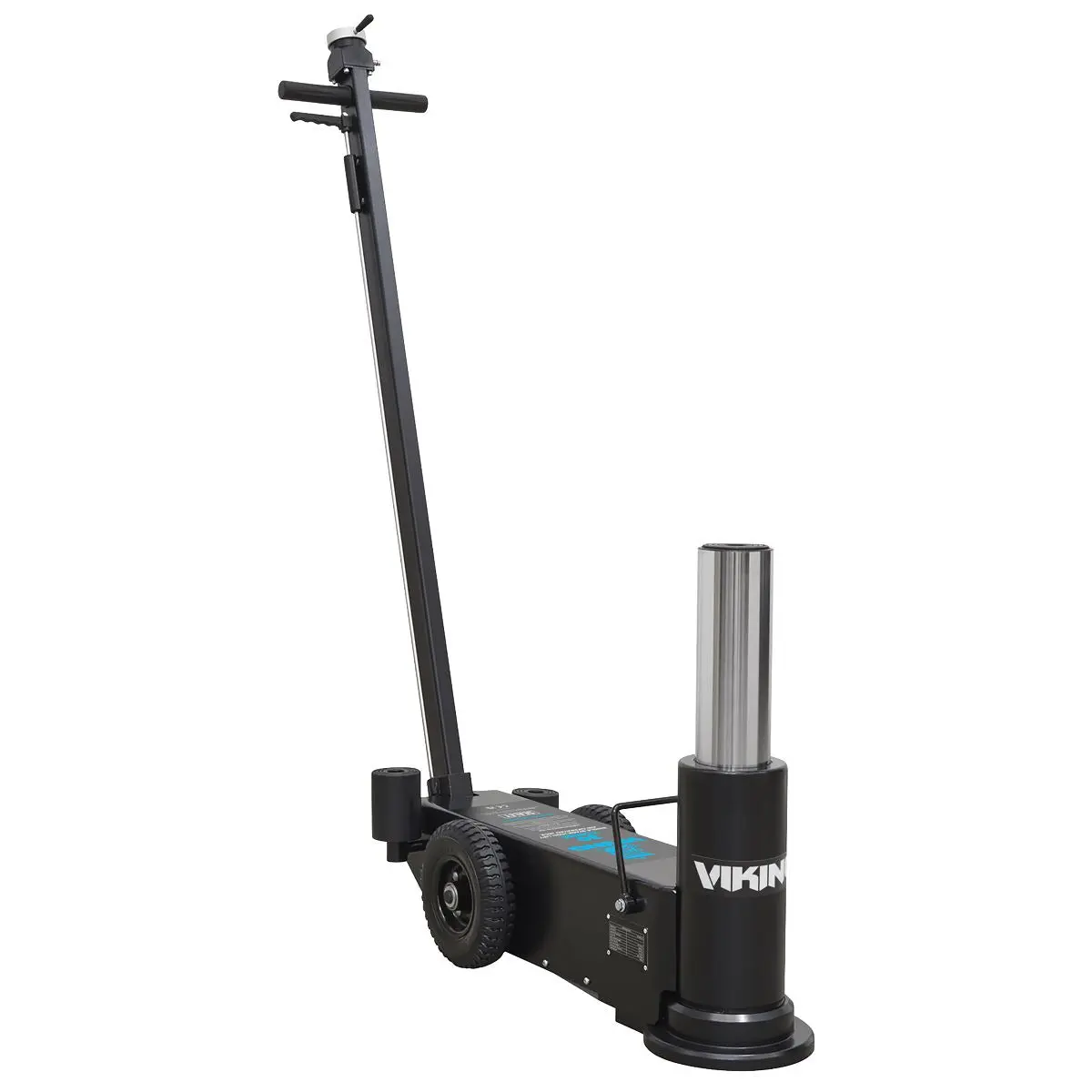

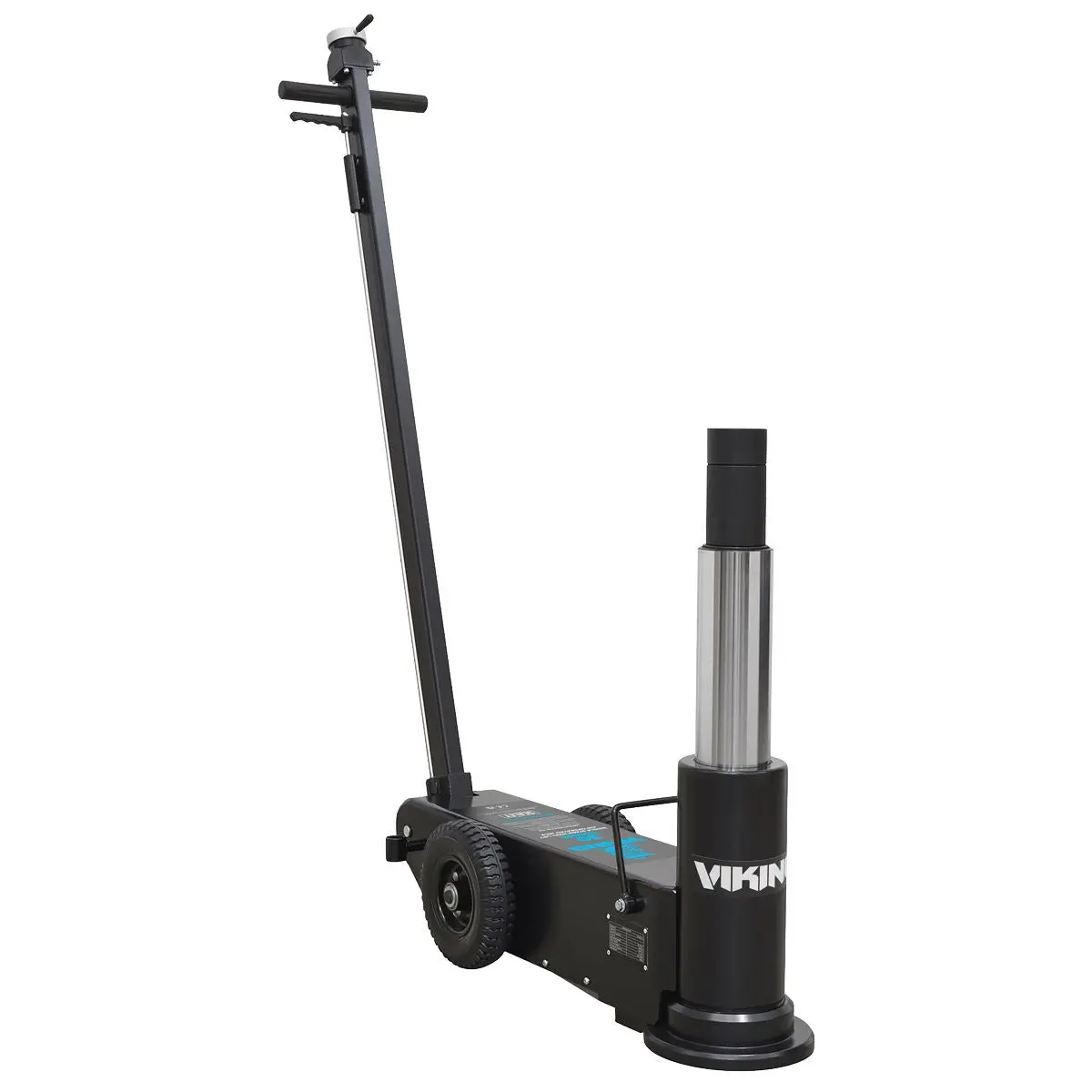

Sealey Viking Air Operated High Lift Single Stage Jack 30 Tonne

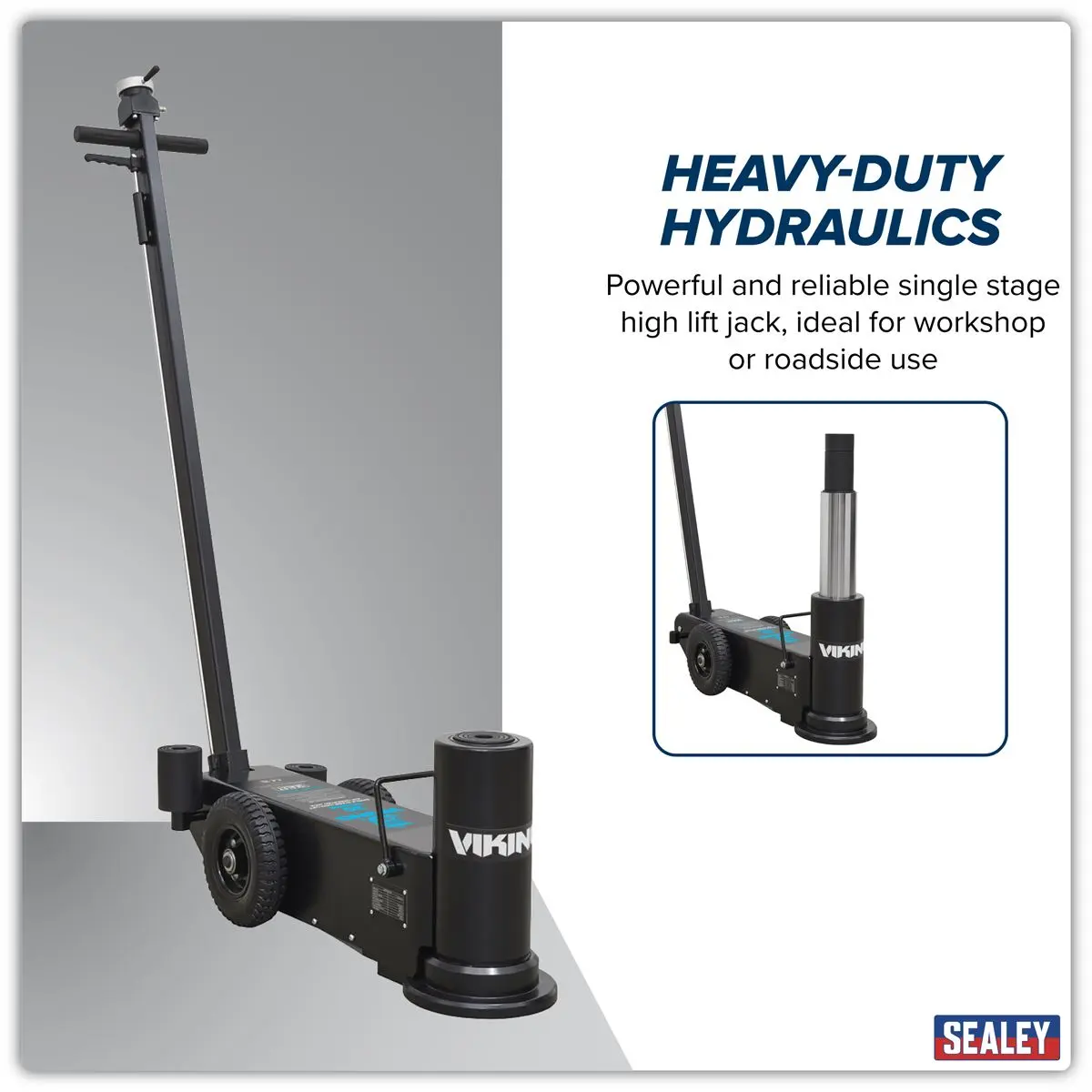

HEAVY DUTY HYDRAULICS - Powerful and reliable single stage high lift jack, ideal for workshop or roadside use.

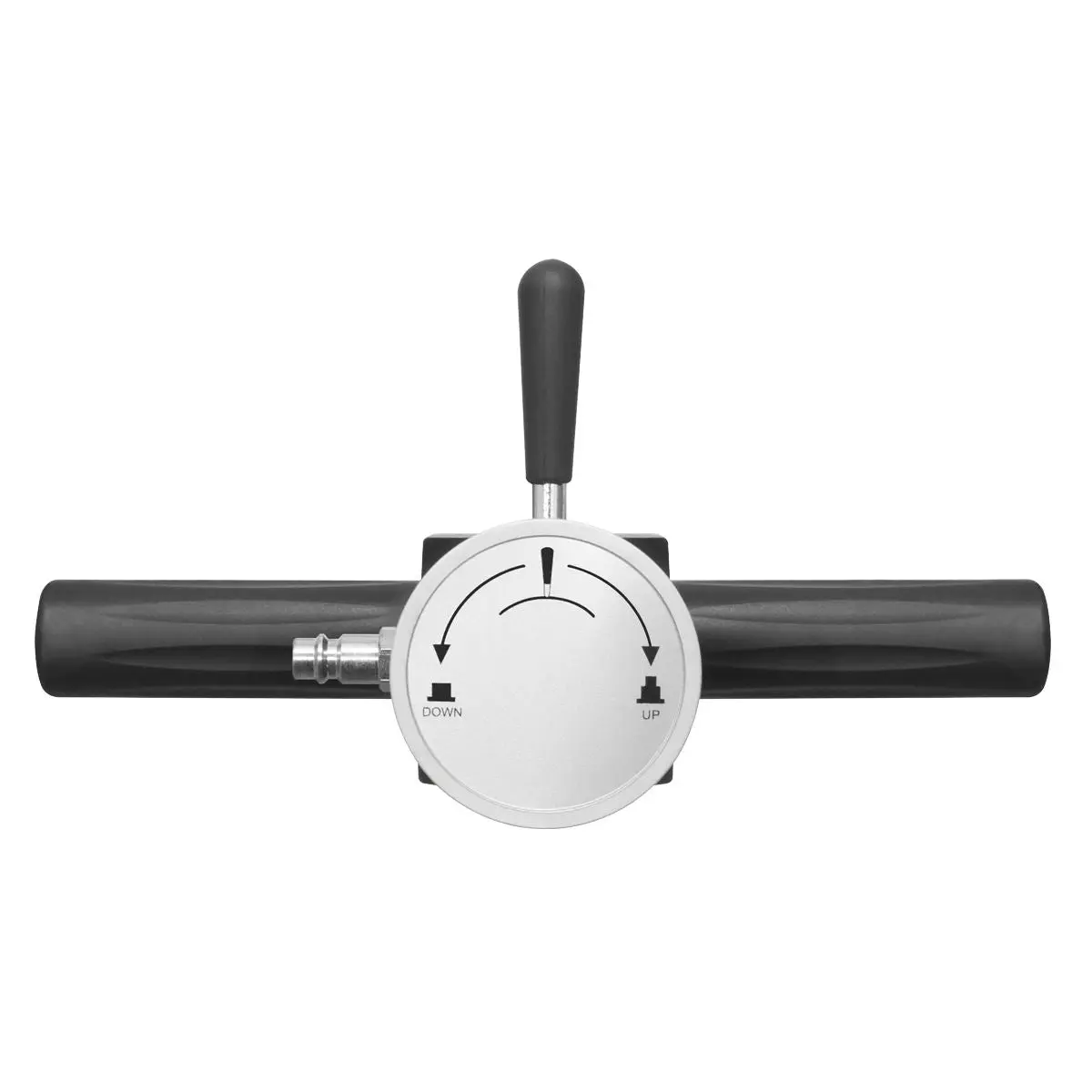

AIR OPERATED - Takes the effort out of lifting heavy plant, tractors and commercial vehicles.

ACCESSORIES INCLUDED - Supplied with 45mm and 100mm extensions.

MAXIMUM CAPACITY: 30 Tonne.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

3 Year Guarantee*.

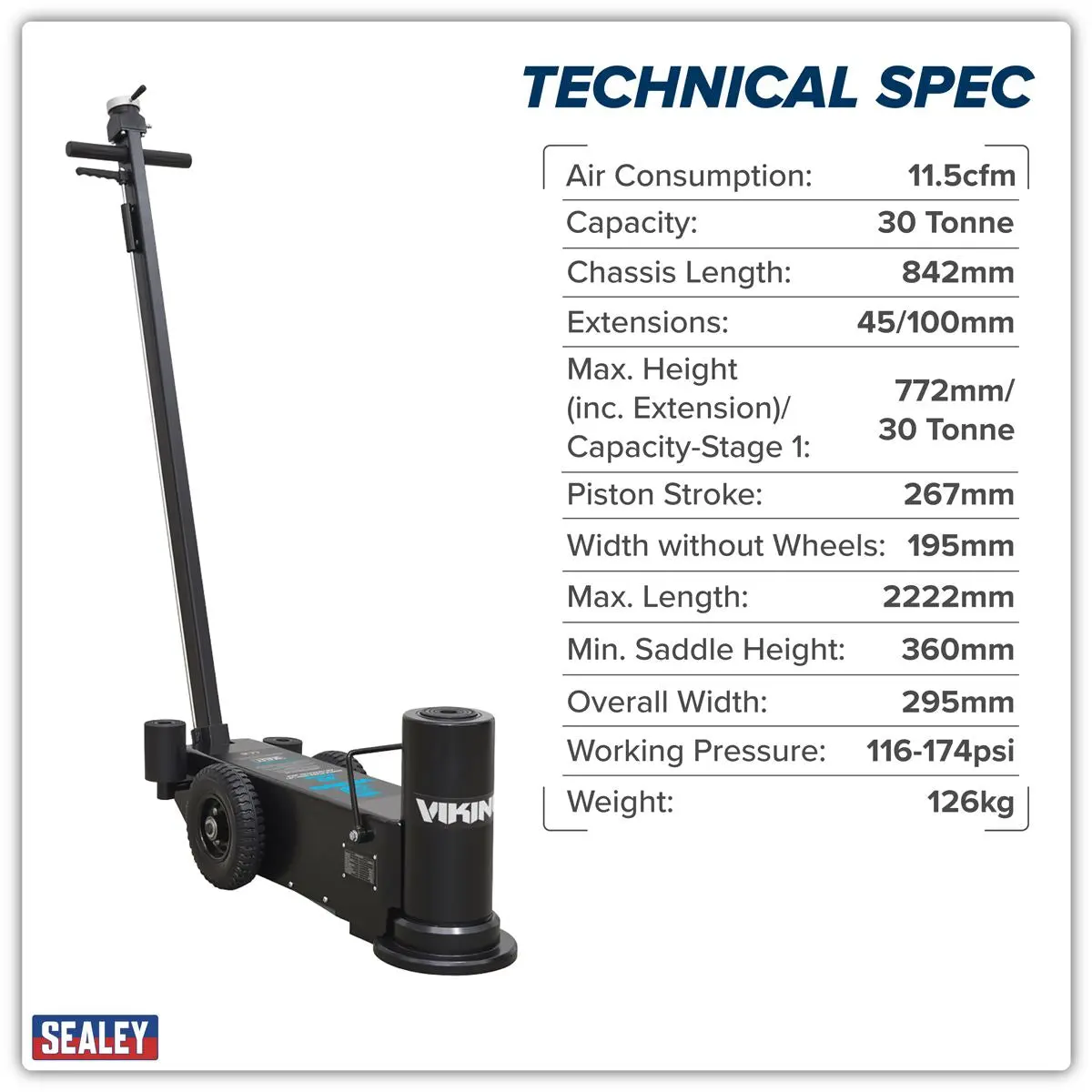

Specification:

• Model No YAJ30H
• Air Consumption: 11.5cfm
• Brand: Viking
• Capacity: 30 Tonne
• Chassis Length: 842mm
• Extensions: 45/100mm
• Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne): 772/30
• Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne): n/a
• Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne): n/a
• Maximum Length: 2222mm
• Minimum Saddle Height: 360mm
• Nett Weight: 126kg
• Overall Width: 295mm
• Piston Stroke: 267mm
• Screw Extension: n/a
• Width without Wheels: 195mm
• Working Pressure: 116-174psi

Product Guarantee: 3 Years
Catalogue Page: Page 847

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
