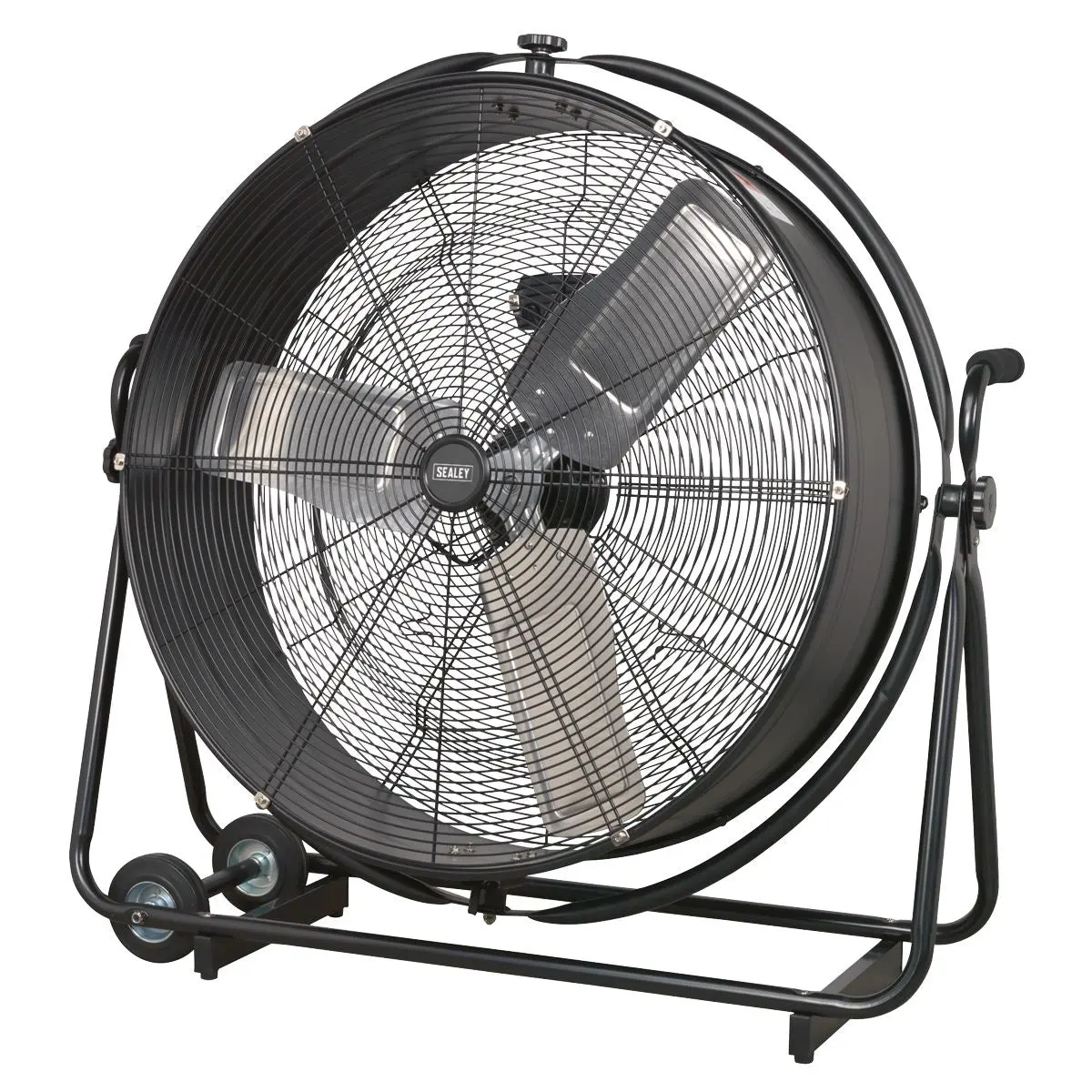

Sealey Industrial High Velocity Orbital Drum Fan 30" 230V

High velocity industrial 2-speed drum fan suitable for movement of huge volumes of air.

Robust unit with heavy-duty gauge steel casing, guard and frame.

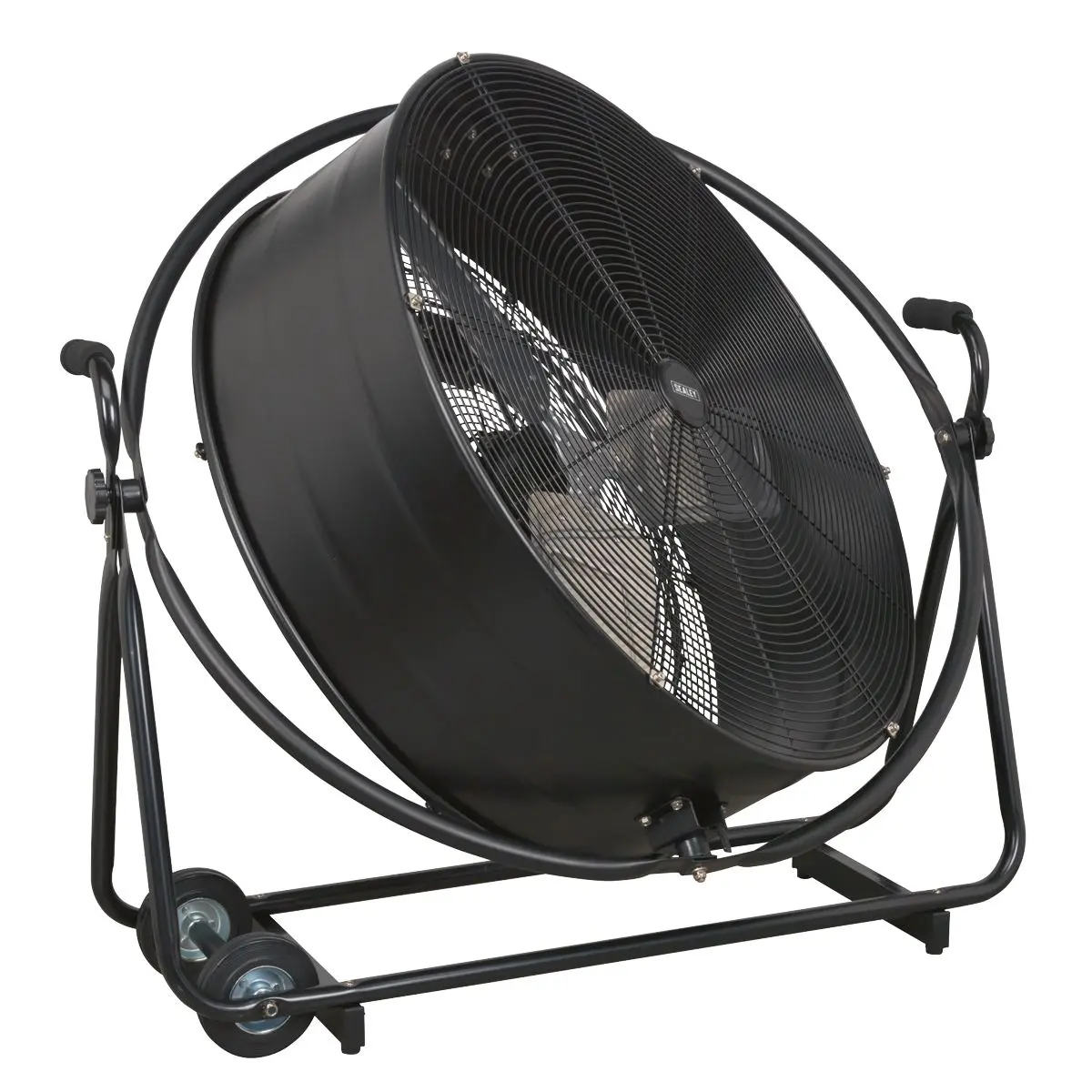

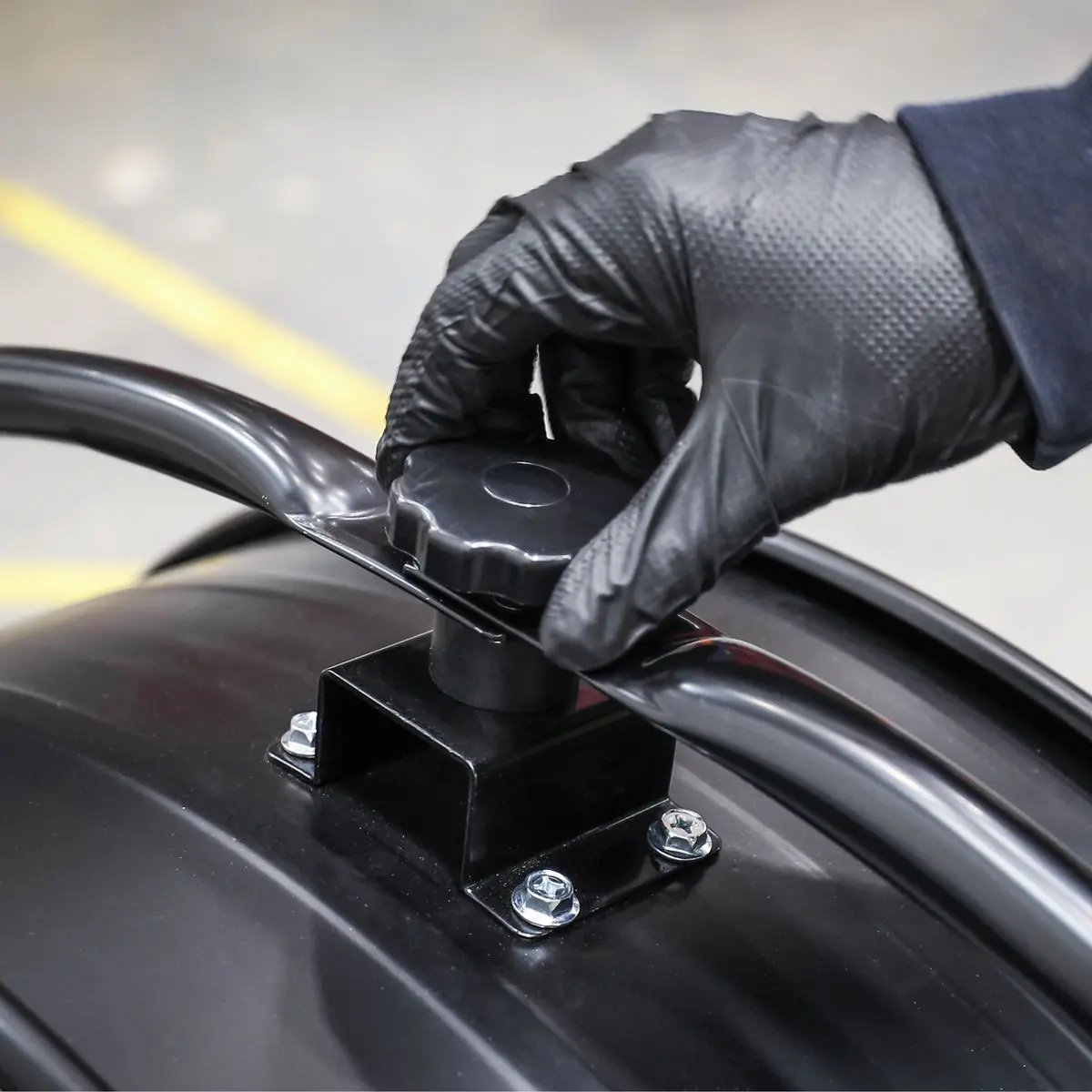

Featuring a 360° tilt function allowing for the direction of airflow to be positioned anywhere on a 360° axis.

Carefully balanced and fully guarded blades provide safe operation.

Maximum Airflow: 283.4m³/min(10008cfm).

Fitted with 3-pin plug.

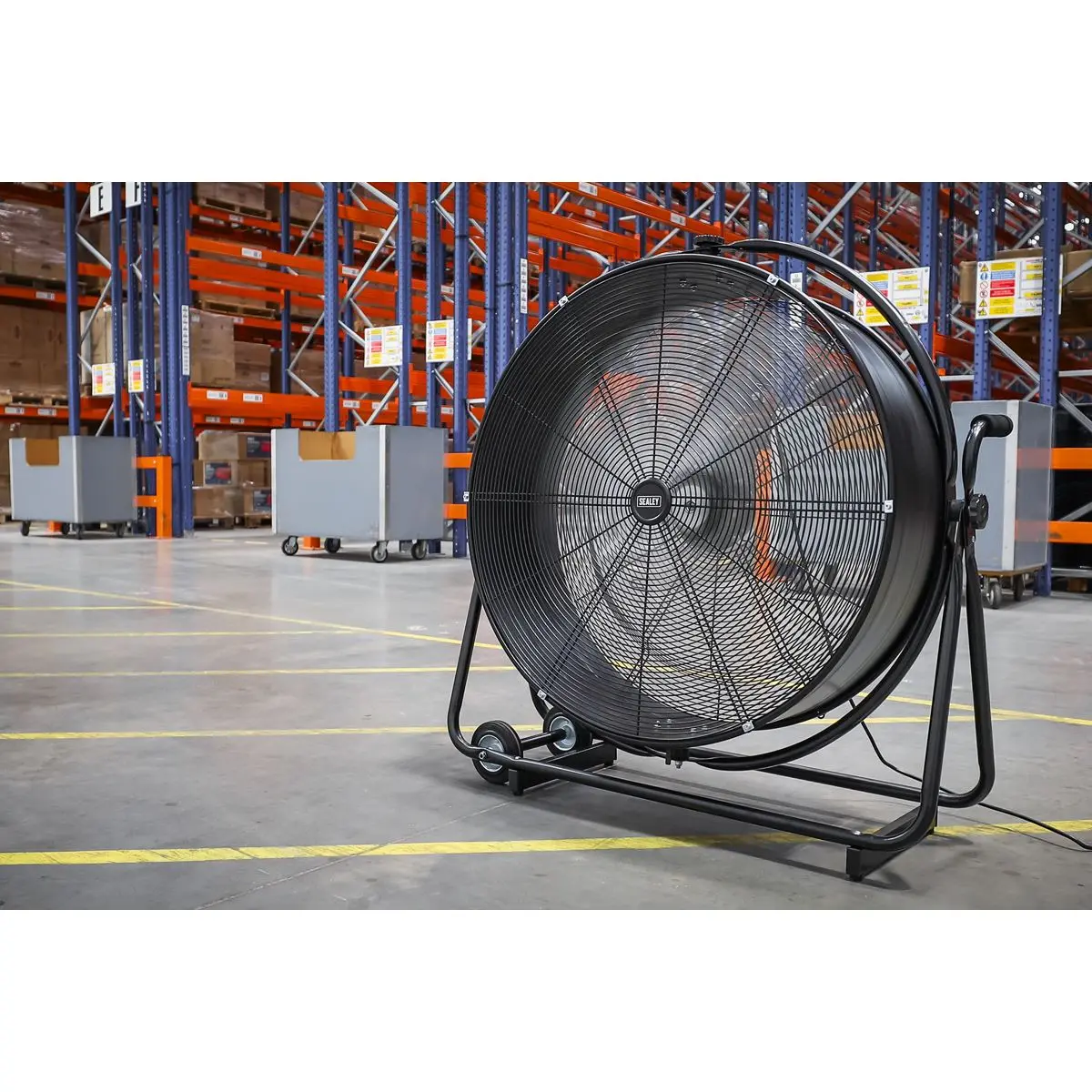

Suitable for industrial, commercial, agricultural, automotive workshop and showroom applications.

Specification:

• Model No HVF30S
• Brand: Sealey
• Current: 0.52A
• Fan Diameter: Ø760mm(30")
• Maximum Airflow: 283.4m³/min(10008cfm)
• Nett Weight: 23.04kg
• Power: 118.6W
• Maximum Fan Flow Rate (F): 283.4m³/min
• Fan Power Input (P): 118.6W
• Service Value (SV): 2.4(m³/min)/W
• Standby Power Consumption (Psb): 0.0W
• Fan Sound Power Level (Lwa): 78dB(A)
• Maximum Air Velocity (c): 2.2m/s
• Service Value: 2.4(m³/min)/W
• Speed Range: 800-900rpm

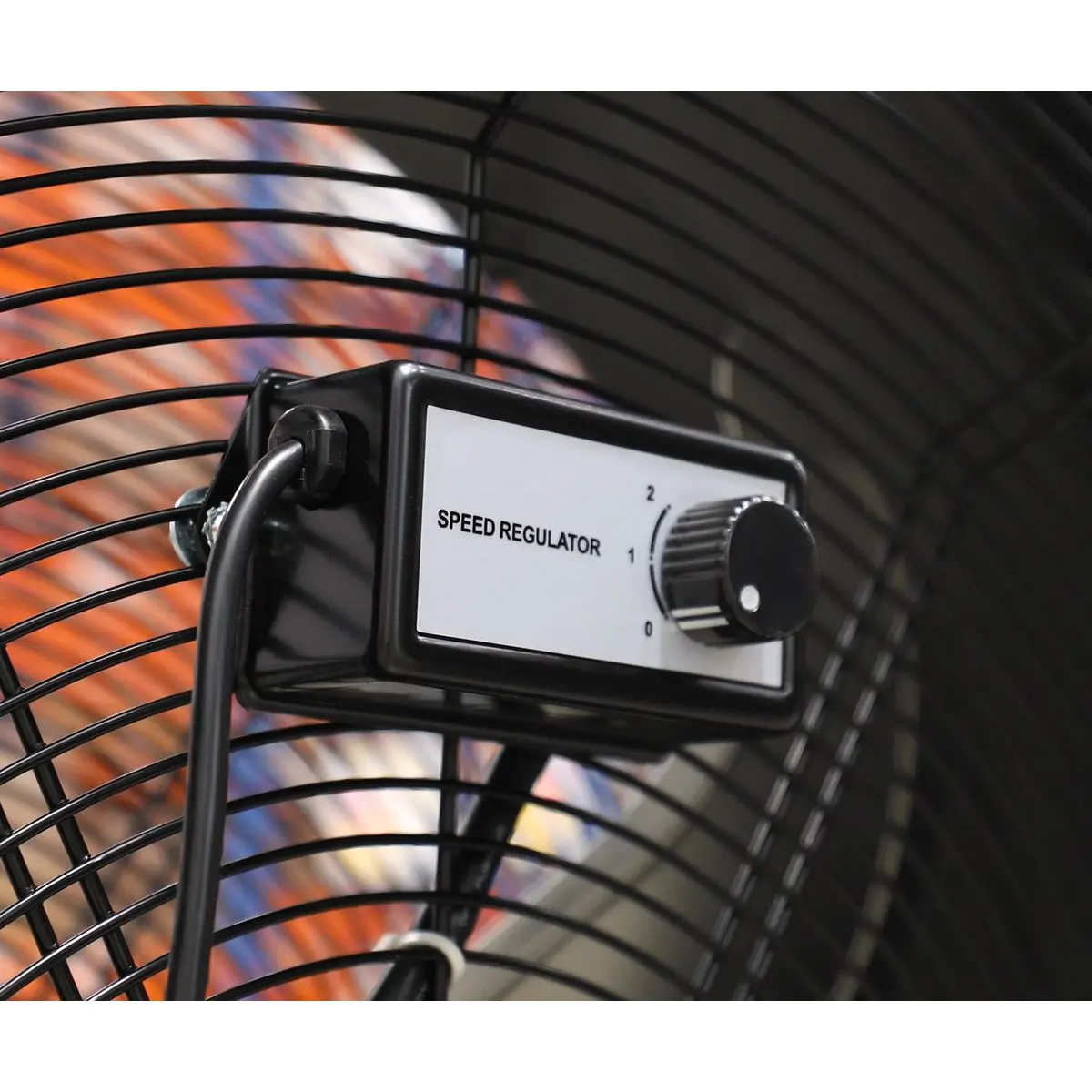

• Speeds: 2
• Supply: 230V

Product Guarantee: 1 Year
Catalogue Page: Page 1277

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
