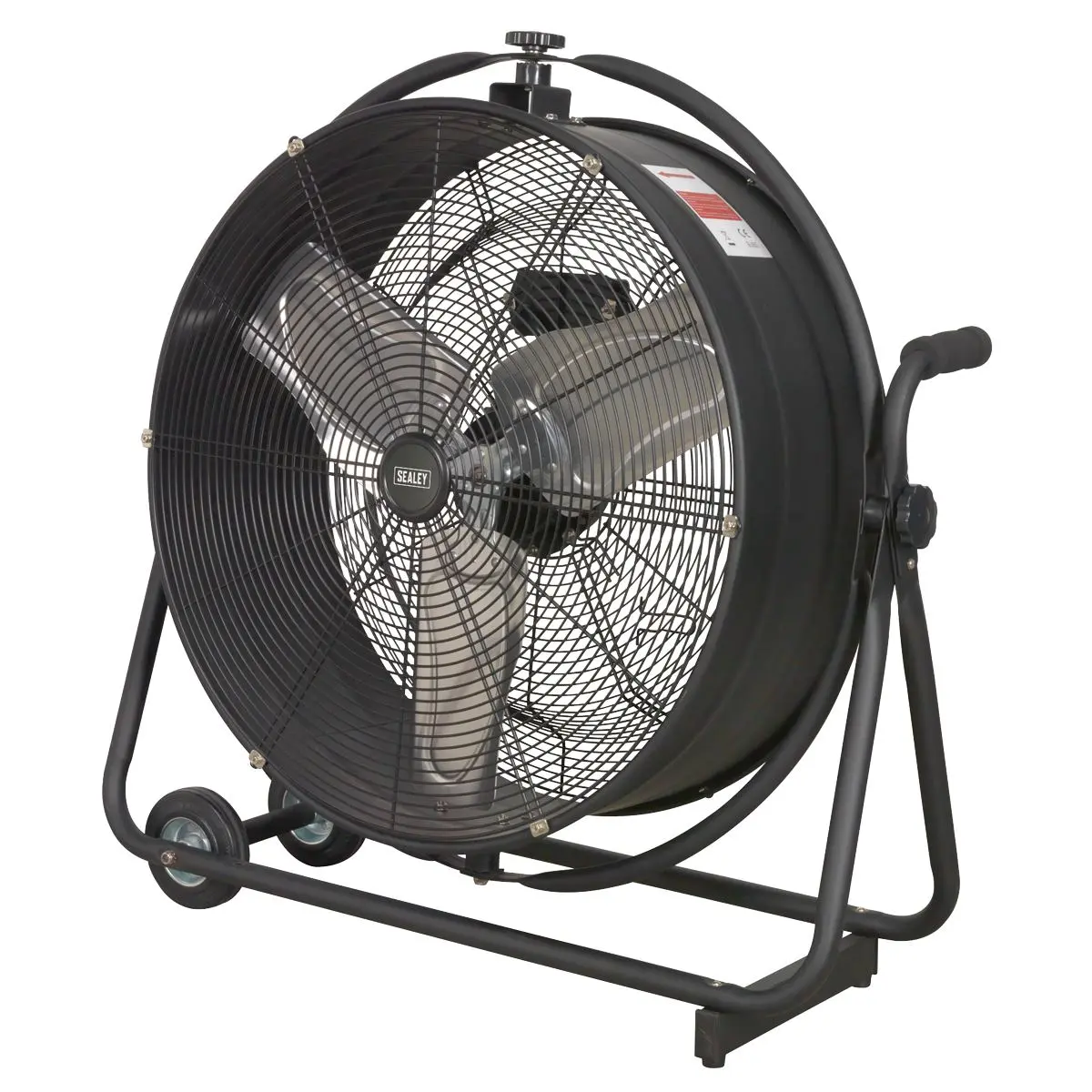

Sealey Industrial High Velocity Orbital Drum Fan 24" 230V

High velocity industrial 2-speed drum fan suitable for movement of huge volumes of air.

Robust unit with heavy-duty gauge steel casing, guard and frame.

Featuring a 360° tilt function allowing for the direction of airflow to be positioned anywhere on a 360° axis.

Carefully balanced and fully guarded blades provide safe operation.

Maximum Airflow: 155.3m³/min(5484cfm).

Fitted with 3-pin plug.

Suitable for industrial, commercial, agricultural, automotive workshop and showroom applications.

Specification:

• Model No HVF24S
• Brand: Sealey
• Current: 0.52A
• Fan Diameter: Ø610mm(24")
• Maximum Airflow: 155.3m³/min(5484cfm)
• Nett Weight: 17.11kg
• Power: 116.32W
• Maximum Fan Flow Rate (F): 155.3m³/min
• Fan Power Input (P): 116.3 W
• Service Value (SV): 1.34(m³/min)/W
• Standby Power Consumption (Psb): 0.0 W
• Fan Sound Power Level (Lwa): 84 dB(A)
• Maximum Air Velocity (c): 3.7m/sec
• Speed Range: 1100-1350rpm
• Speeds: 2
• Supply: 230V

Product Guarantee: 1 Year
Catalogue Page: Page 1277
