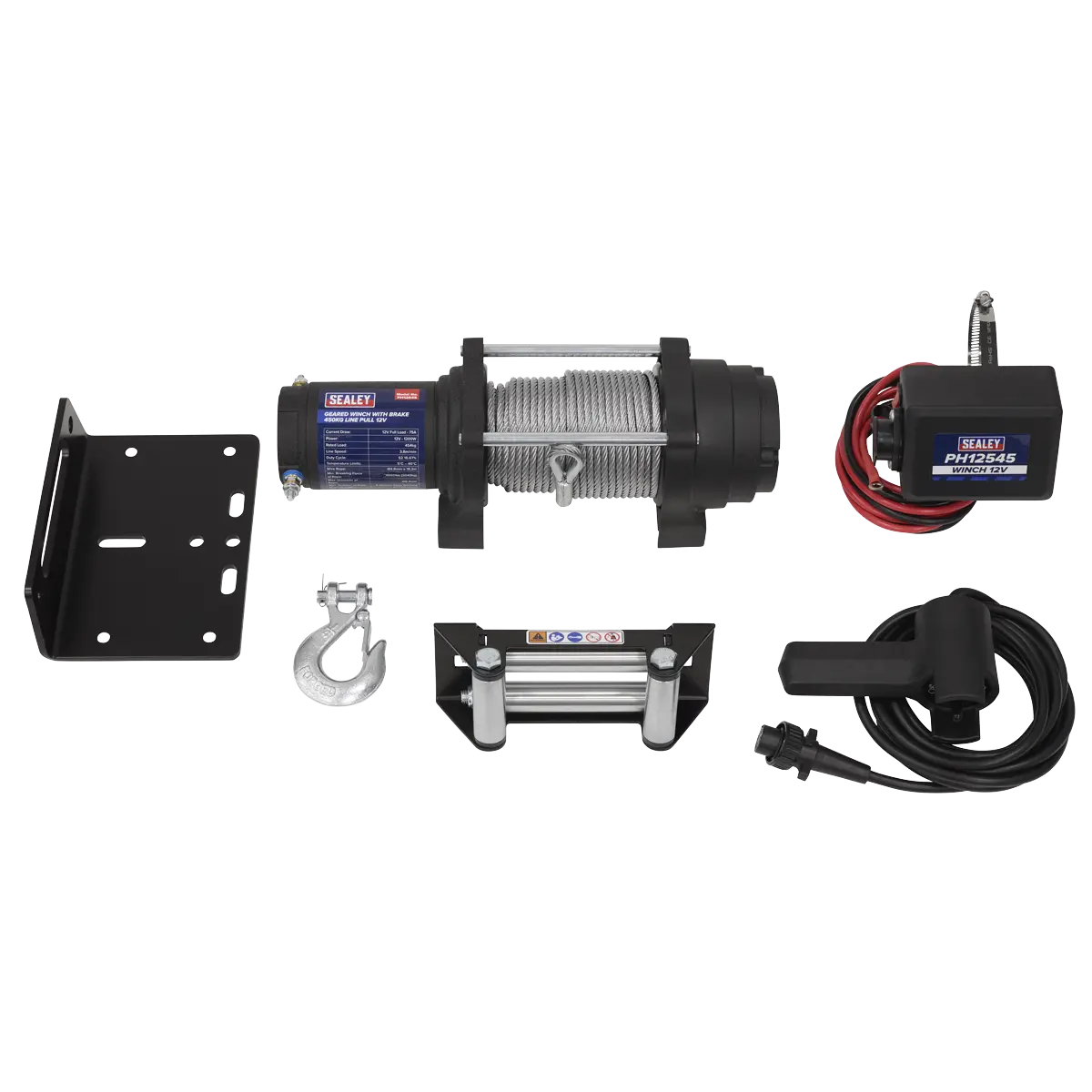

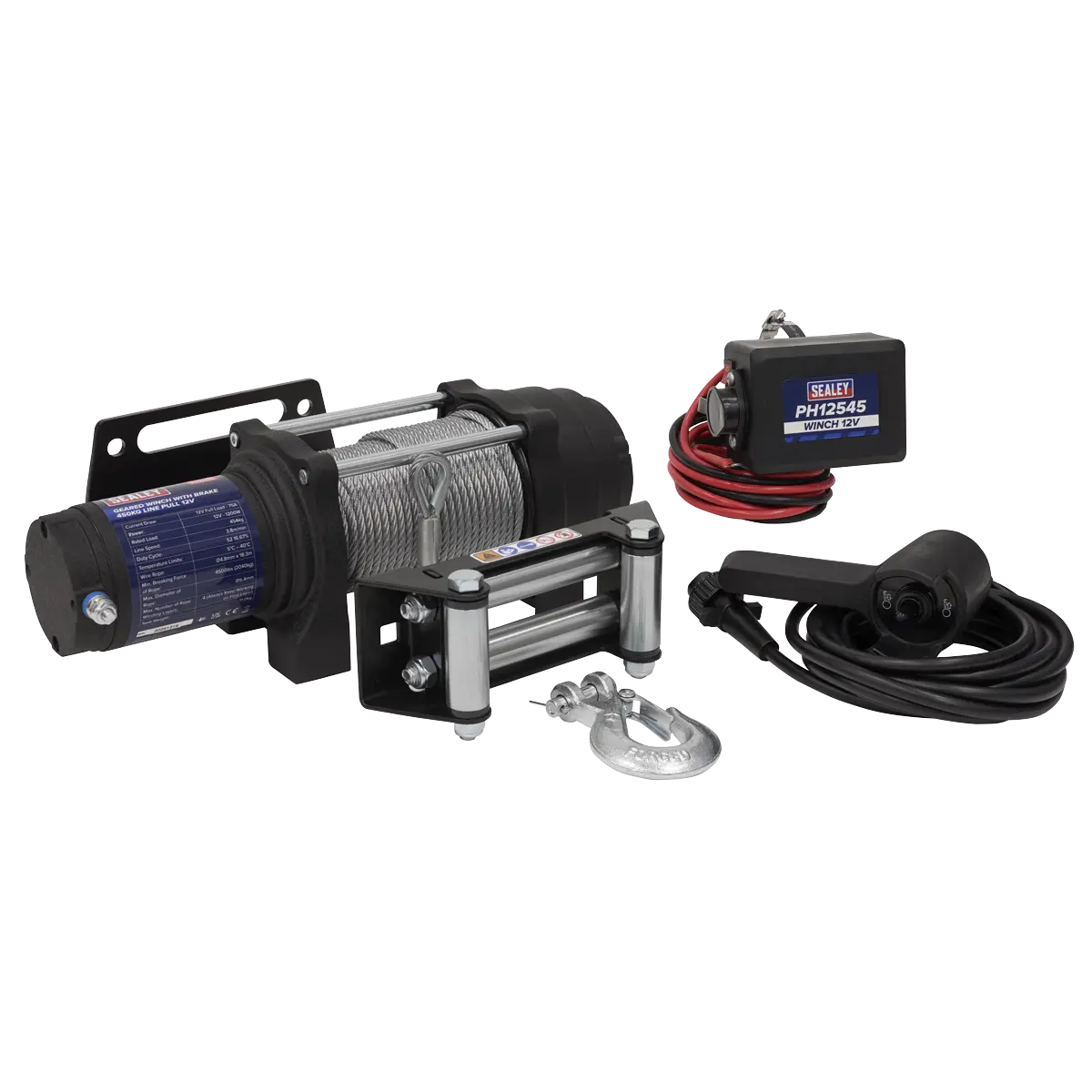

Sealey Geared Winch with Brake 450kg Line Pull 12V

REINFORCED - Steel drum is reinforced to make the product strong and durable.

WEATHERPROOF - Rated IP68 this winch will withstand any weather conditions.

3-STAGE PLANETARY GEARS - Increased pull generated by the gear train.

2-BRAKE SYSTEM - Mechanical cone brake and a permanent motor dynamic brake work together to keep the load stable and protect the user.

WIRE LENGTH - 18m.

MOTOR - Permanent magnet motor 12V - 1.6HP/1.2KW.

MAXIMUM WEIGHT - 450kg(1000lbs).

Specification:

• Model No PH12545
• Brand: Sealey
• Current Draw: 12V Full Load - 75A
• Gear Ratio: 140:1
• Line Pull*: 454kg 1000lbs
• Line Speed*: Full Load - 3.8m/min
• Motor Power: 12V - 1200W
• Nett Weight: 11kg
• Rated Capacity: 454kg 1000lbs
• Specification:
• Min. Breaking Rope Force: 4500lbs (2040kg)
• Max. Rope Diameter: Ø5.4mm
• Max. No. of Rope Winding Layers: 4 (Always Keep Working on First Layer)
• Wire Rope Diameter: Ø4.8mm
• Wire Rope Length: 18.3m

Product Guarantee: 1 Year
Catalogue Page: Page

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
