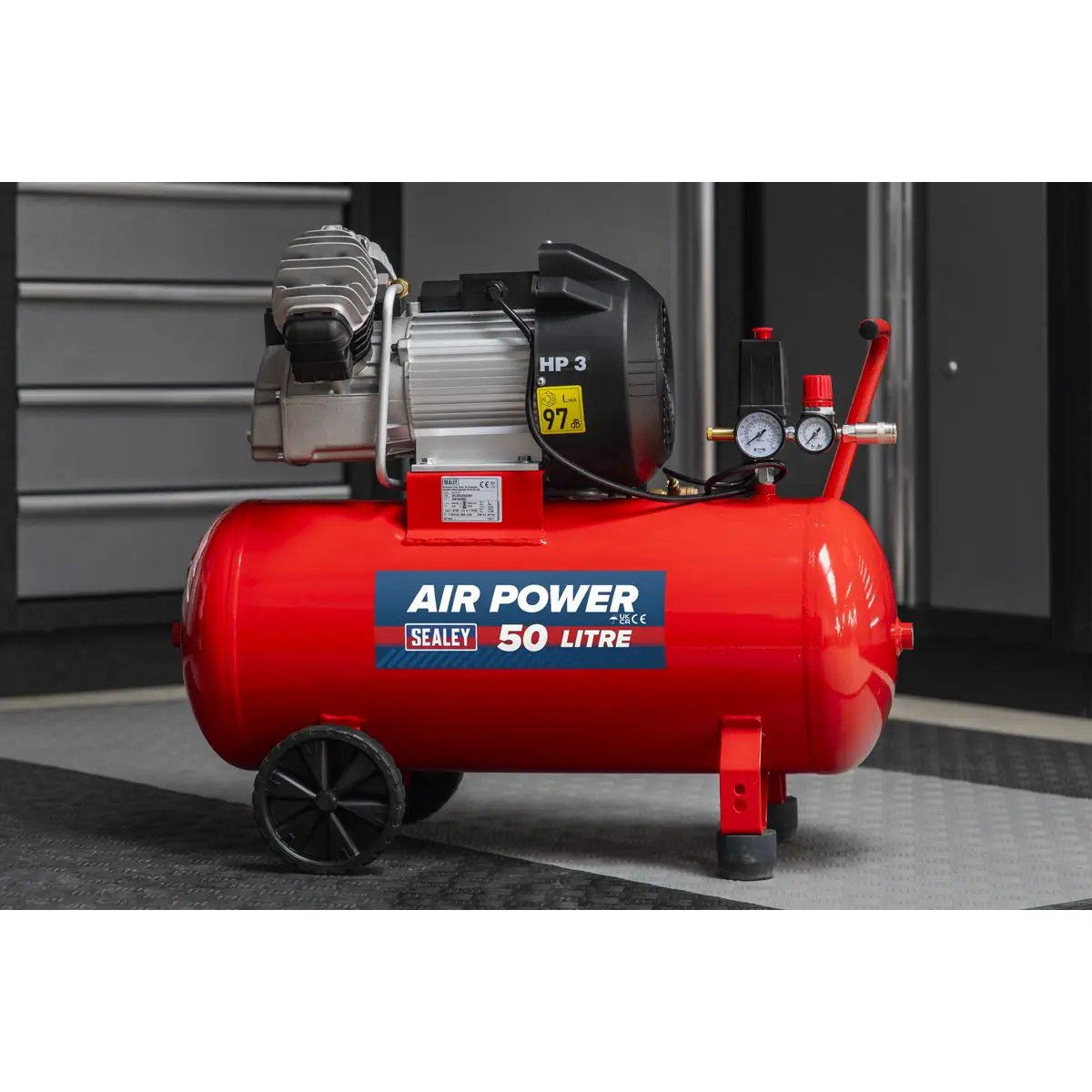

Sealey 50L V-Twin Direct Drive Air Compressor 3hp

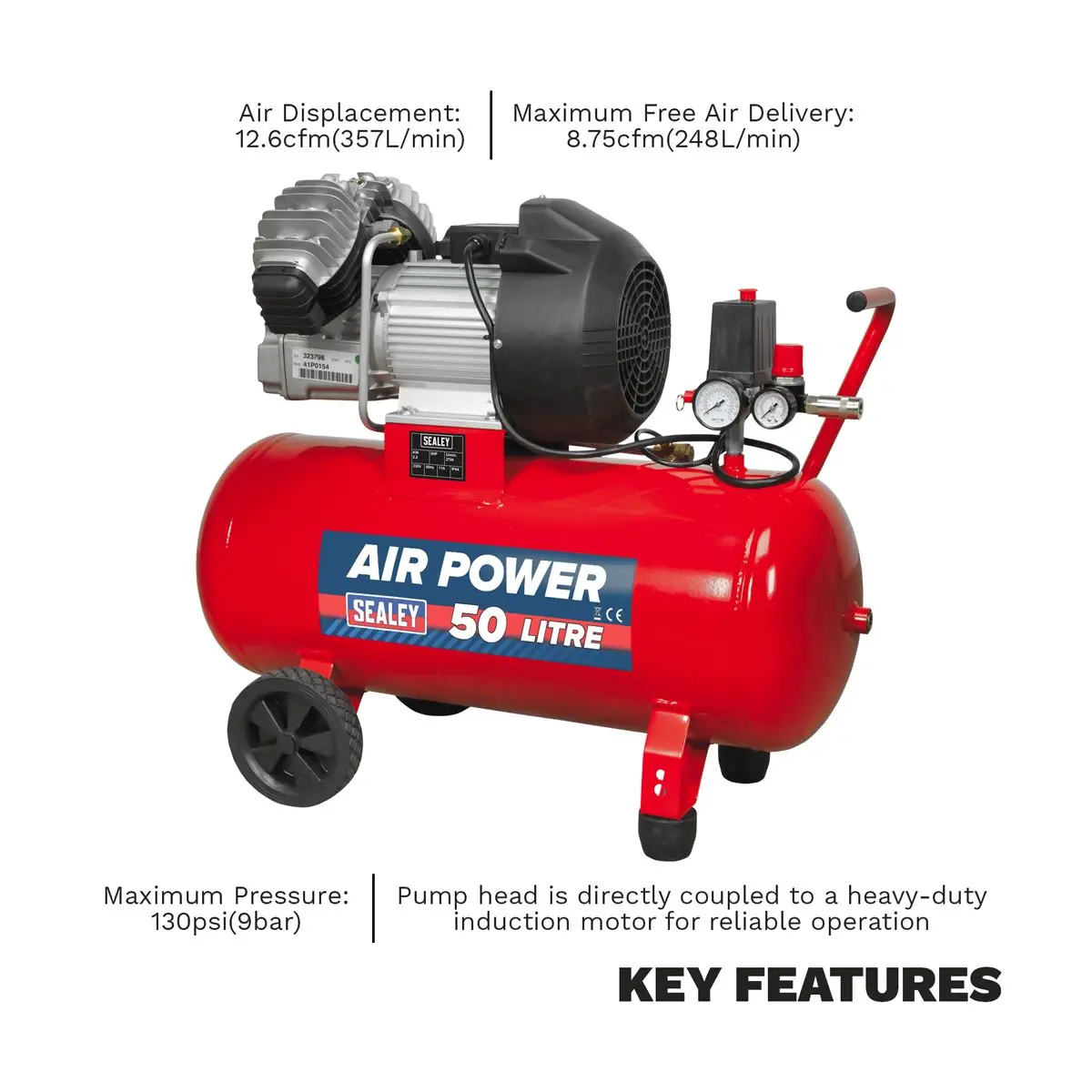

Air Displacement: 12.6cfm(357L/min).

Maximum Free Air Delivery: 8.75cfm(248L/min).

Maximum Pressure: 130psi(9bar).

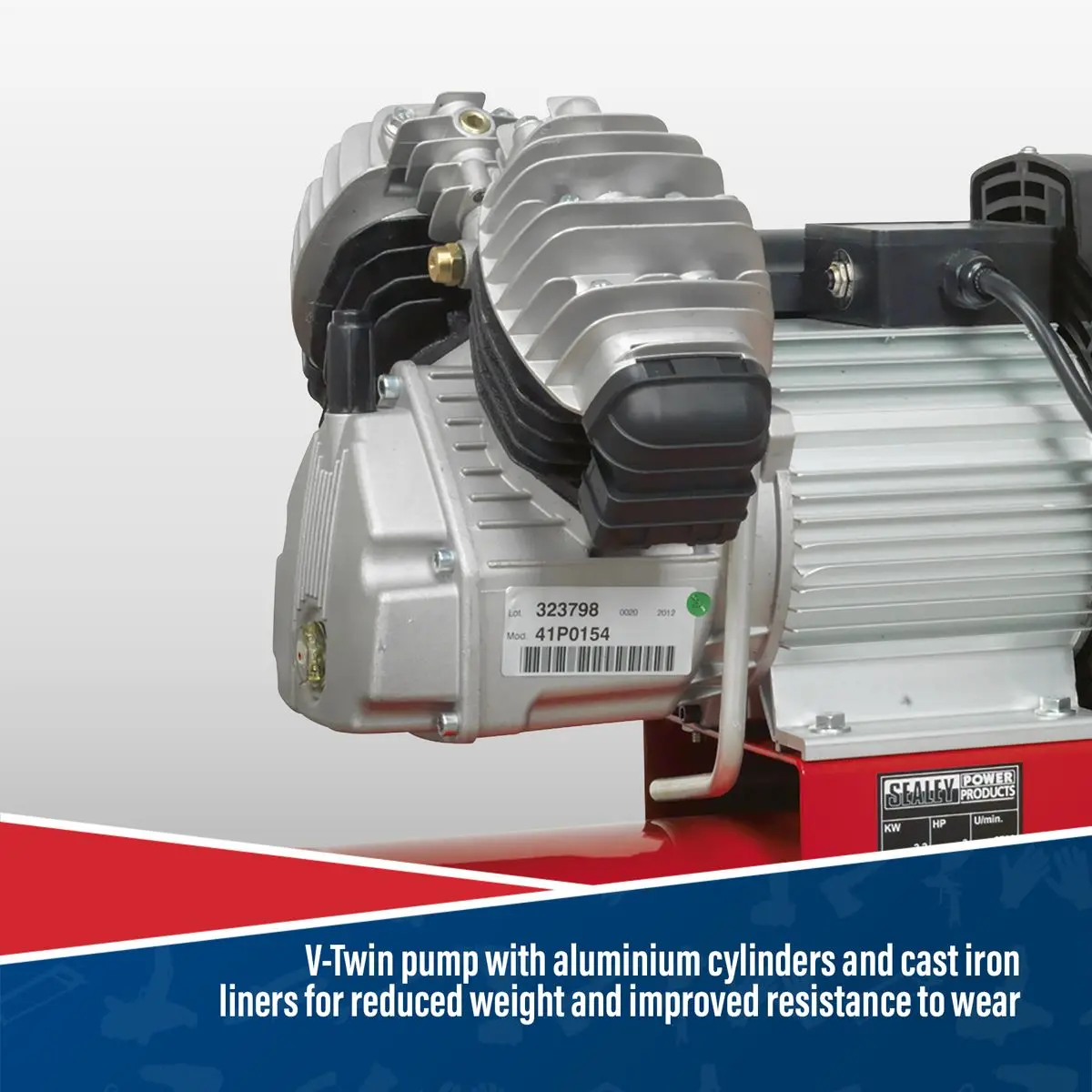

V-Twin pump with aluminium cylinders and cast iron liners for reduced weight and improved resistance to wear.

Suitable for general-purpose workshop applications.

Pump directly coupled to a heavy-duty induction motor for reliable operation.

Fitted with fully automatic pressure cut-out switch, air regulator and pressure gauges for tank and supply.

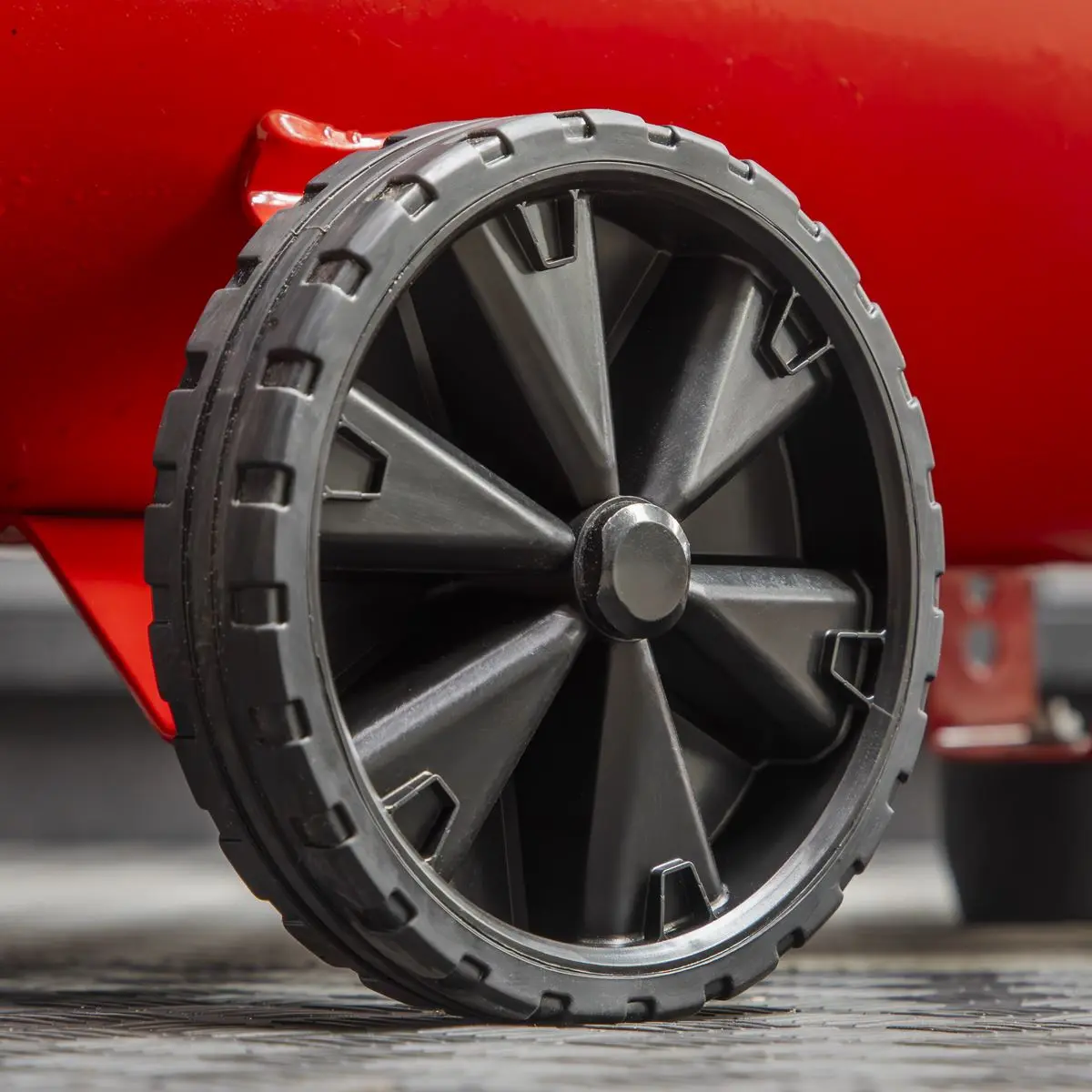

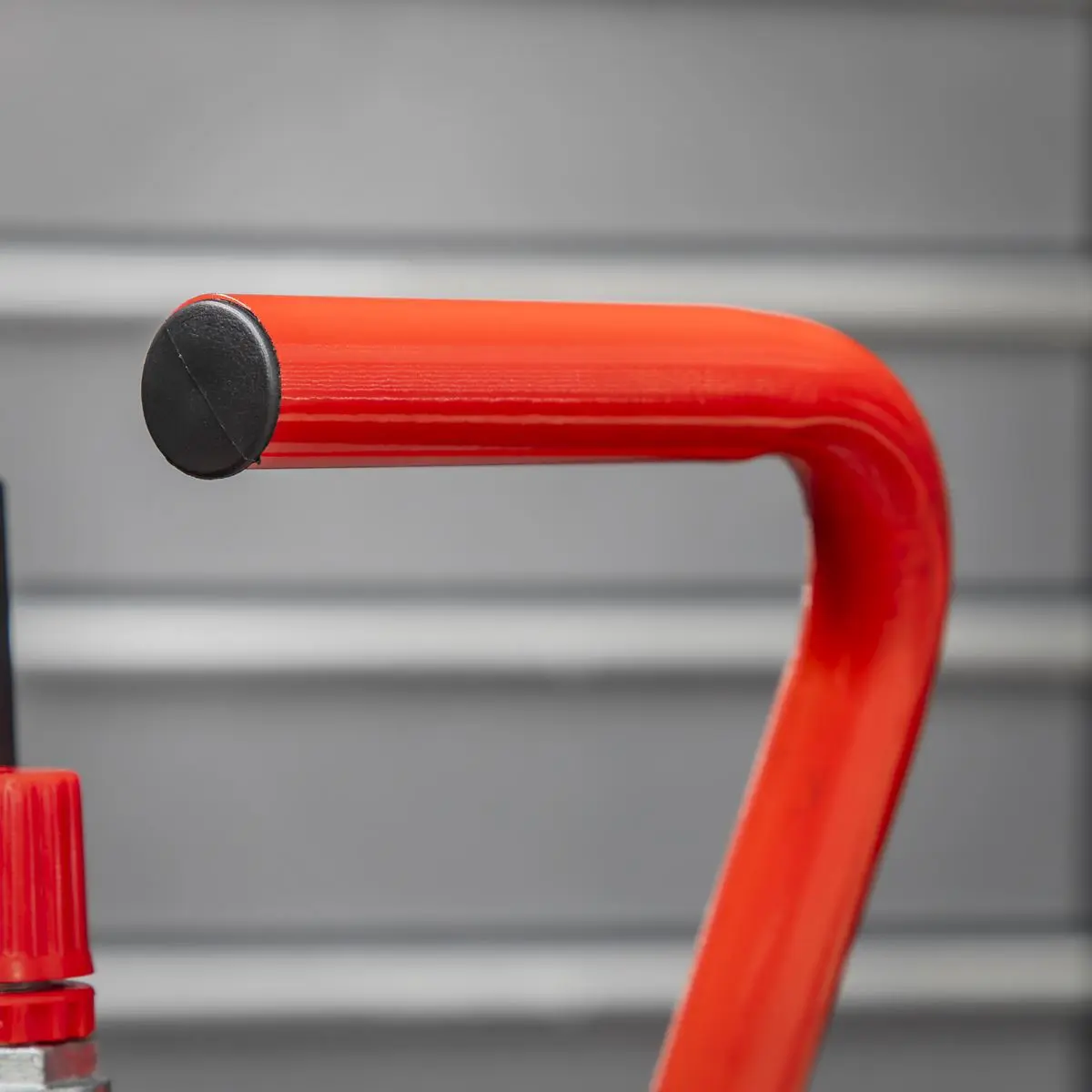

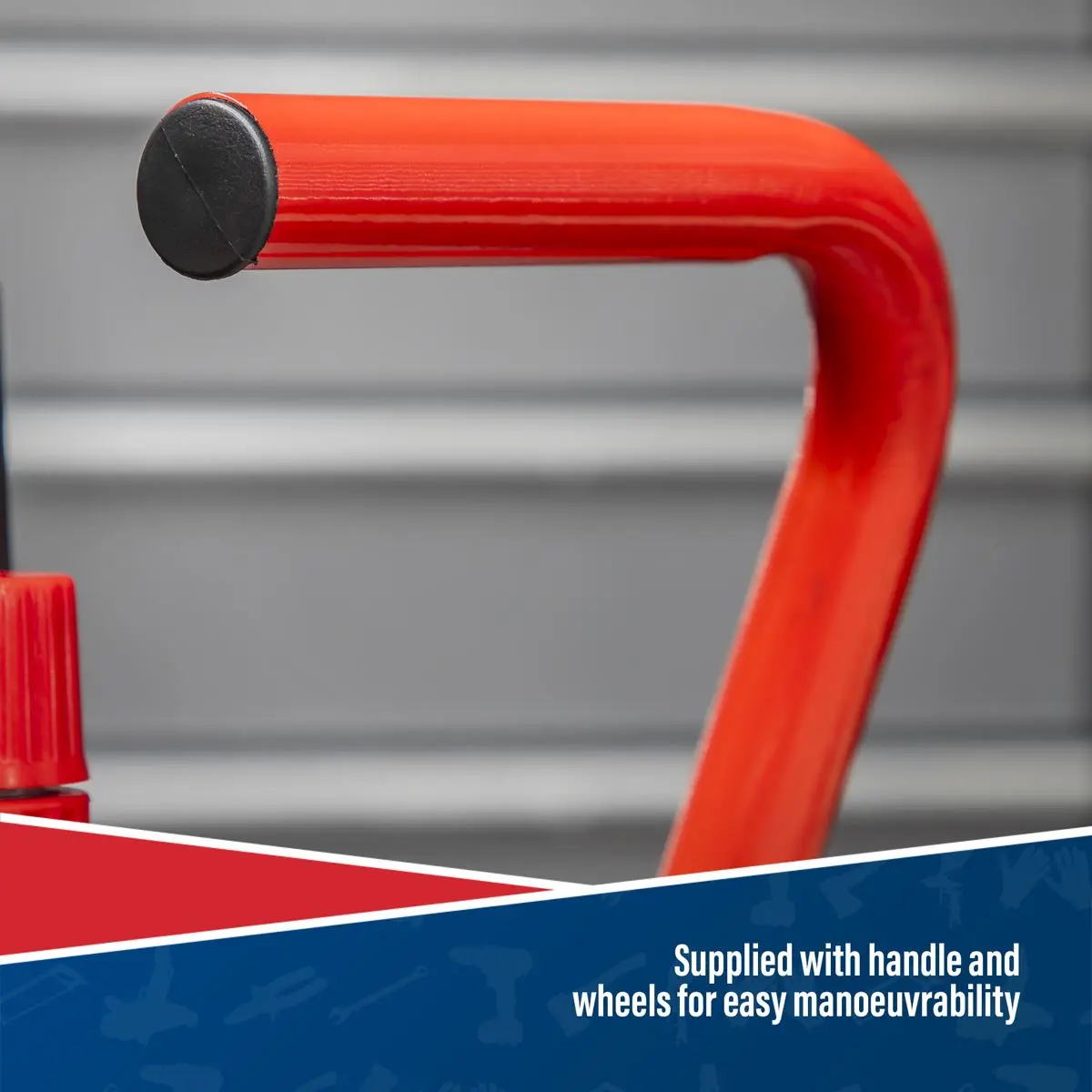

Supplied with handle and wheels for easy manoeuvrability.

Fitted with 3-pin plug.

Specification:

• Model No SAC05030
• Air Displacement cfm(L/min): 12.6(357)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 8.75(248)
• Maximum Pressure: 130psi(9bar)
• Minimum Rated Supply: 13A
• Motor Output: 3hp
• Nett Weight: 37.0kg
• Outlet: Quick Release Coupling
• Phase: 1ph
• Receiver Capacity: 50L
• Size (W x D x H): 810 x 420 x 620mm
• Supply: 230V/13A

Product Guarantee: 1 Year
Catalogue Page: Page 1178

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
