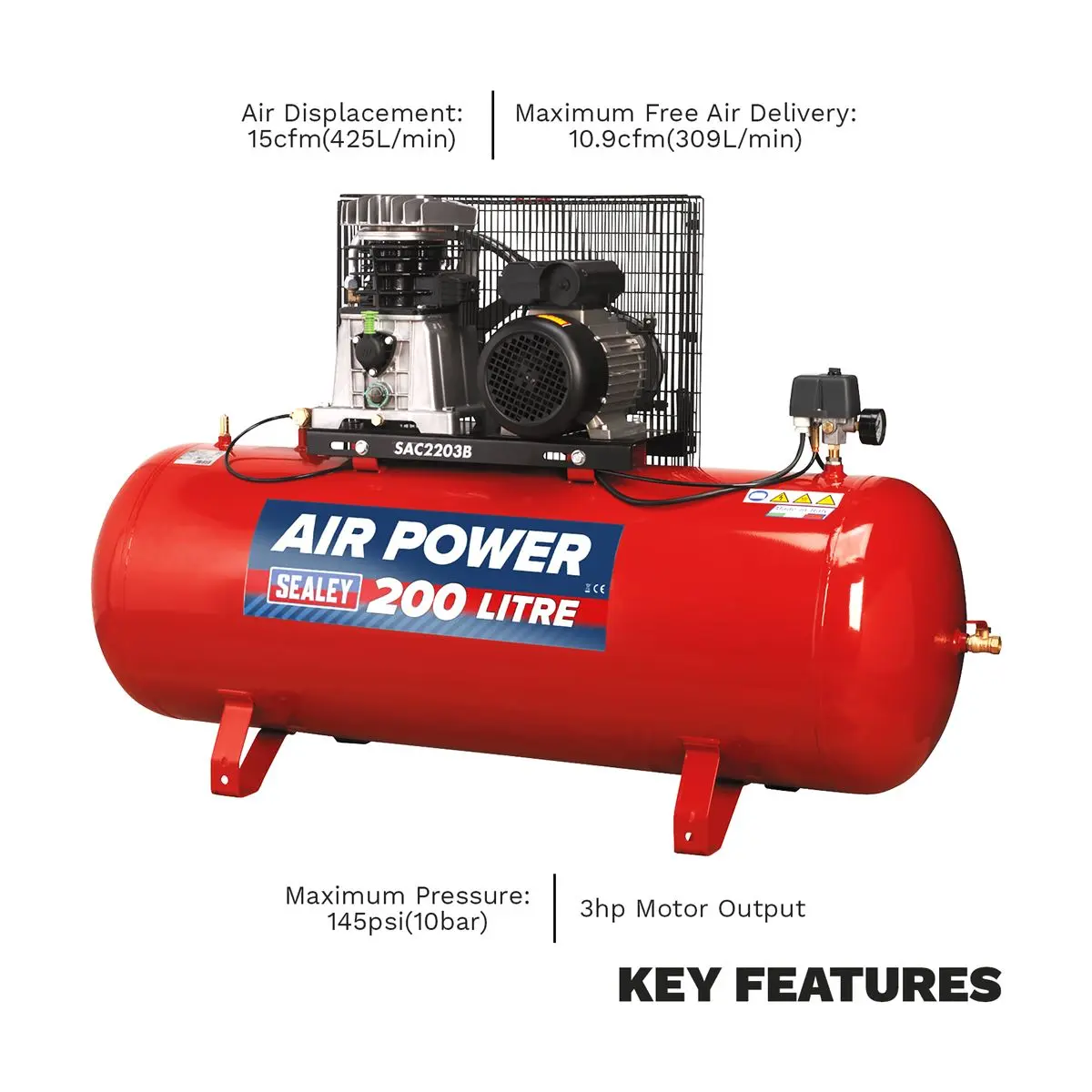

Sealey 200L Belt Drive Air Compressor with Cast Cylinders 3hp

Air Displacement: 15cfm(425L/min).

Maximum Free Air Delivery: 10.9cfm(309L/min).

Maximum Pressure: 145psi(10bar).

Our top-of-the-range single phase 200L compressor, this unit is suitable for the professional workshop and is fitted with a genuine 3hp motor.

Twin capacitors and a centrifugal switch aid trouble-free start-up on a good 13A supply.

However on this model we recommend fitting a 16A plug and connecting to a 20A supply protected by a type-C circuit breaker for easier start-up.

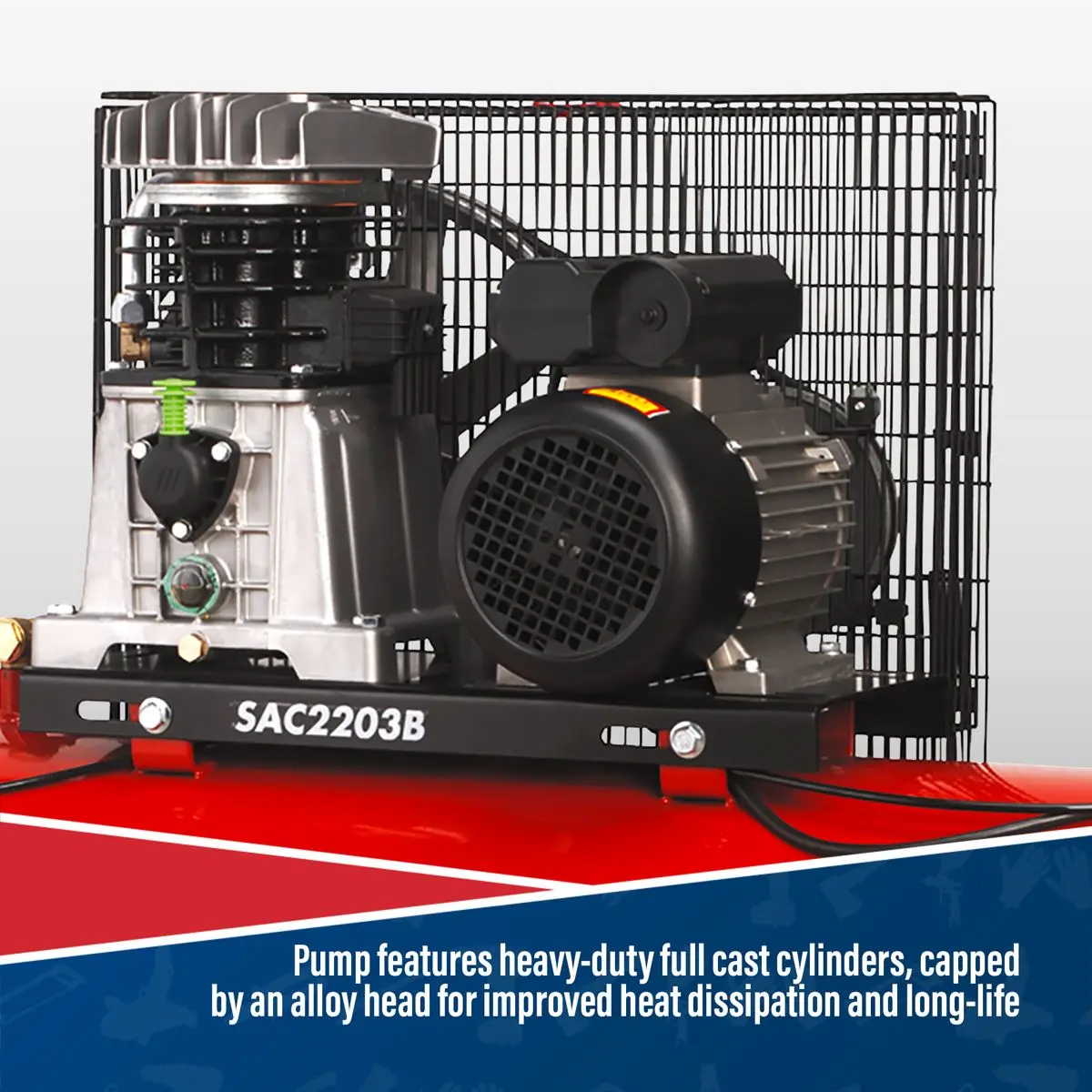

Pump features heavy-duty full cast cylinders, capped by an alloy head for improved heat dissipation and long-life.

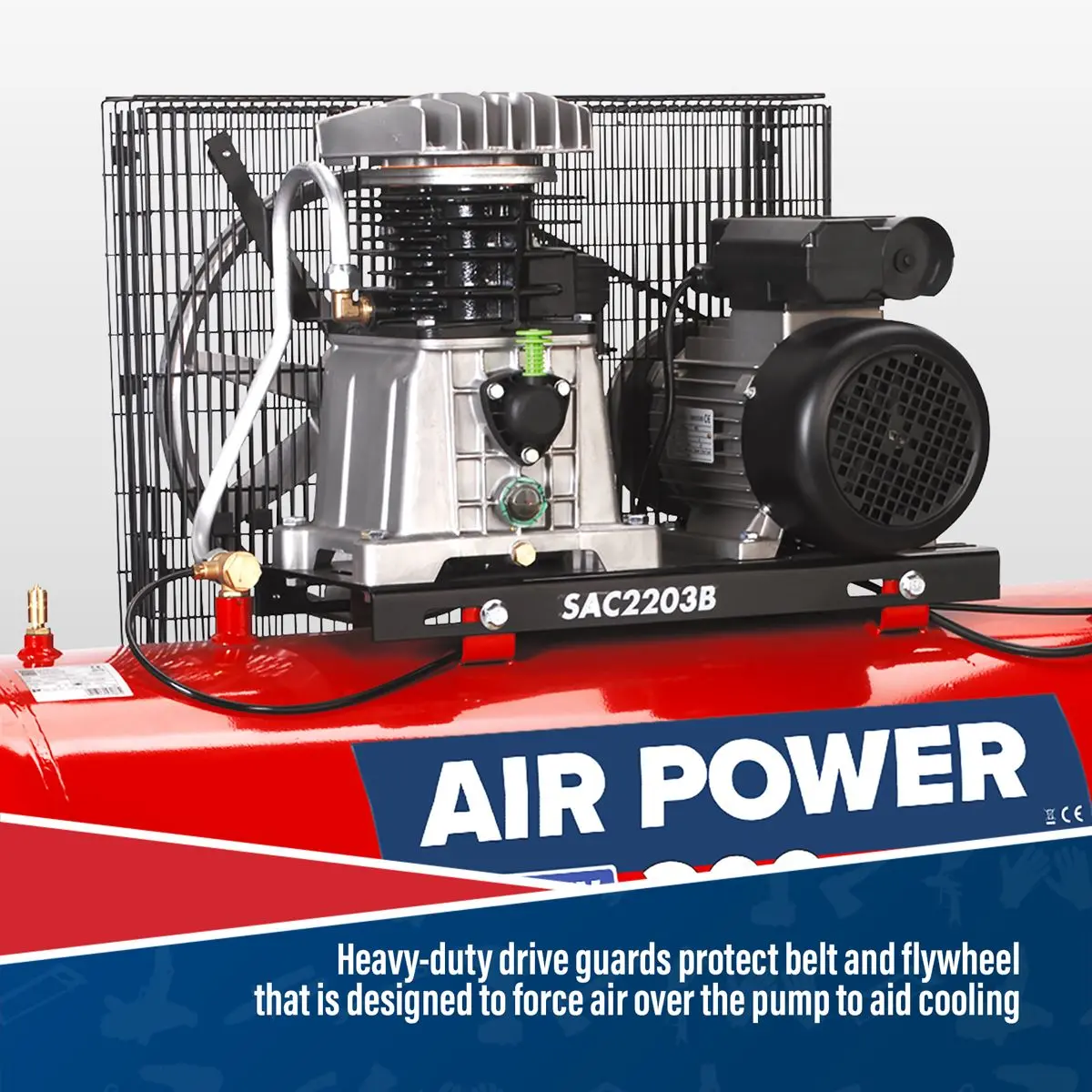

Heavy-duty drive guard protects belt and flywheel that is designed to force air over the pump to aid cooling.

Supplied with full CE certification, test certificates and operating/maintenance manual.

This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No SAC2203B
• Air Displacement cfm(L/min): 15(425)
• Brand: Sealey
• Maximum Free Air Delivery cfm(L/min): 10.9(309)
• Maximum Pressure: 145psi(10bar)
• Minimum Rated Supply: 16A
• Motor Output: 3hp
• Nett Weight: 97kg
• Oil Capacity: 0.72L
• Outlet: 1/2"BSP Female Tap
• Phase: 1ph
• Receiver Capacity: 200L
• Size (W x D x H): 1440 x 440 x 900mm
• Speed: 1280rpm
• Supply: 230V/16A

Product Guarantee: 1 Year
Catalogue Page: Page 777

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
