Sealey Air Operated Coil Spring Compressor 1000kg

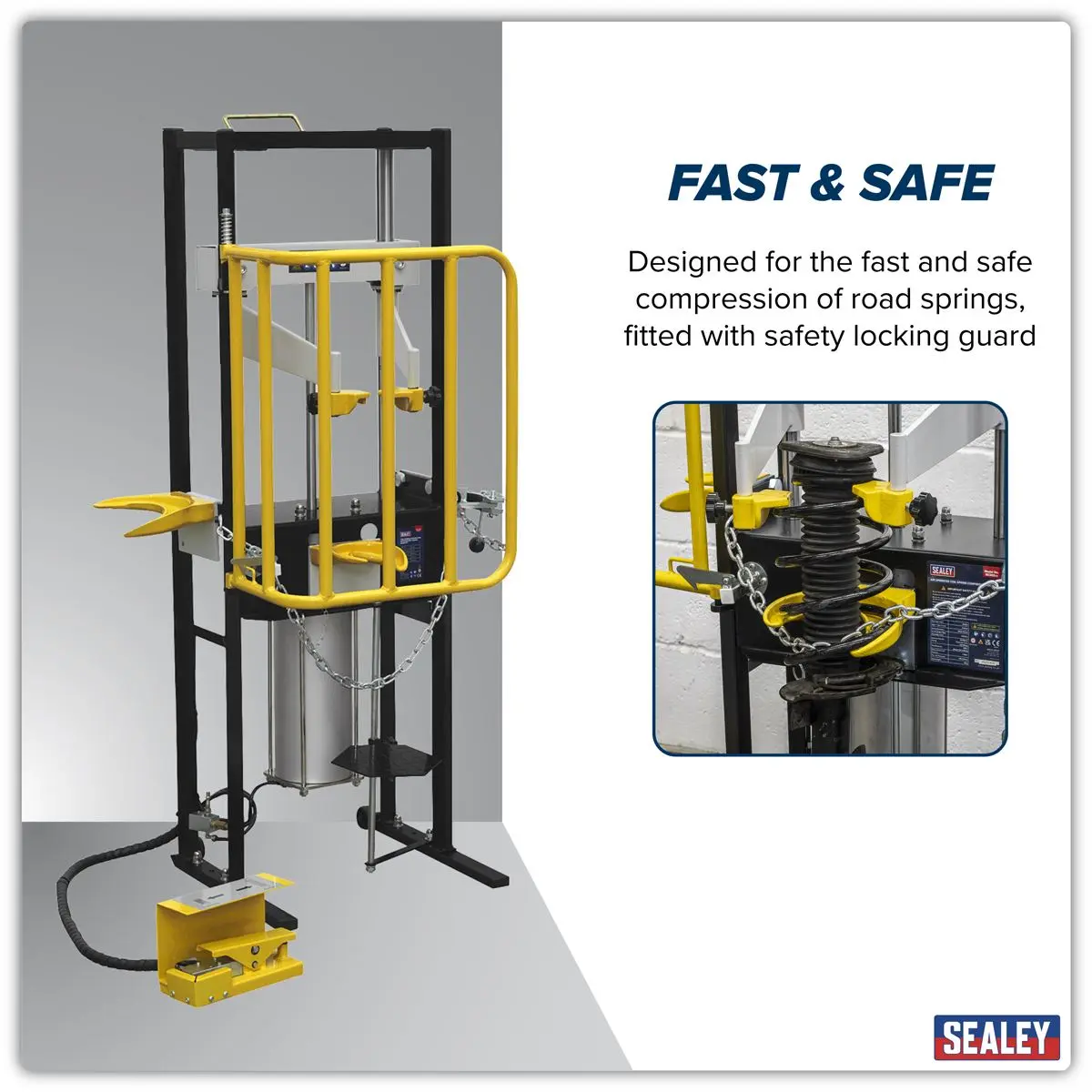

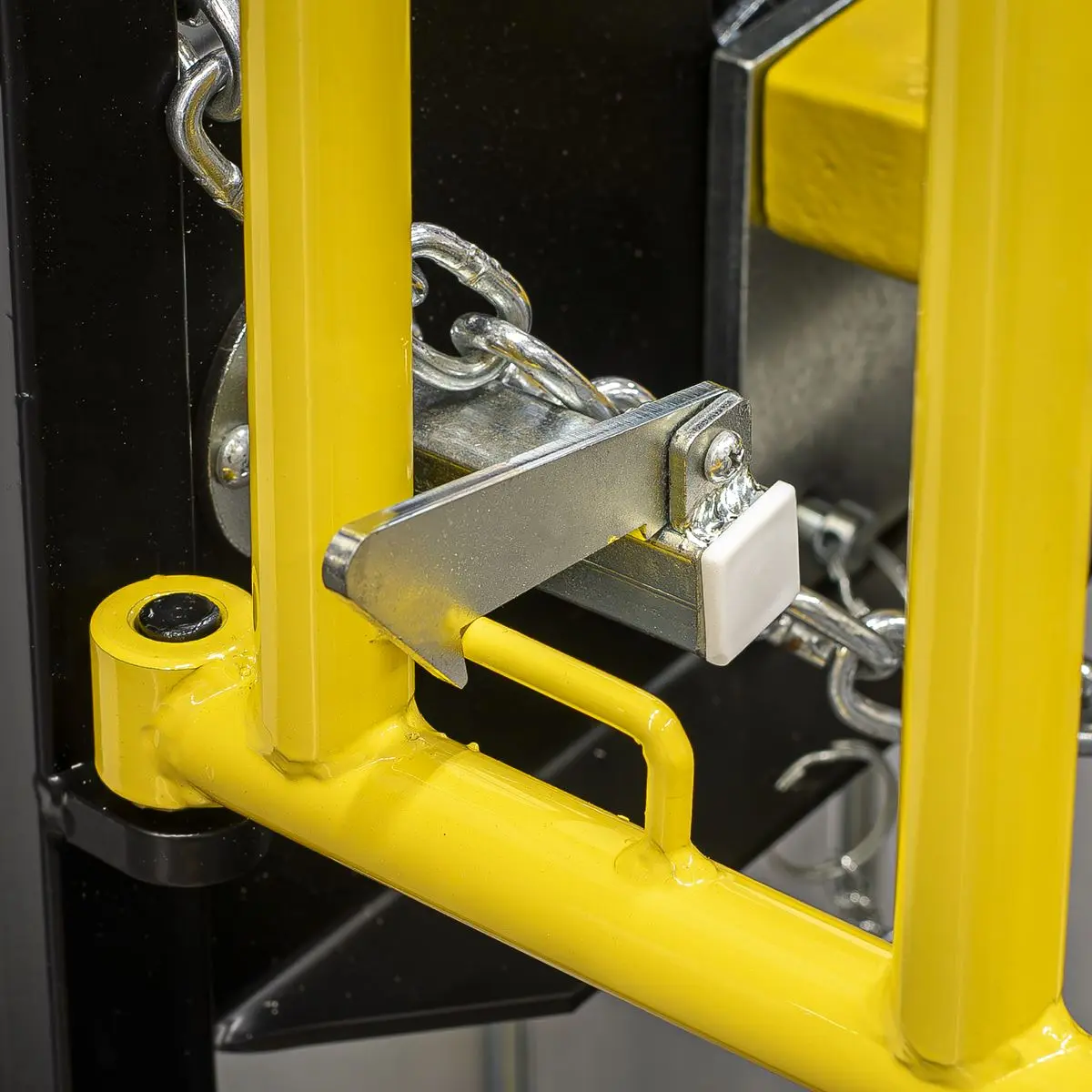

FAST AND SAFE – Designed for the fast and safe compression of road springs, fitted with safety locking guard.

1000KG CAPACITY – Air operated unit with 1000kg capacity.

INTERCHANGABLE YOKES – Supplied with two interchangeable plastic-coated yokes and a suspension strut clamp.

WIDE USE OF APPLICATIONS – Fits a wide range of spring configurations and diameters.

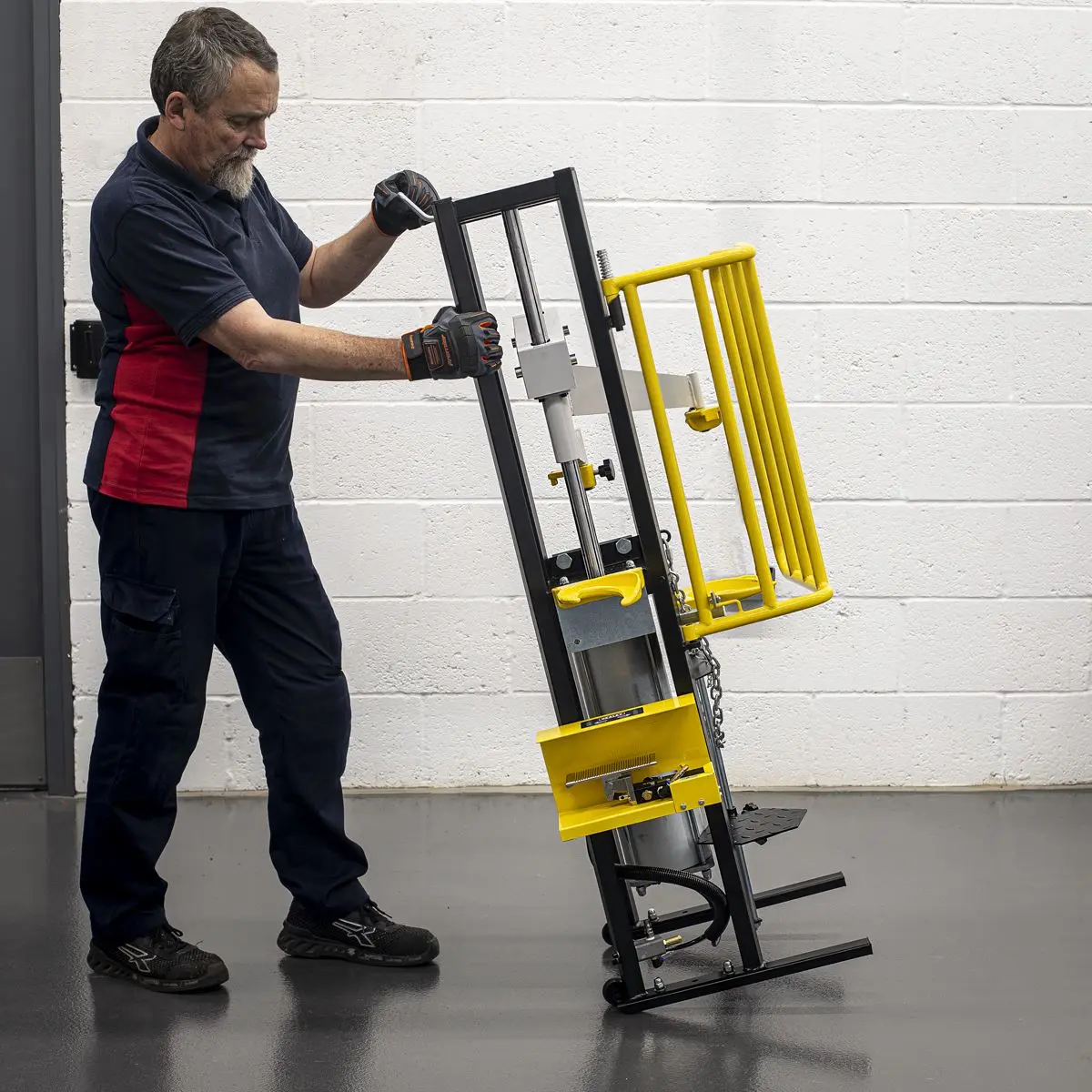

FEATURES STRUT LOCATING PLATFORM – For easy movement of the suspension strut to avoid unnecessary lifting.

Specification:

• Model No RE300
• Brand: Sealey
• Nett Weight: 63.4kg
• Maximum Load: 1000kg
• Upper Yoke Travel: 420mm
• Spring Diameter: Ø102-165mm
• Actuation: Foot Pedal
• Maximum Air Pressure: 116psi(8bar)
• Essential Max. Allowable Limit: 8bar
• Essential Min. Allowable Limit: 6.5bar
({IF["Nominal Size for Piping: Inner: Ø6mm Outer: Ø8mm"!=""]})
• Nominal Size for Piping: Inner: Ø6mm Outer: Ø8mm
({ENDIF})
• Safety Device Set Pressure: 8bar
• Output of the Pressure Equipment: 6.5-8bar

Product Guarantee: 1 Year
Catalogue Page: Page 526

Downloadable Files:

• Instructions: View Here
• Parts Diagram: View Here
