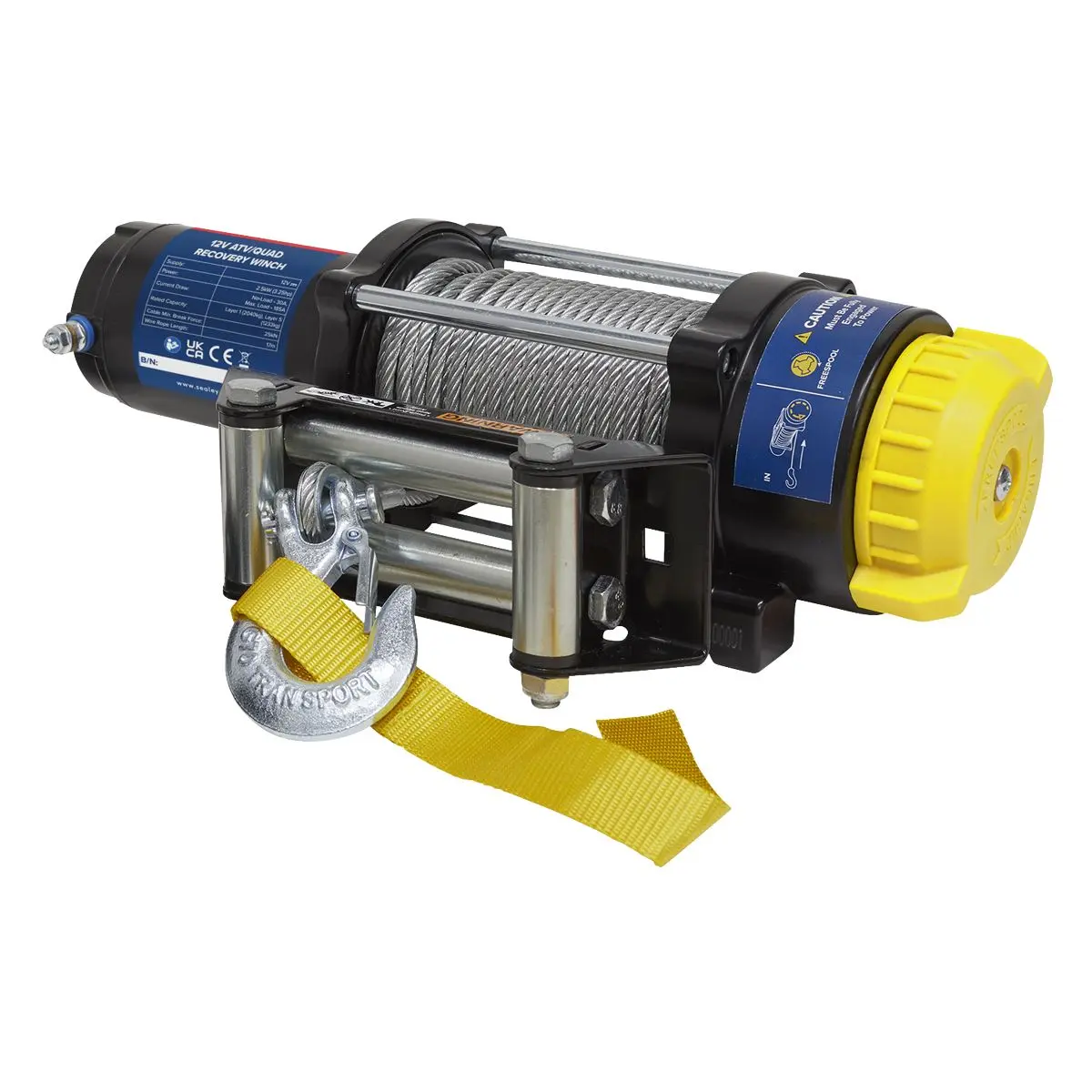

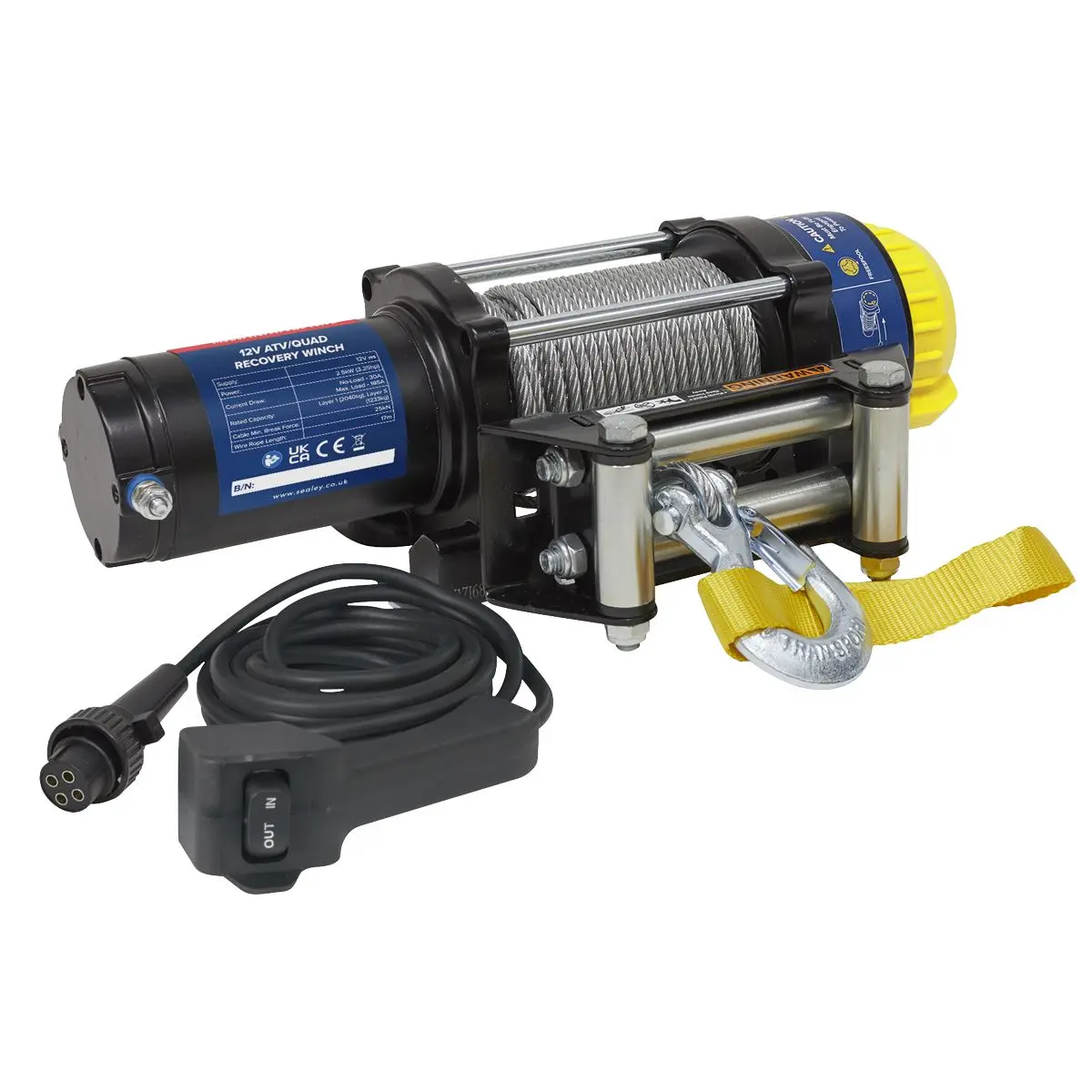

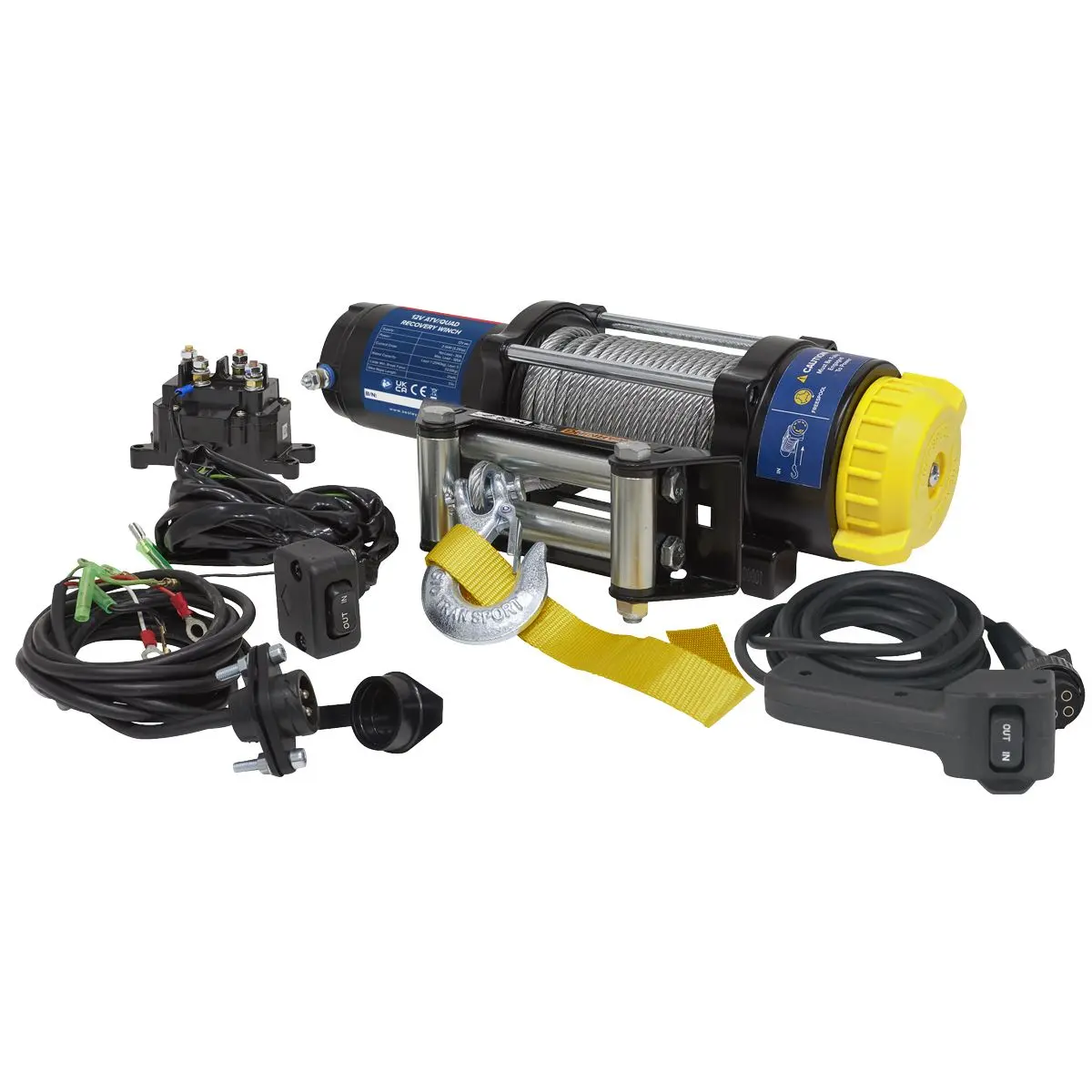

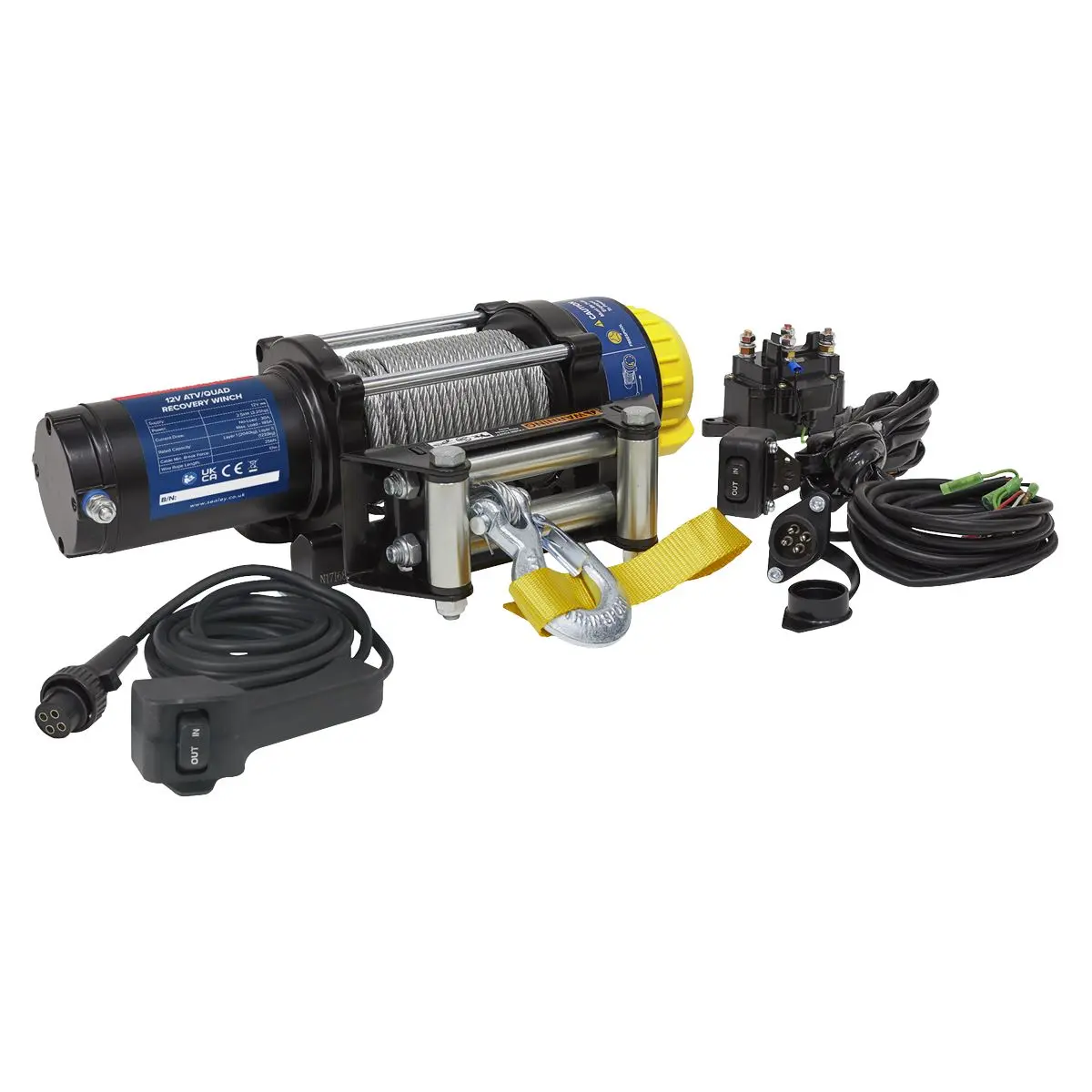

Sealey ATV/Quad Recovery Winch 2040kg (4500lb) Line Pull 12V

Suitable for ATV and quad bike mounting, these high-speed winches offer a combination of performance with durability.

High power 2.5kW (3.25hp) 12V DC permanent magnet type motor gives first class pulling power.

All-metal chassis for long-life and low maintenance.

Motor can easily be rotated 90° to meet various wiring and mounting requirements.

Patented unique automatic spring brake, reliable in full load operation.

High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.

Cable Length: 17m.

Line Pull*: 2040kg(4500lb).

IP67 rated.

Gear Ratio: 180:1. *Performance quoted at first layer of cable on drum.

Specification:

• Model No ATV2040
• Brand: Sealey
• Consumable Parts: ATV2040.WR - Wire Rope (Ø5.4mm x 17m) for ATV2040, ATV2040.DR - Dyneema Rope (Ø5.5mm x 17m) for ATV2040
• Current Draw: No-Load - 30A, Maximum Load - 185A
• Gear Ratio: 180:1
• Line Pull*: 2040kg(4500lb)
• Line Speed*: No Load - 4.5m/min, Maximum Load - 1.3m/min
• Motor Power: 2.5kW(3.25hp)
• Nett Weight: 13.9kg
• Note: *Performance quoted at first layer of cable on drum
• Rated Capacity: Layer 1: 2043kg, Layer 4: 1234kg
• Supply: 12V
• Wire Rope Diameter: 5.4mm
• Wire Rope Length: 17m

Product Guarantee: 1 Year
Catalogue Page: Page 1458
