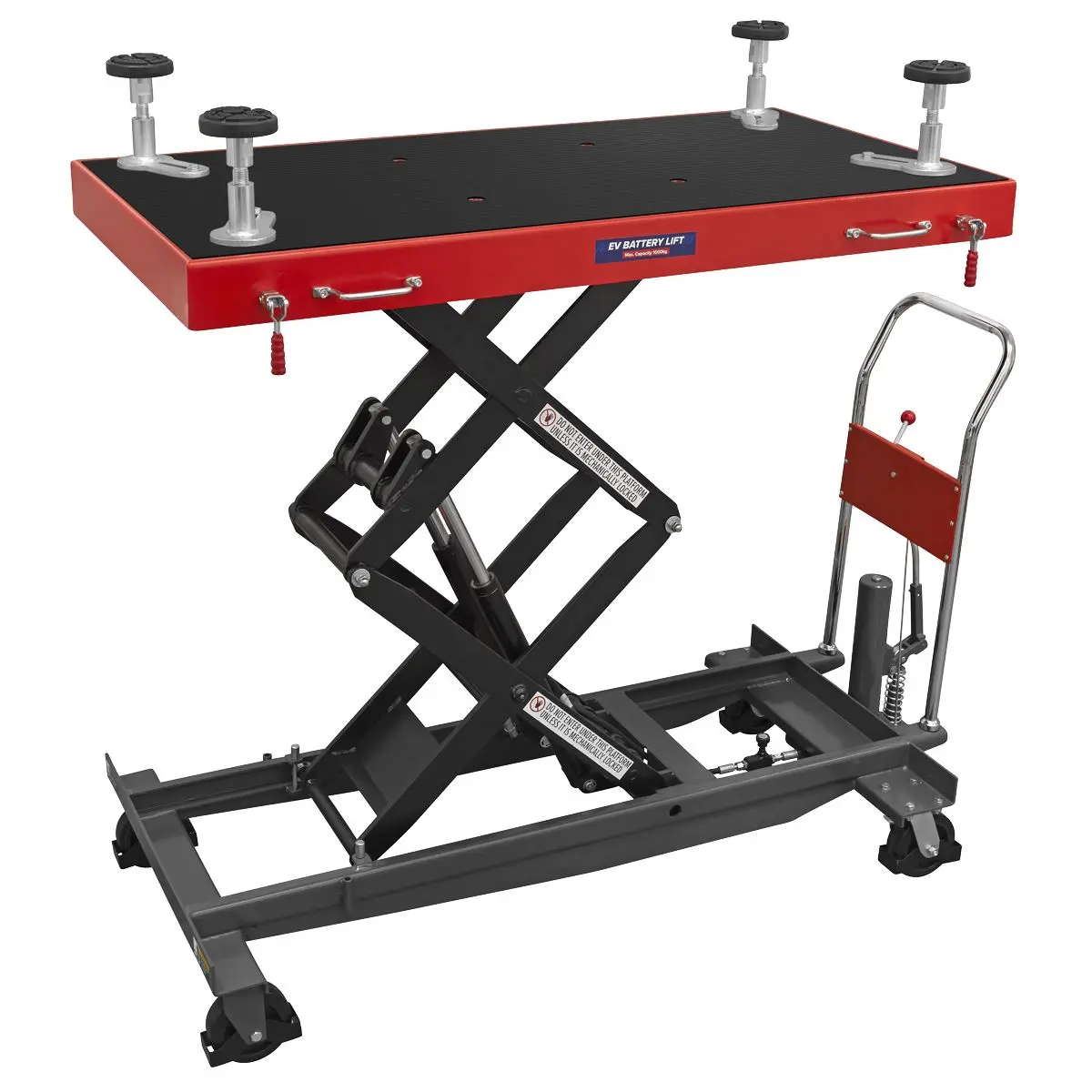

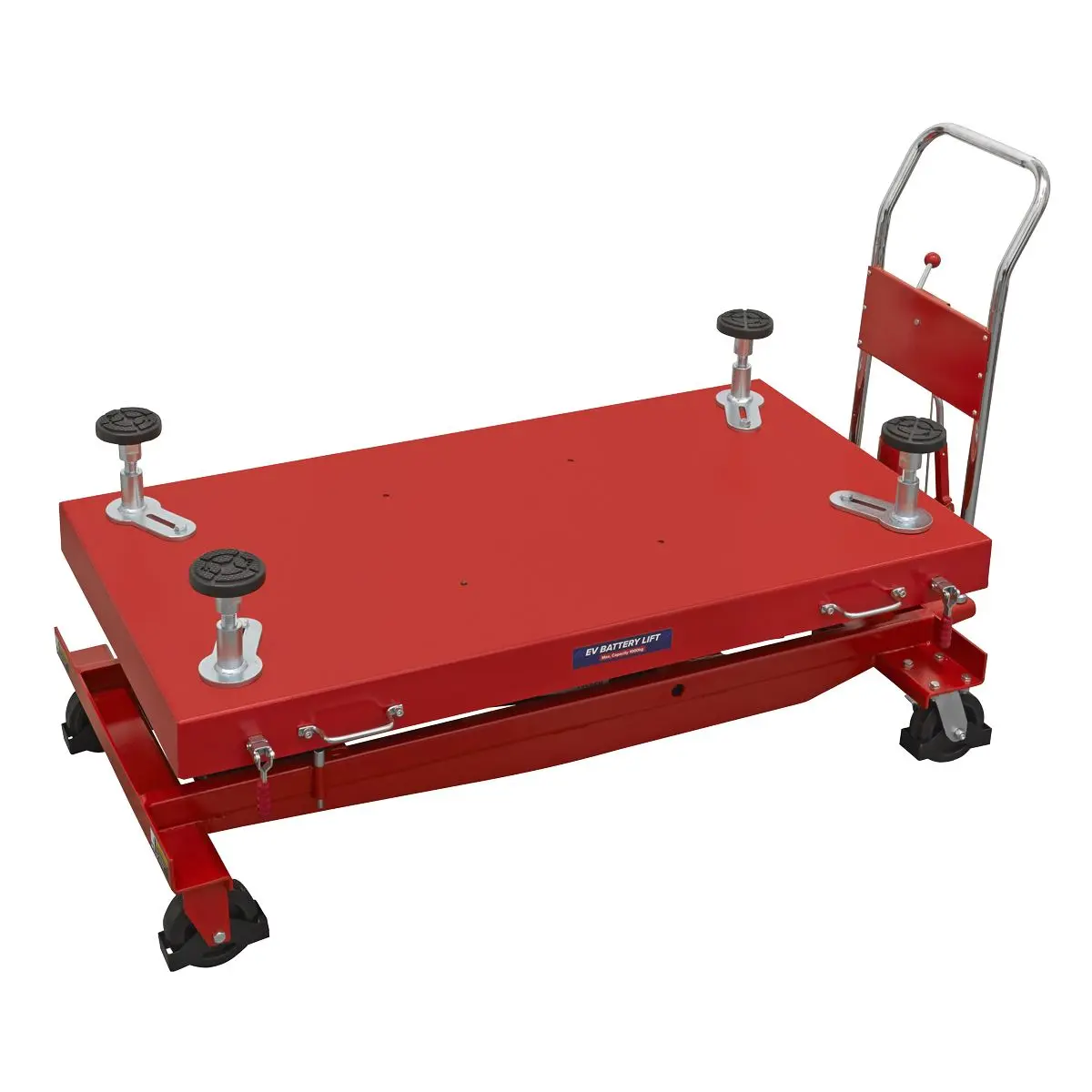

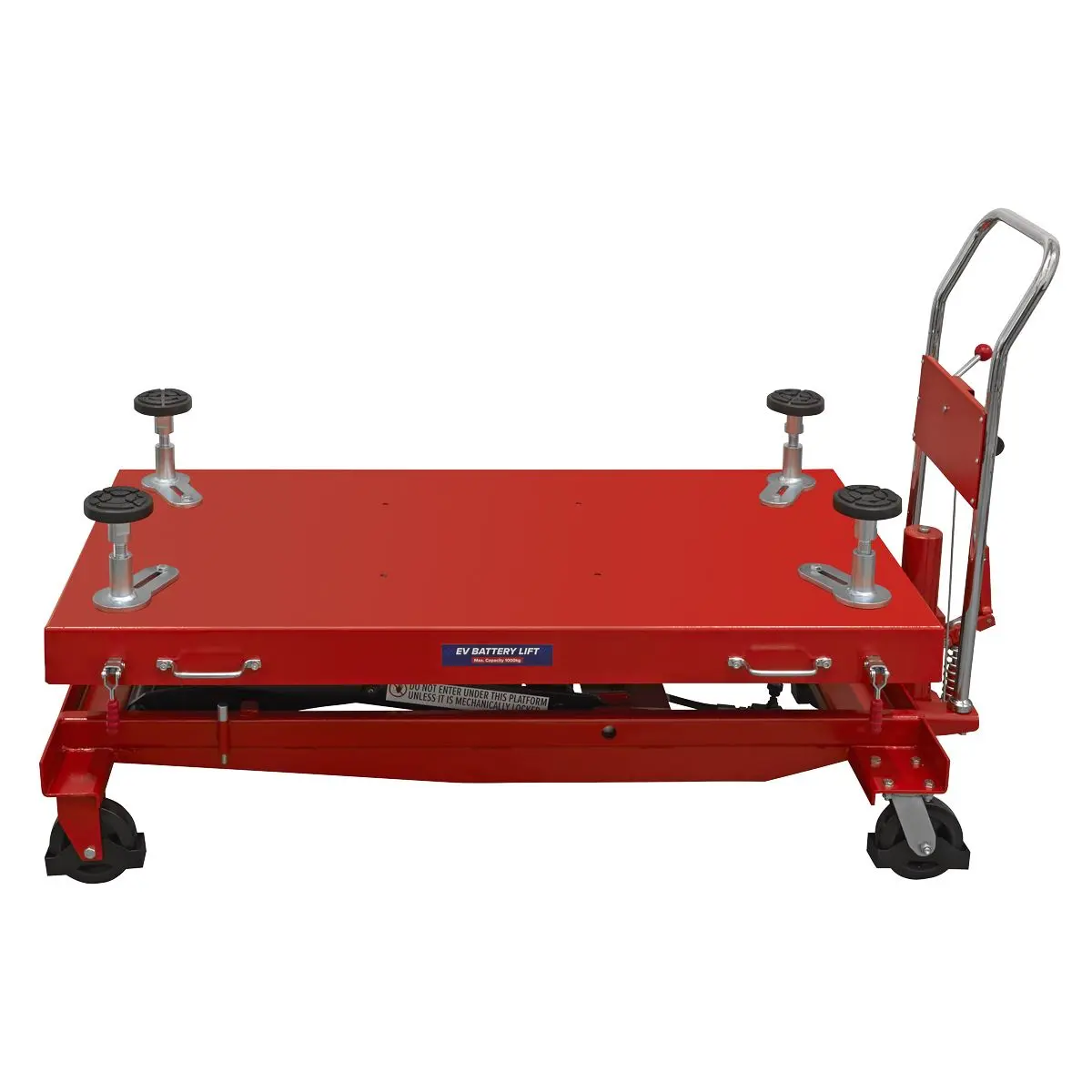

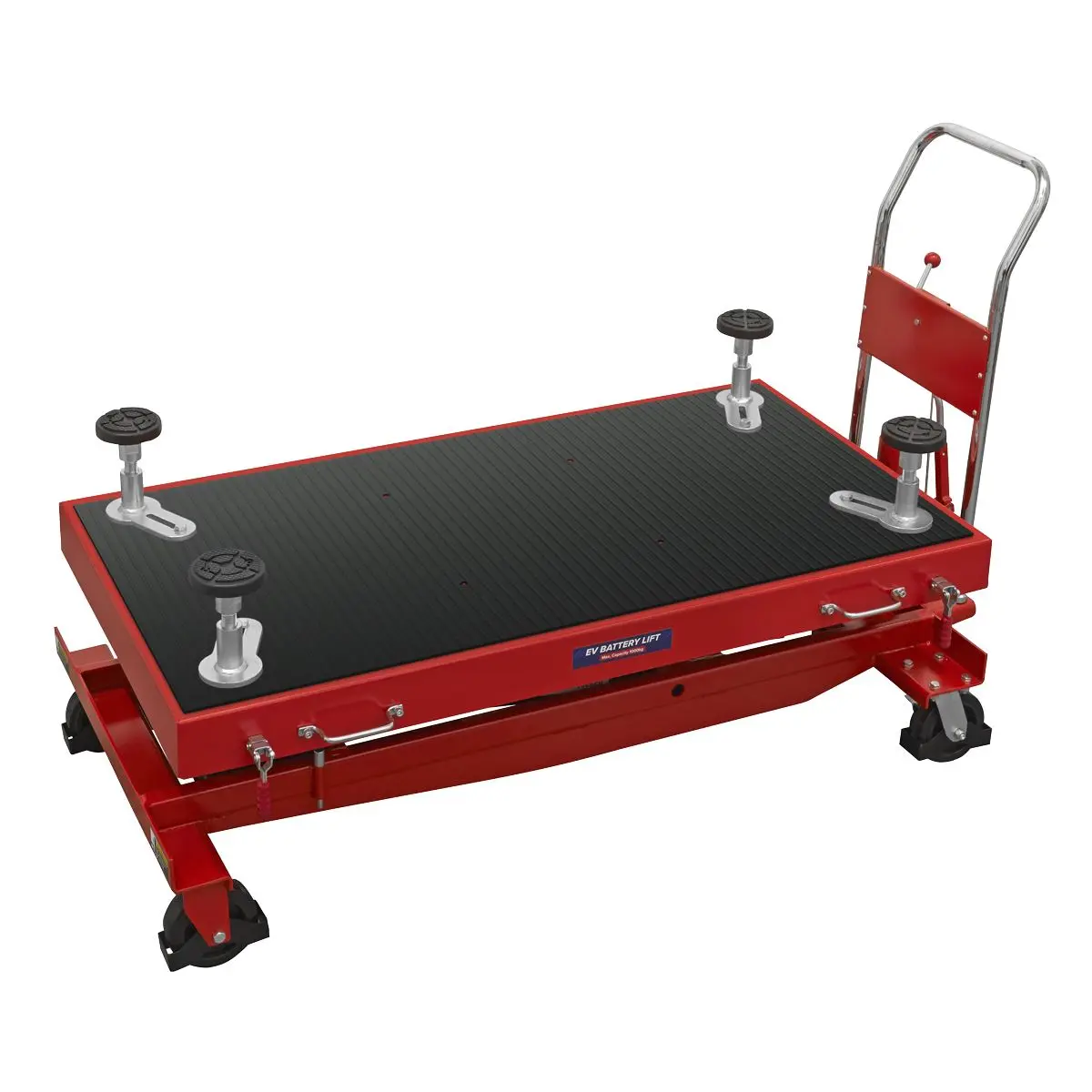

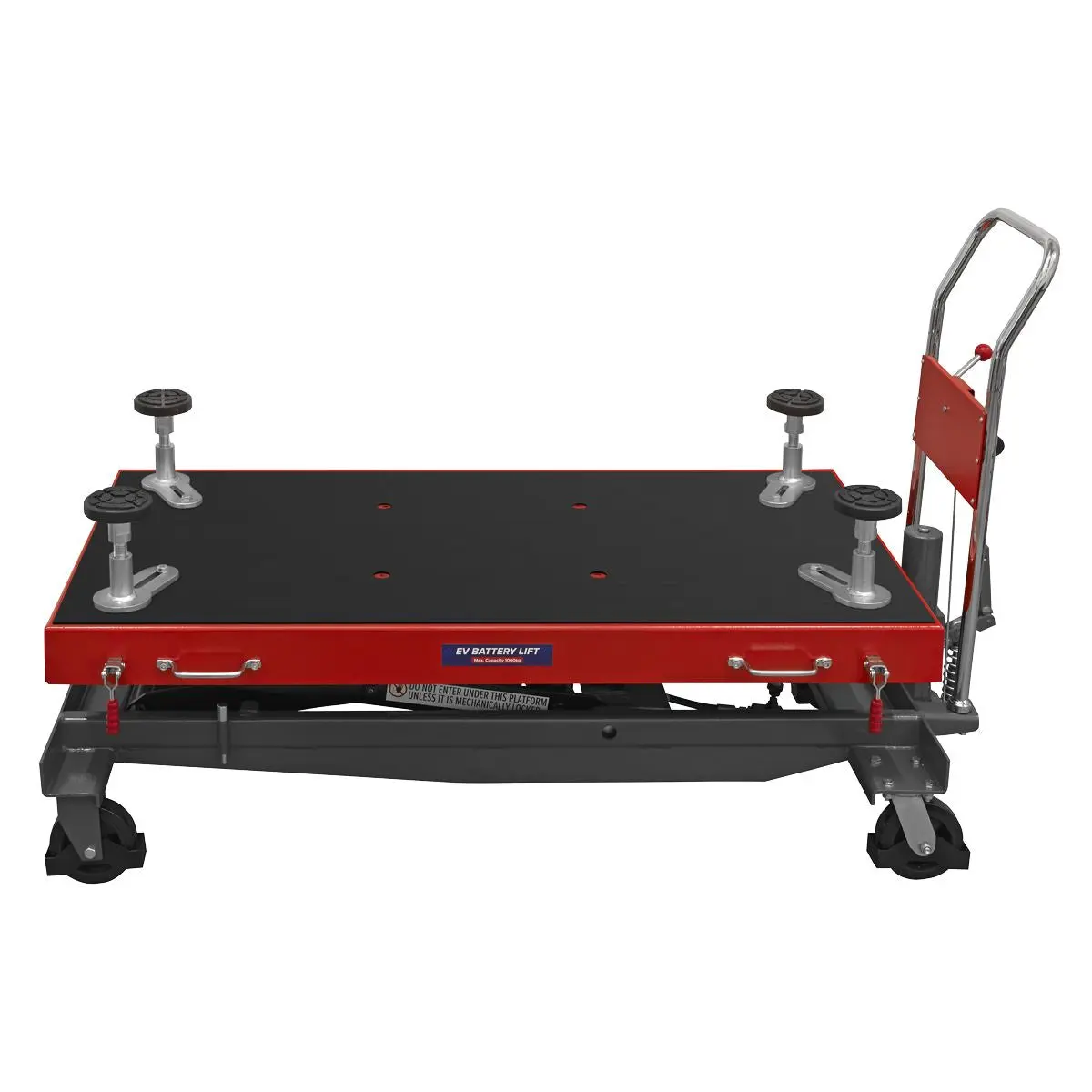

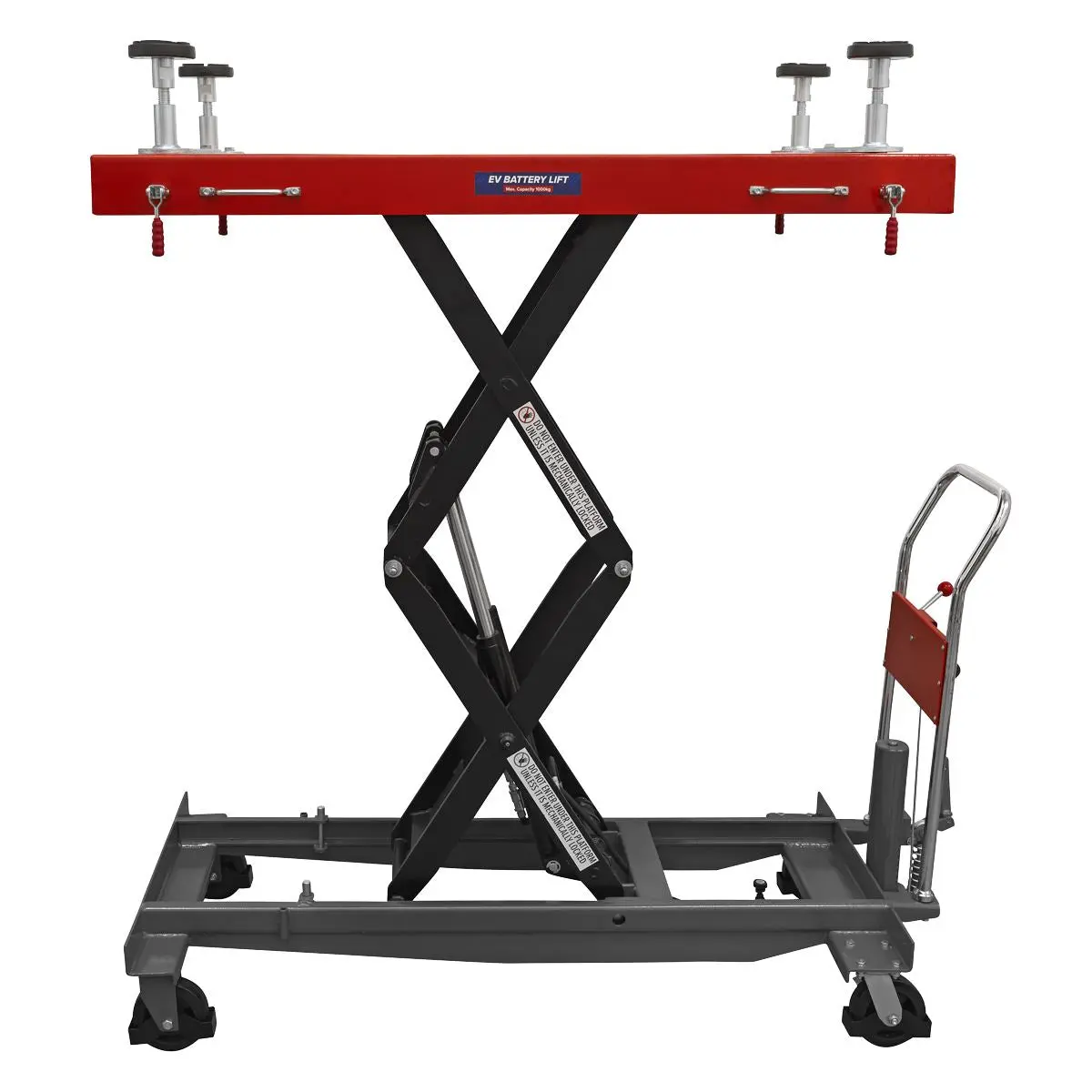

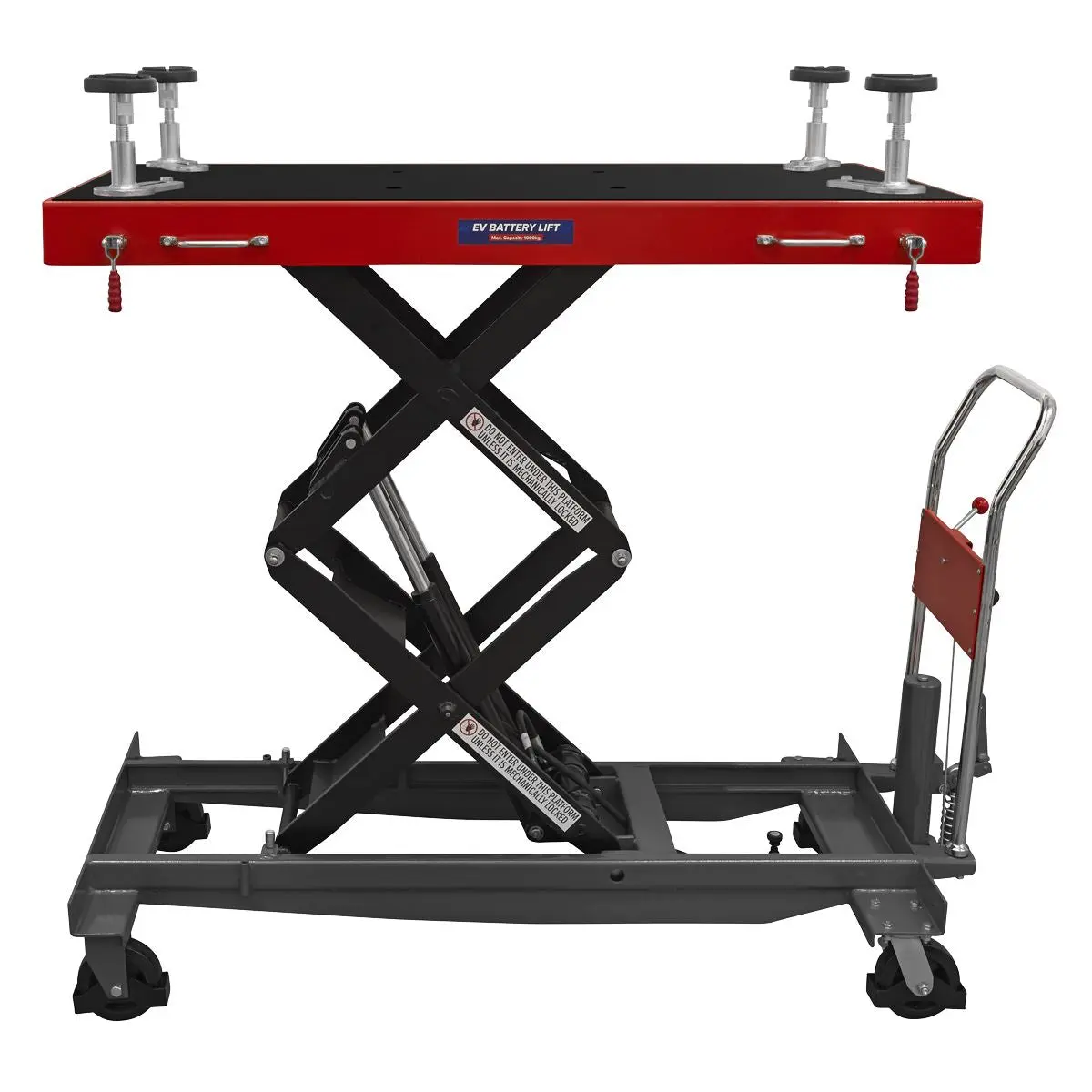

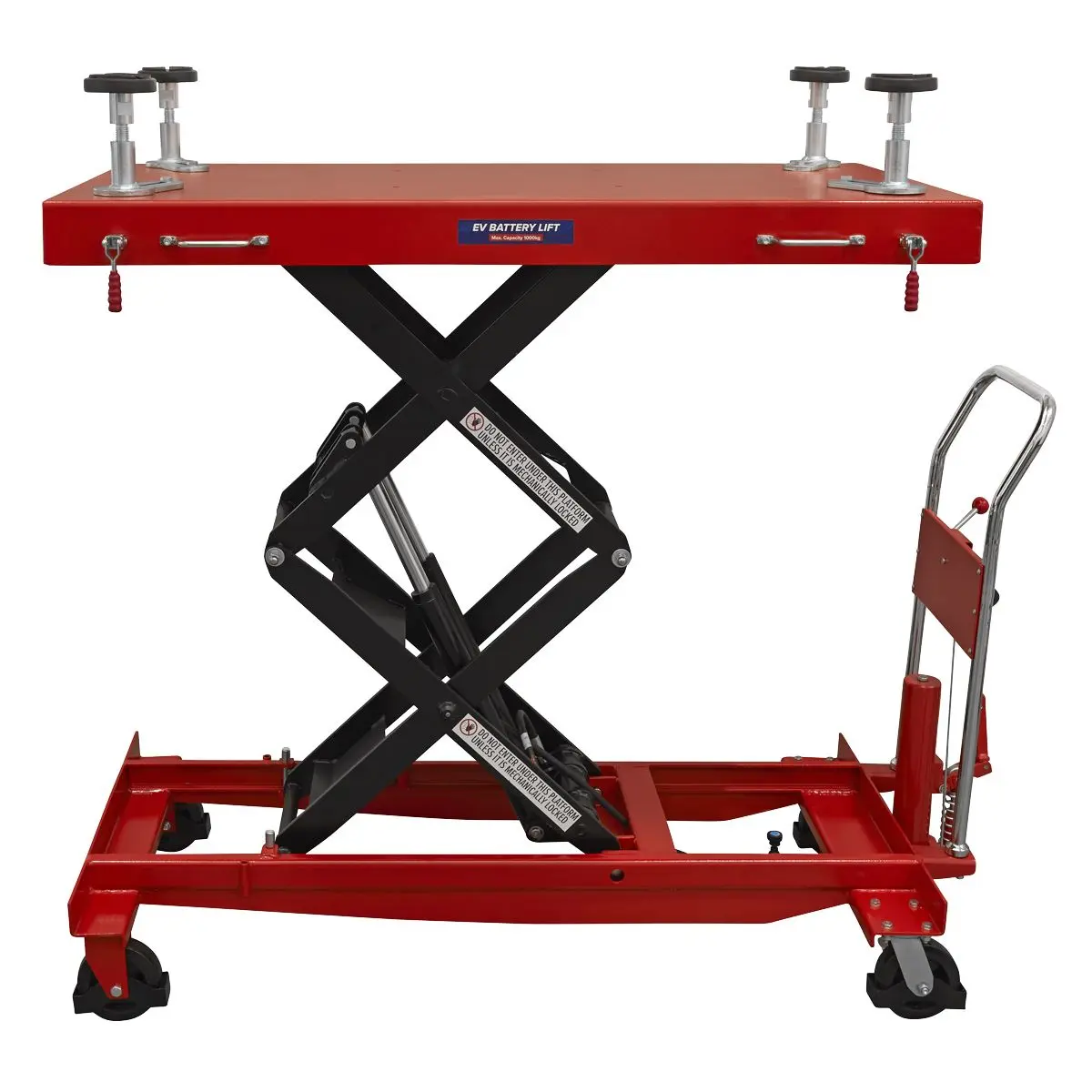

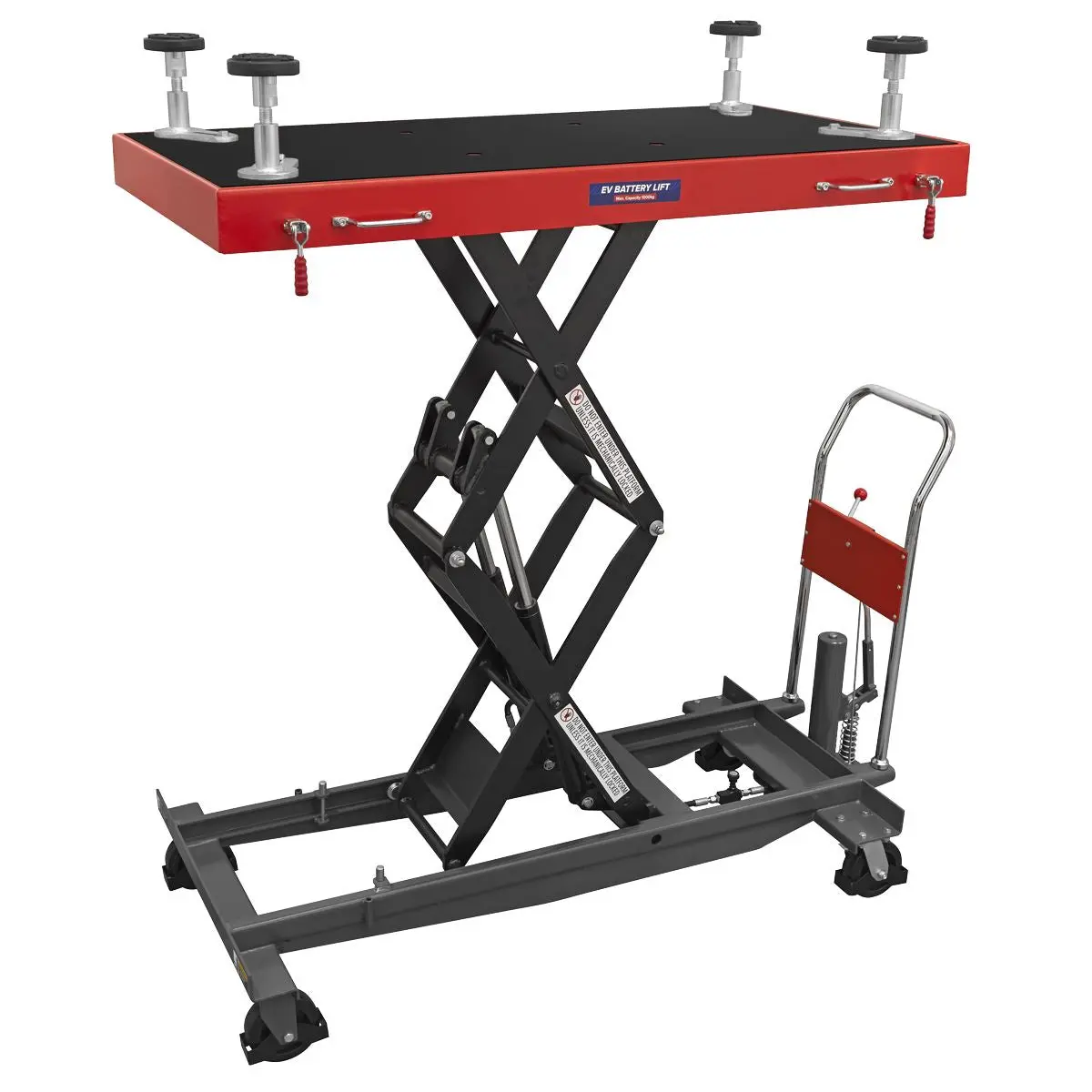

Sealey High Lift EV Battery Lift/Hydraulic Platform Truck 1000kg Capacity

HEAVY-DUTY CONSTRUCTION - Solid steel framework.

HIGH LIFT VERSION - 1750mm Maximum platform height.

ADJUSTABLE TABLETOP - Multiple adjustments can be made for the removal and installation of most EV vehicle batteries.

FITTED WITH FOUR COMPOSITE WHEELS - Two fixed and two locking castors for easy-rolling.

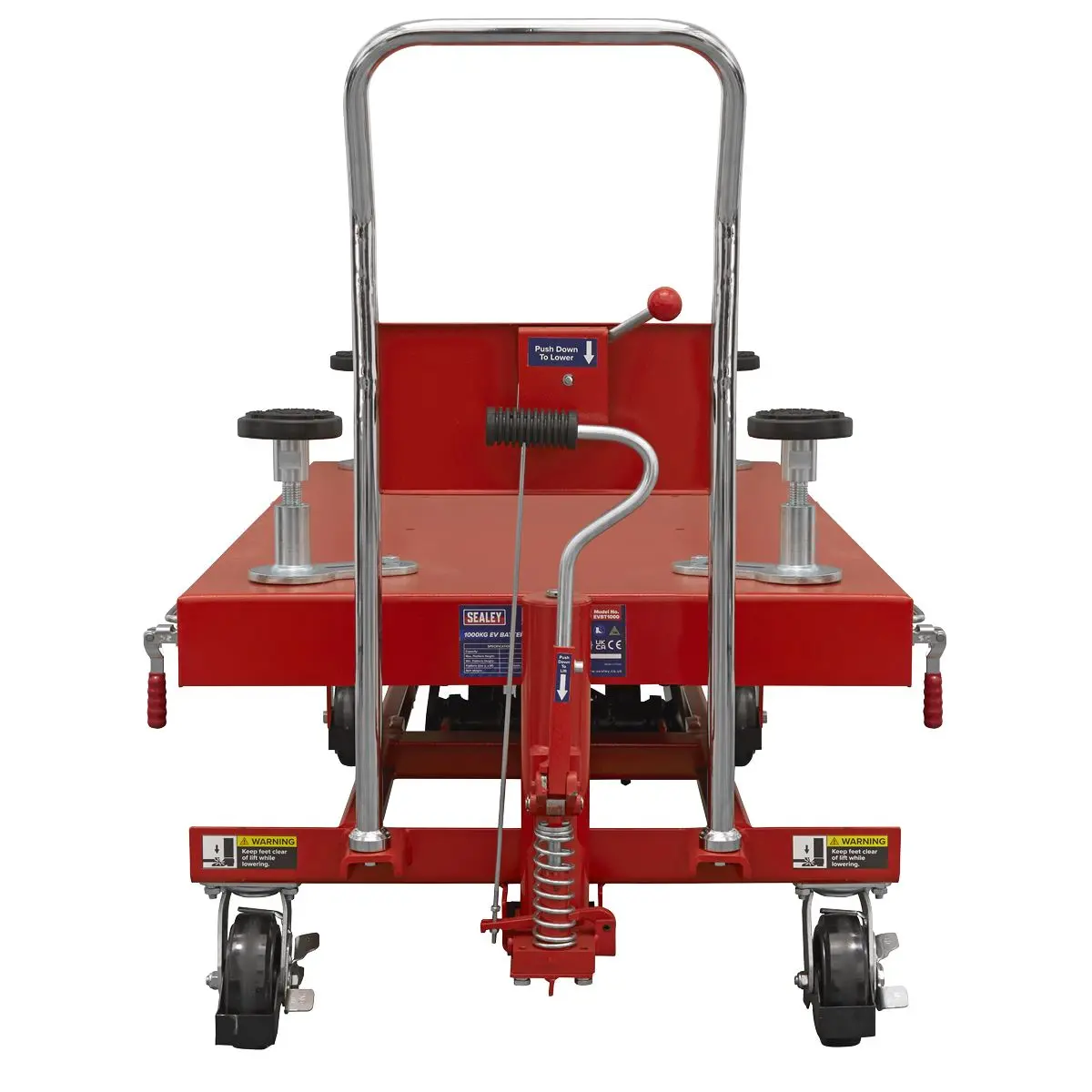

ONE-PIECE HYDRAULIC UNIT - Controlled by large rear mounted foot pedal.

REMOVING AND INSTALLING EV BATTERIES - Designed to assist with EV battery maintenance on electric vehicles.

MULIPLE APPLICATIONS - Suitable for assisting with many other day-to-day workshop tasks such as removing/installing engines, transmissions, fuel tanks, subframes and can be used as a mobile service bench.

SAFETY RELEASE MECHANISM - Positioned on handlebar for smooth controlled descent.

HEAVY ITEM - Extra assistance must be provided at the delivery point to help its safe delivery.

Specification:

• Model No EVBT1000
• Brand: Sealey
• Capacity: 1000kg
• Maximum Platform Height: 1750mm
• Minimum Platform Height: 550mm
• Nett Weight: 270kg
• Platform Length: 1500mm
• Platform Width: 800mm

Product Guarantee: 1 Year
Catalogue Page: Page 460

Downloadable Files:

• Instructions: View Here
• Material Safety Data Sheet: View Here
• Parts Diagram: View Here
