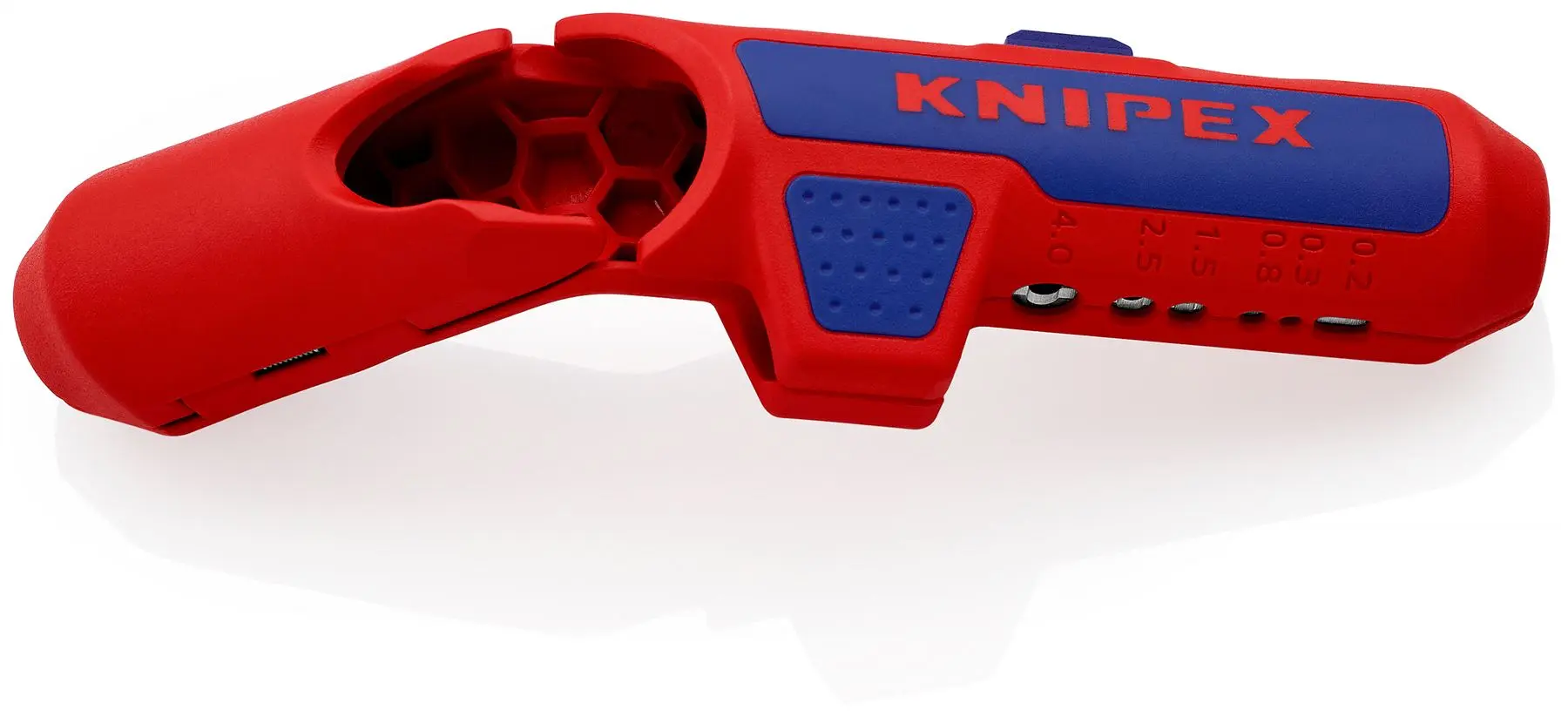

KNIPEX ErgoStrip Universal Wire Stripping Tool for Left Handers 135mm 16 95 02 SB

16 95 02 SB KNIPEX ErgoStrip®

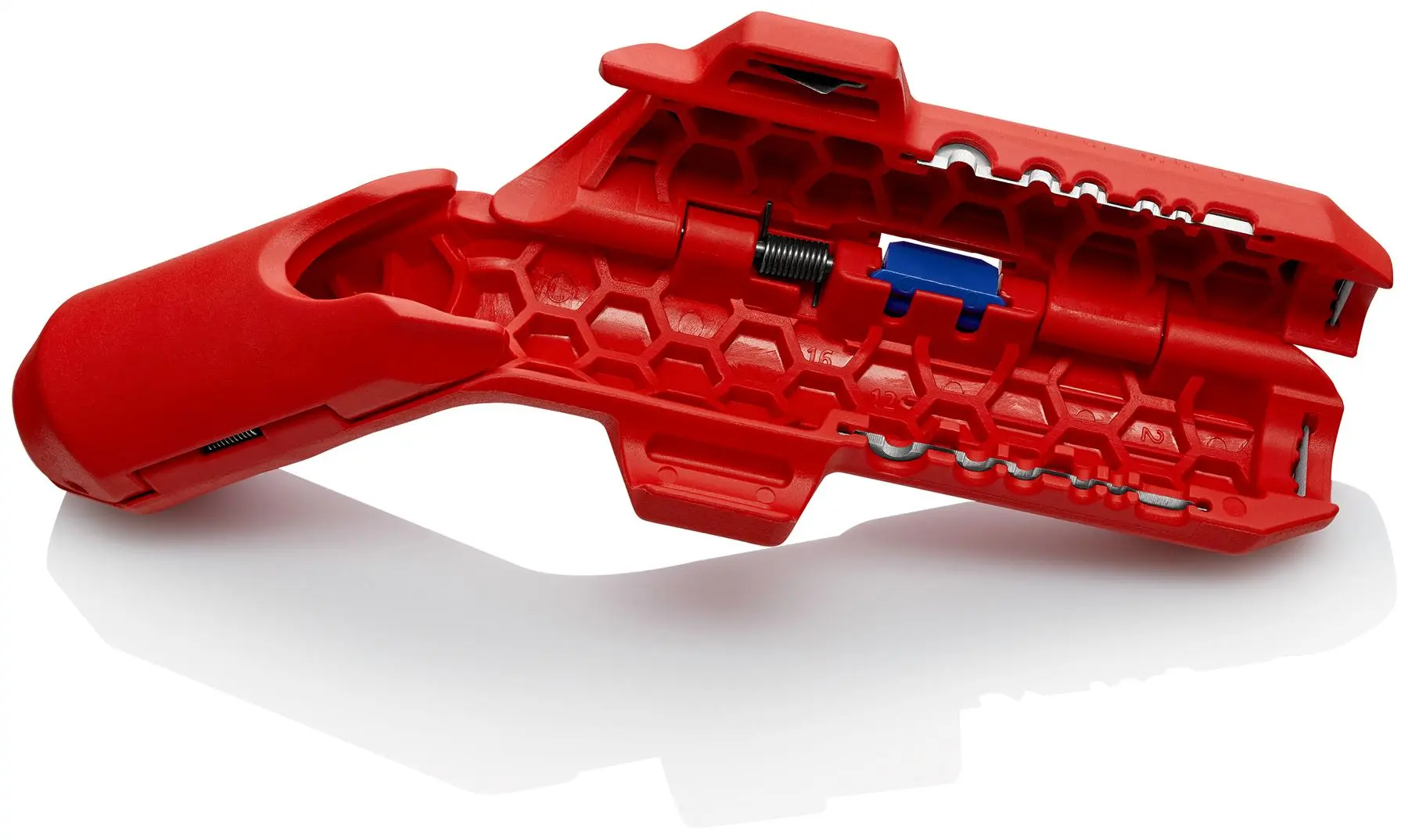

for fast and precise stripping of all common round and damp-proof installation cables (e.g. NYM cable 3 x 1.5 mm² up to 5 x 2,5 mm²), data cables (e.g. twisted pair) and coax cables. innovative, ergonomic pistol grip design for easy cutting, stripping and longitudinal cut of the sheath. Conical, slimmed down tool ends for better access in confined areas. Stripping device for cross-sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm². Simplified insertion of single wires for stripping using location ridges. With opening spring and locking device. Easy insertion of coax and data cable thanks to opening aid. Multi-component design with a soft plastic zone for comfortable use and a secure grip. for left-handers.

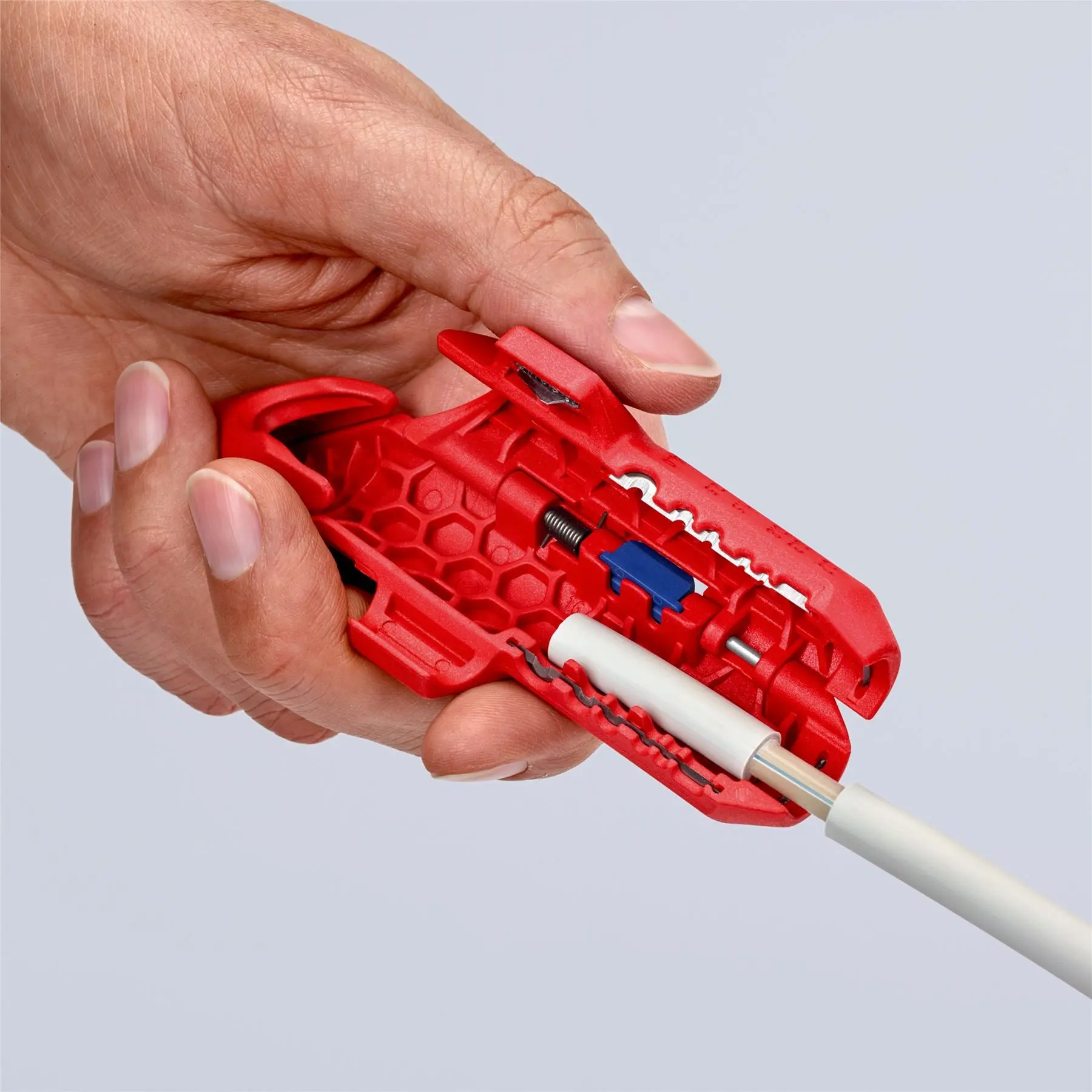

Stripping capacities round cable (diameter): Ø 8 – 13 mm

Wire stripping value for conductors and strands: 0.2 — 4.0 mm²

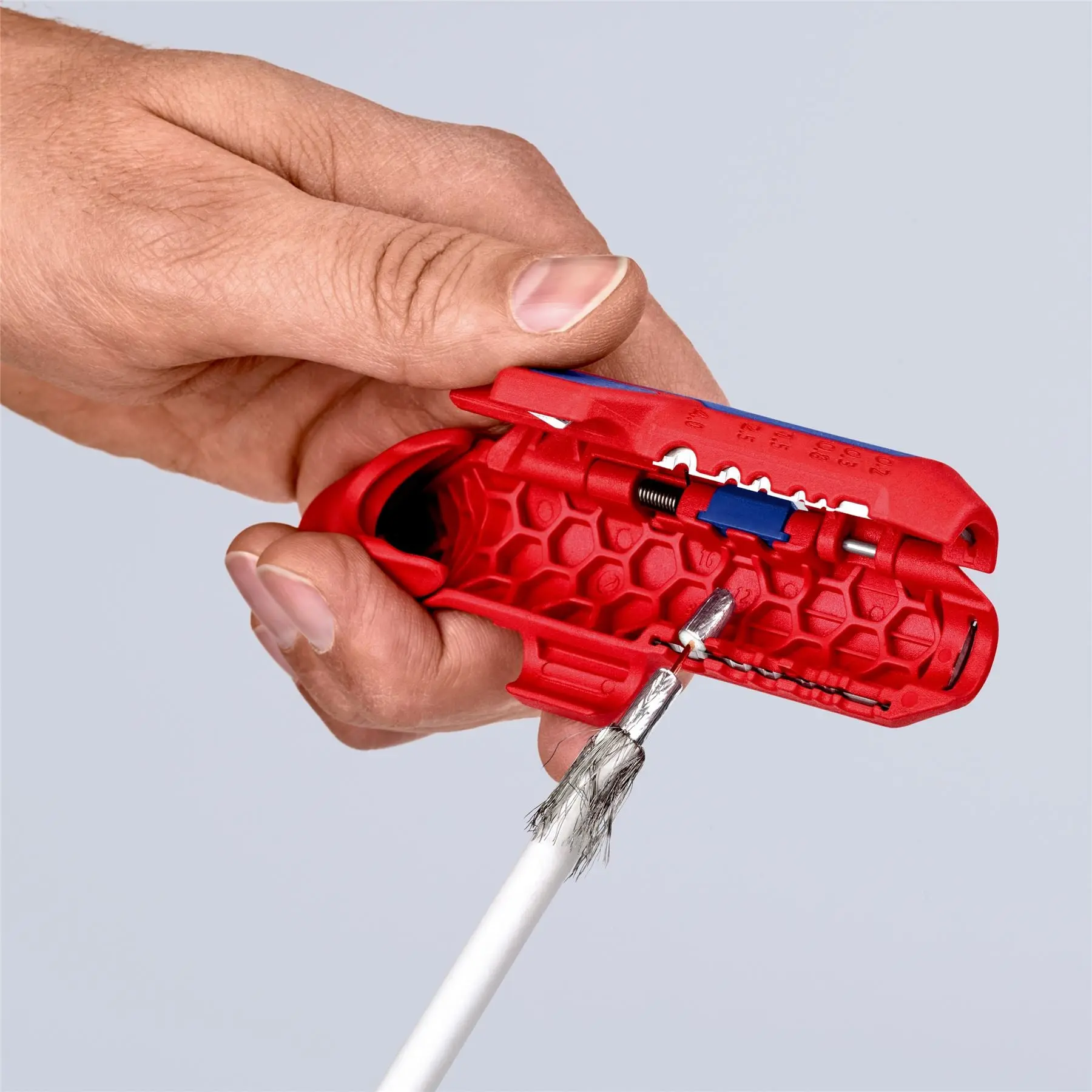

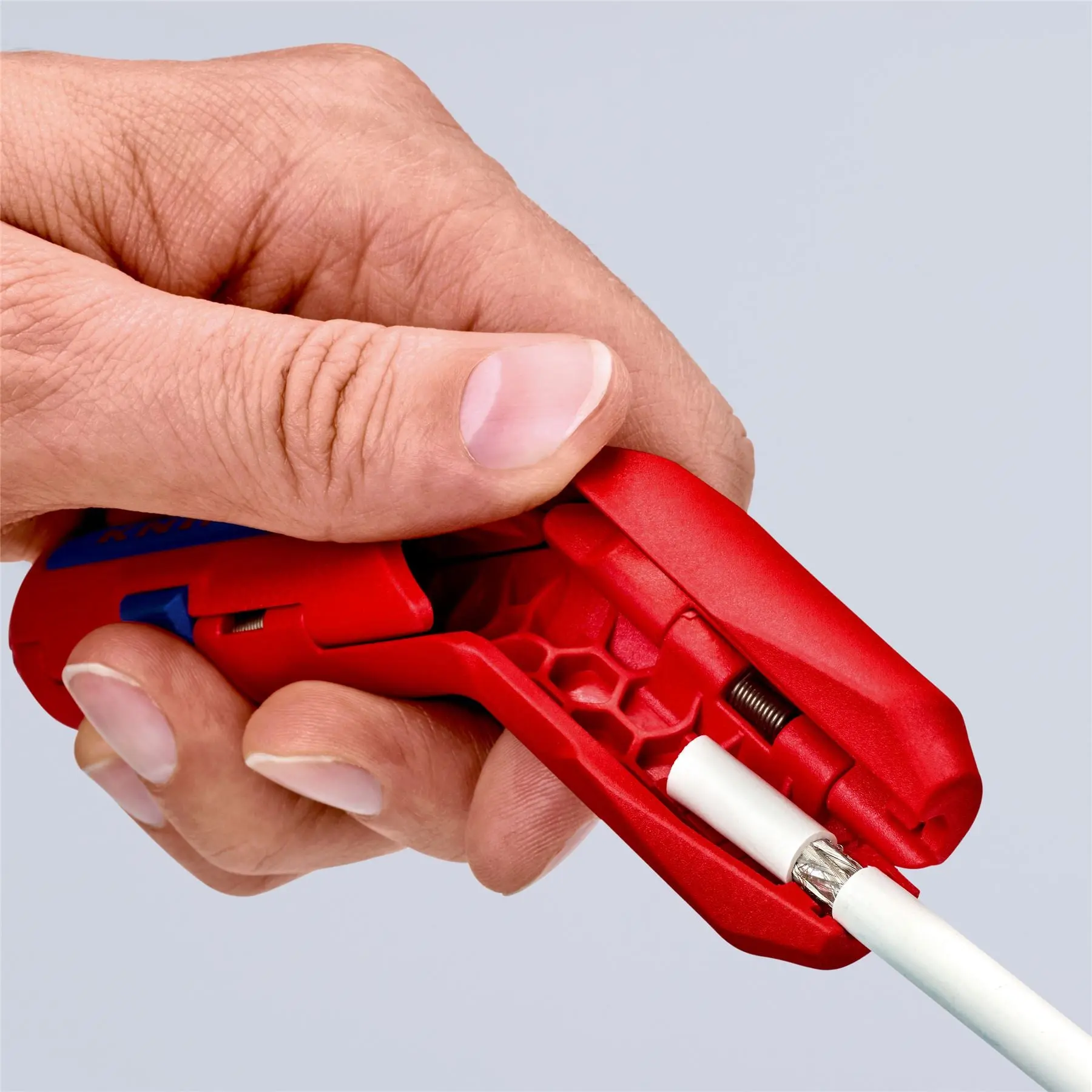

Stripping capacities for coax cable (diameter): Ø 4.8 – 7.5 mm

Wire stripping value for data cable: CAT 5 - 7. Twisted Pair (UTP/STP)

Stripping capacities: Ø 8.0 — 13.0 mm

Technical Information:

• conical, slimmed down tool ends for better access in confined areas

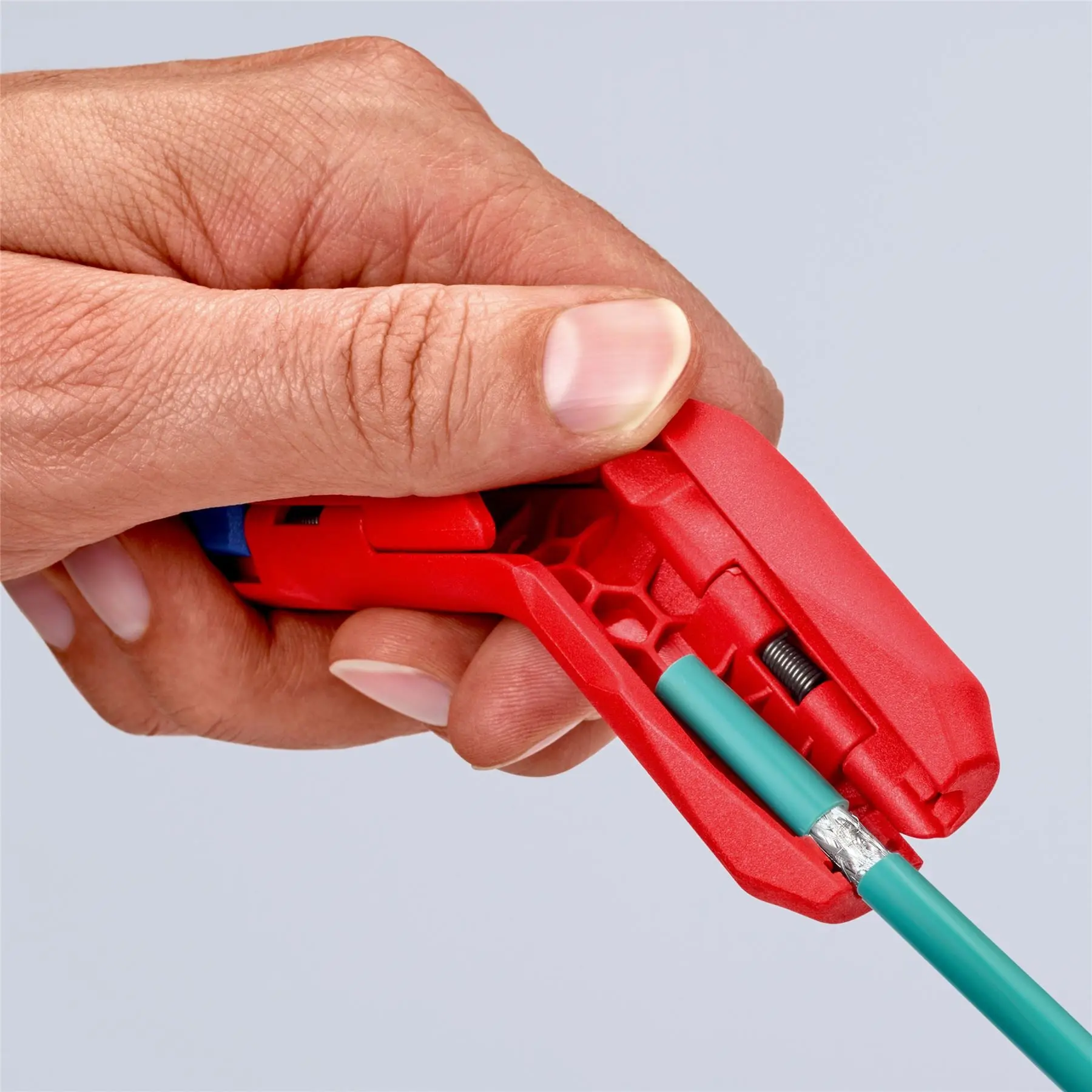

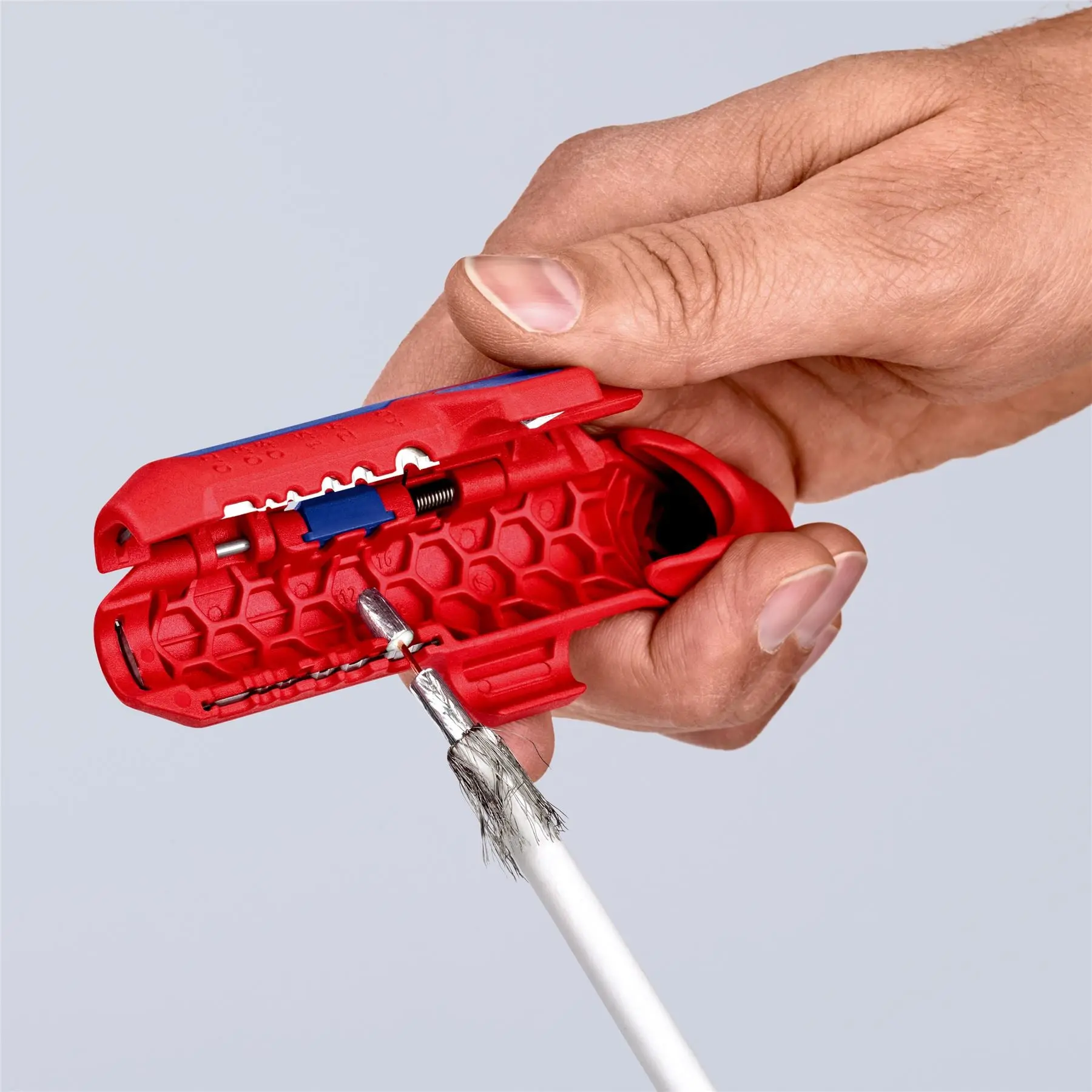

• easy insertion of coax and data cable thanks to opening aid
• for left-handers
• multi-component design with a soft plastic zone for comfortable use and a secure grip

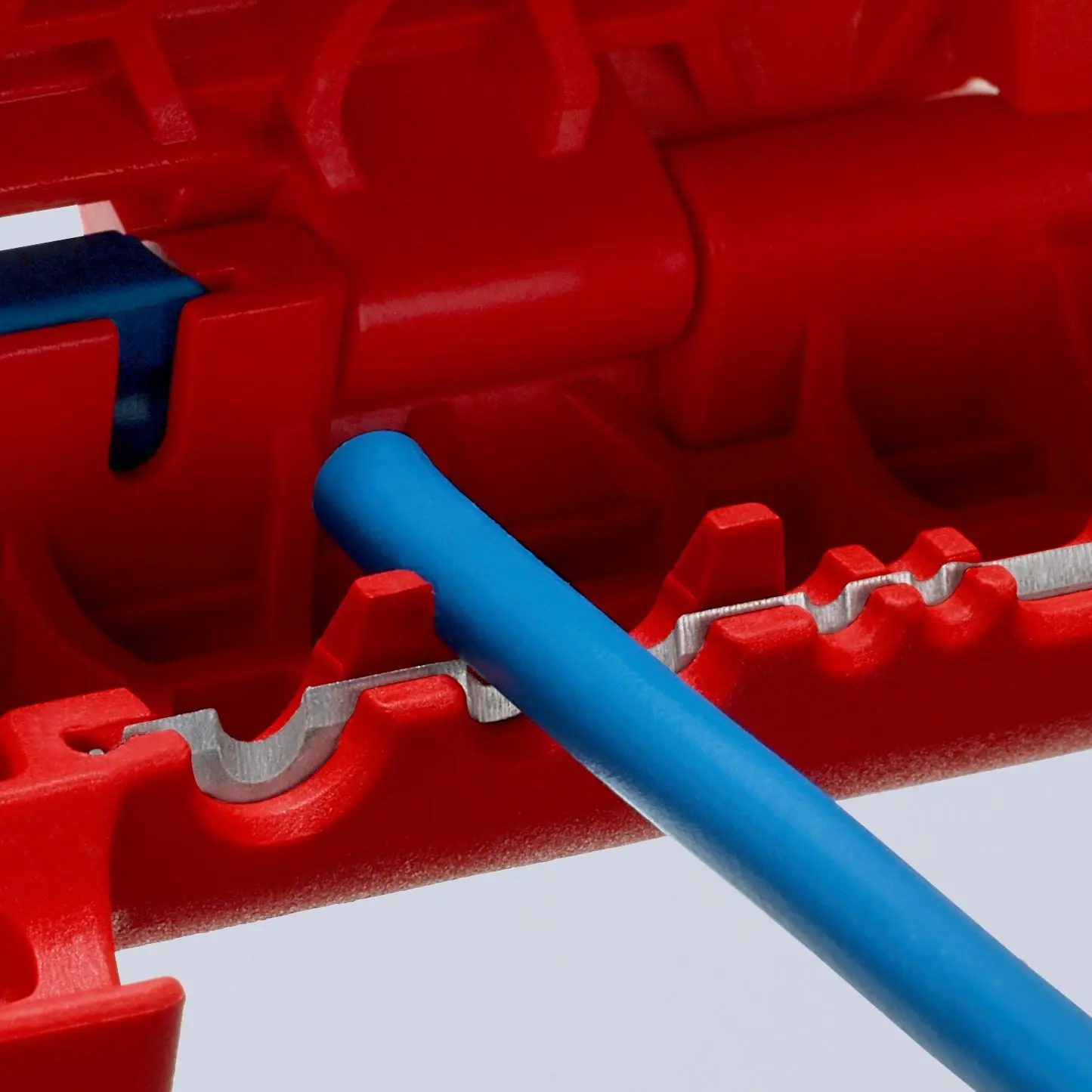

• simplified insertion of single wires for stripping using location ridges

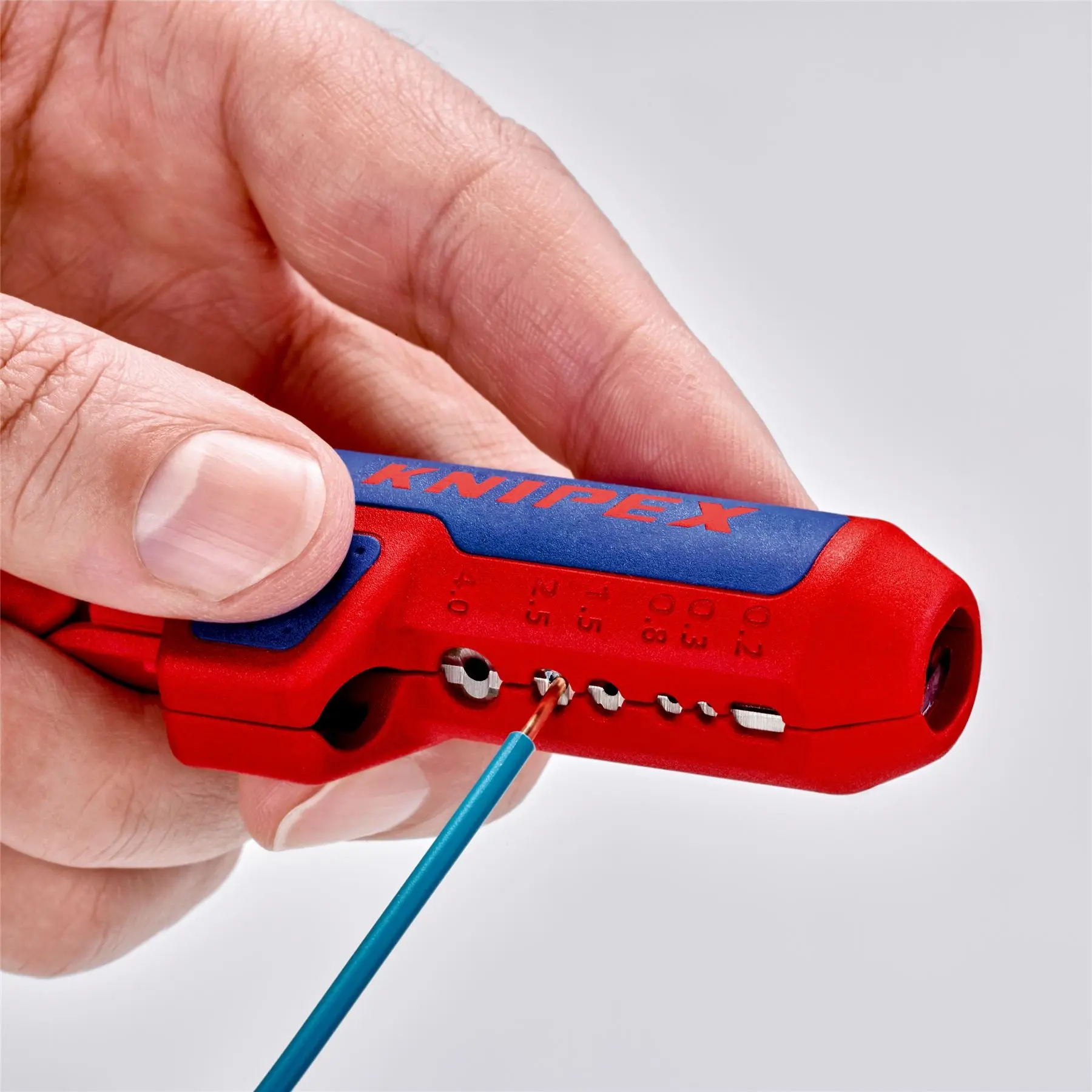

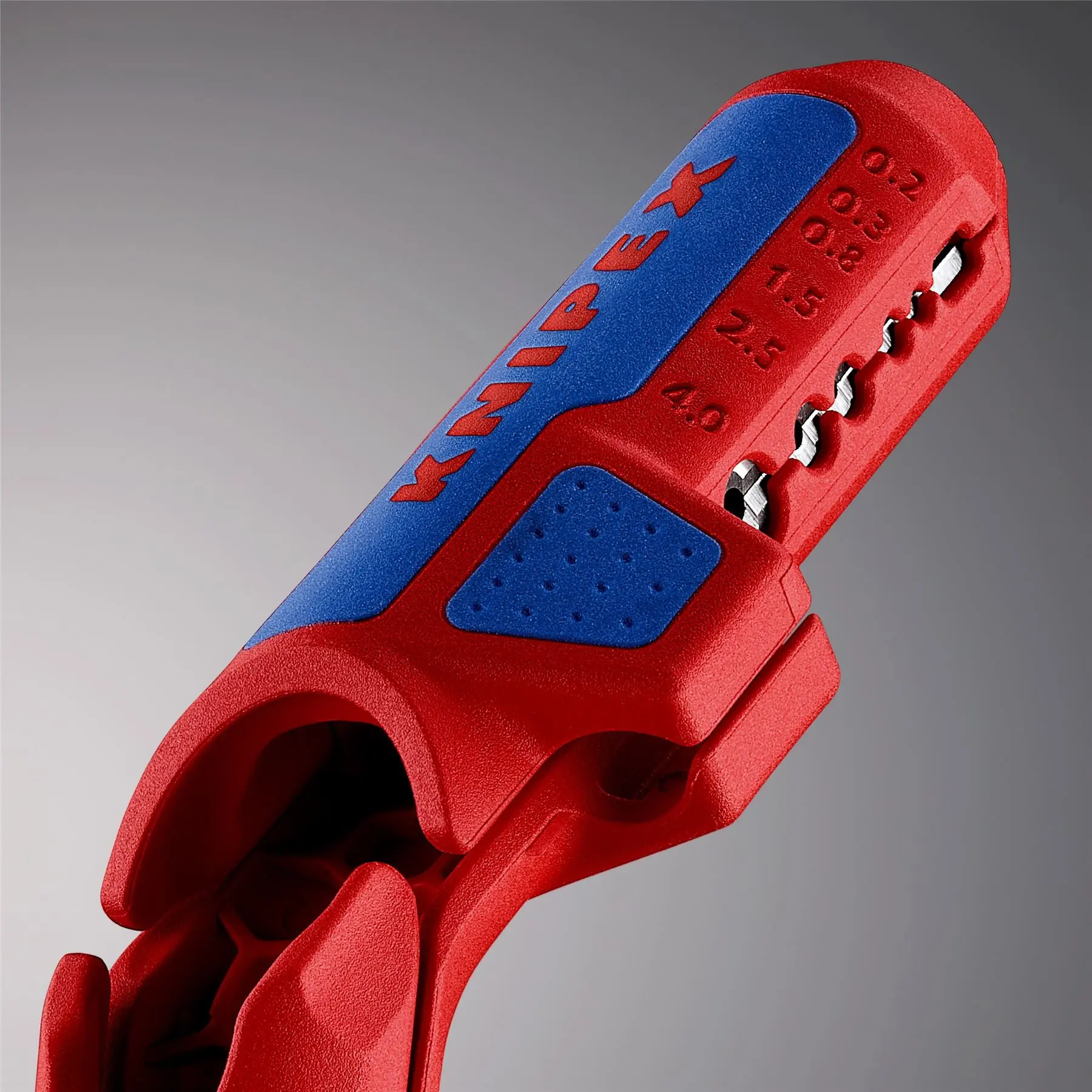

• stripping device for cross-sections 0.2 / 0.3 / 0.8 / 1.5 / 2.5 / 4 mm²
• With opening spring and locking device

Downloadable Files:

• Data Sheet: View Here
