KNIPEX Electrical Installation Pliers with Multi Component Grips 200mm 13 92 200

13 92 200 Pliers for Electrical Installation
6 functions in one pair of pliers. to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules. Smooth surfaces near the tips grip single cores without damaging them; serrated gripping surfaces and pipe grip for gripping flat and round material. Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes. Stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm². Crimping die for wire ferrules 0.5 - 2.5 mm². Cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm. Slim dimensions for easy access. Bolted joint: precise, zero backlash operation of pliers. in case of models with opening spring integrated in the joint, the activated locking lever keeps the cutting edges closed while other functions remain active. the intelligent latching mechanism enables you to "grip" without opening the pliers. The cutting edge remains closed and protected

Cutting capacity copper cable, multiple-stranded: Ø 15 mm

Cutting capacity copper cable, multiple-stranded: 50 mm²

Stripping capacity for cross-sections: 0.75 — 1.5 mm² / 2.5 mm²

Capacity in square millimetres: 0.5 — 2.5 mm²

AWG: 1 / 0

Technical Information:

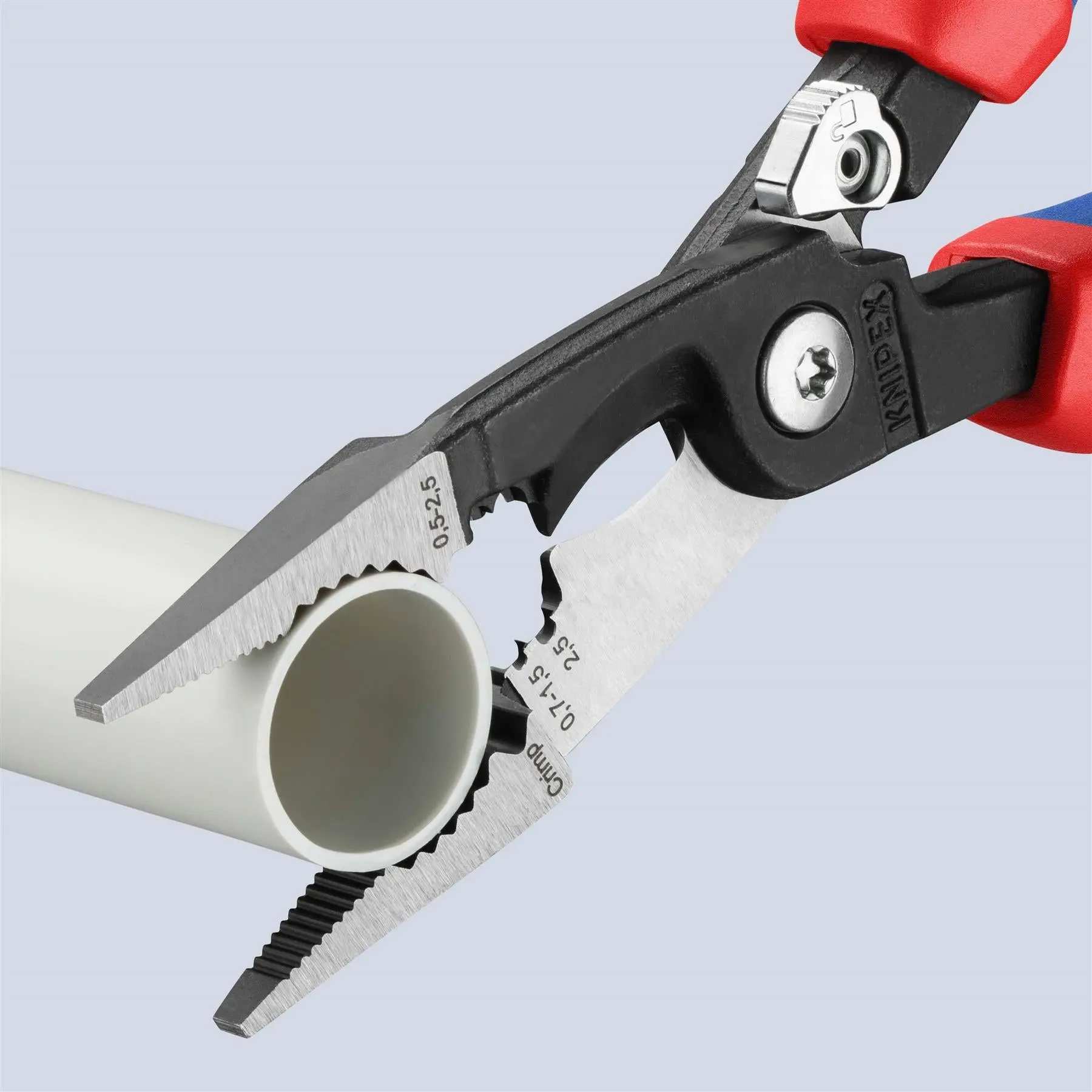

• serrated gripping surfaces and pipe grip for gripping flat and round material
• bolted joint: precise, zero backlash operation of pliers
• cable shears with (induction-hardened) precision cutting edges for copper and aluminium cables up to 5 x 2.5 mm² / Ø 15 mm
• Clear-cut outside edge on the gripping surfaces for working on flush-mounted junction boxes and deburring feed-through holes

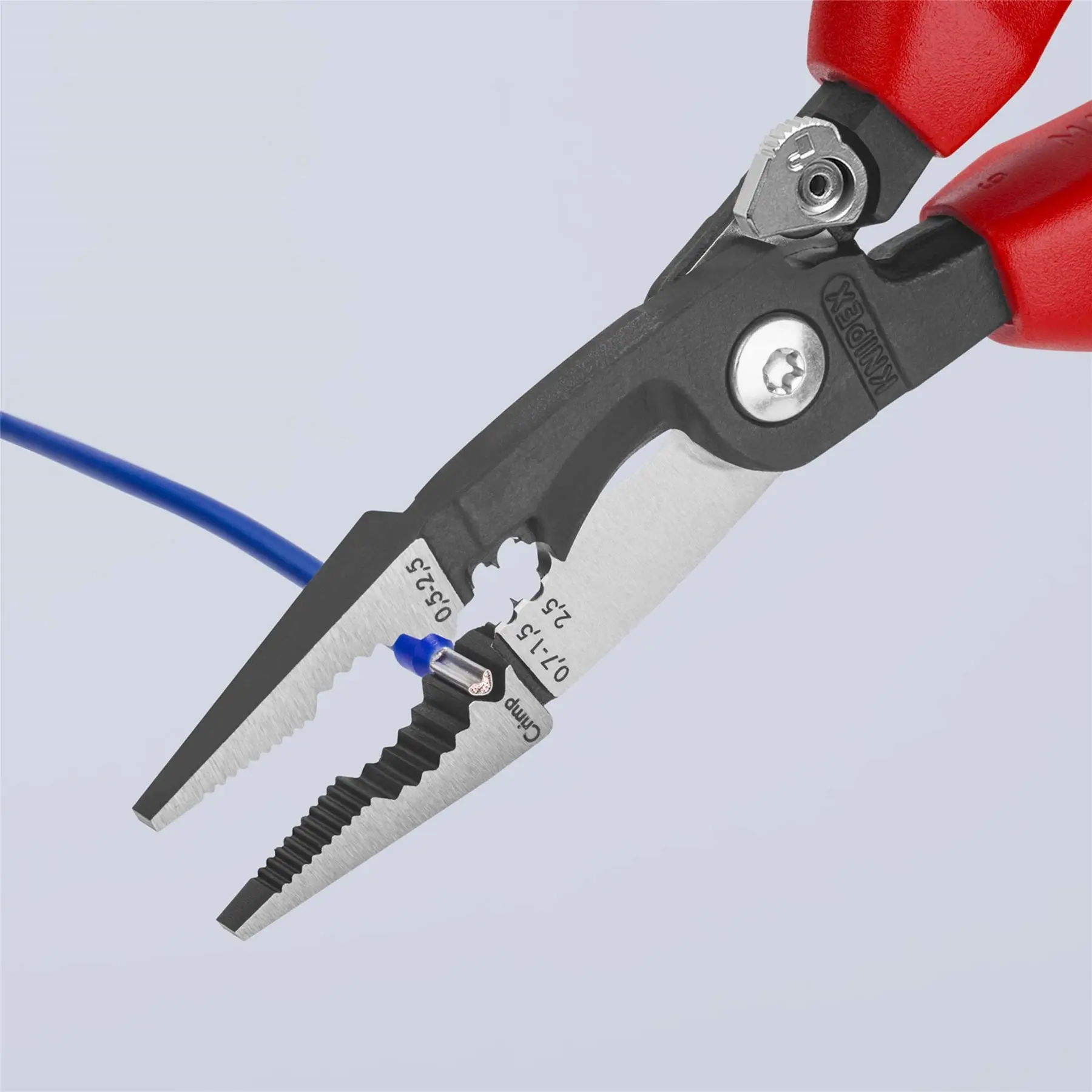

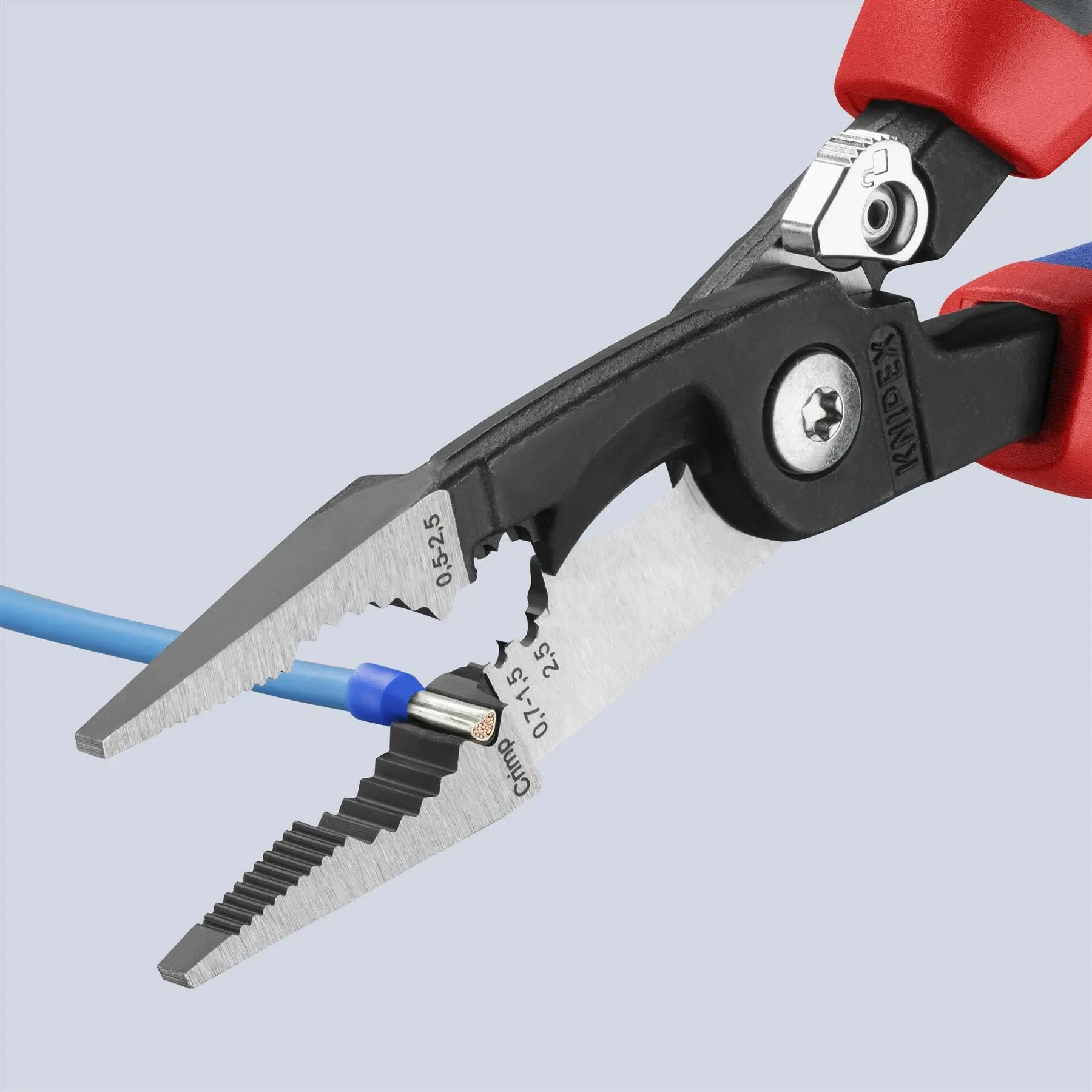

• Crimping die for wire ferrules 0.5 - 2.5 mm²
• in case of models with opening spring integrated in the joint, the activated locking lever keeps the cutting edges closed while other functions remain active
• Slim dimensions for easy access
• smooth surfaces near the tips grip single cores without damaging them

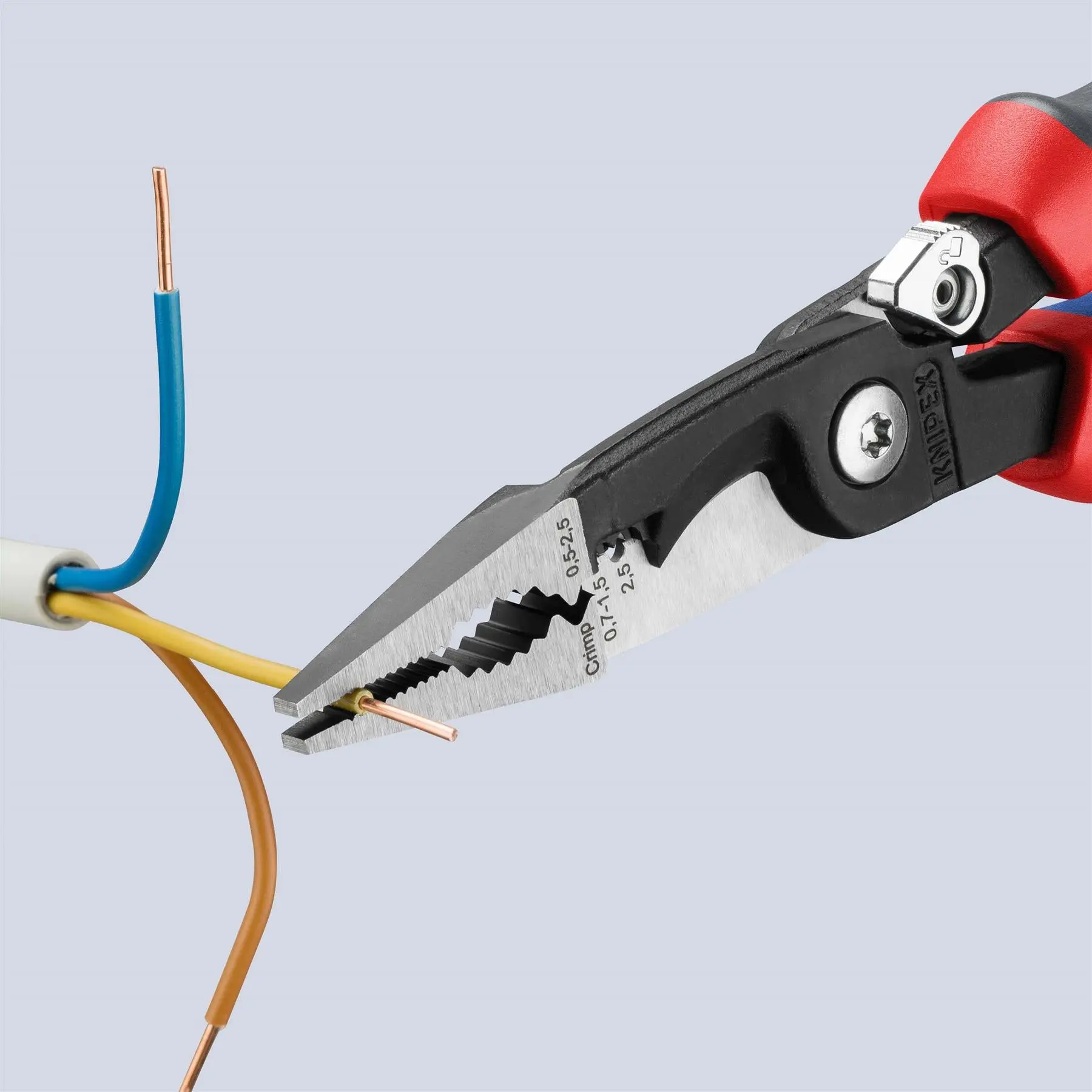

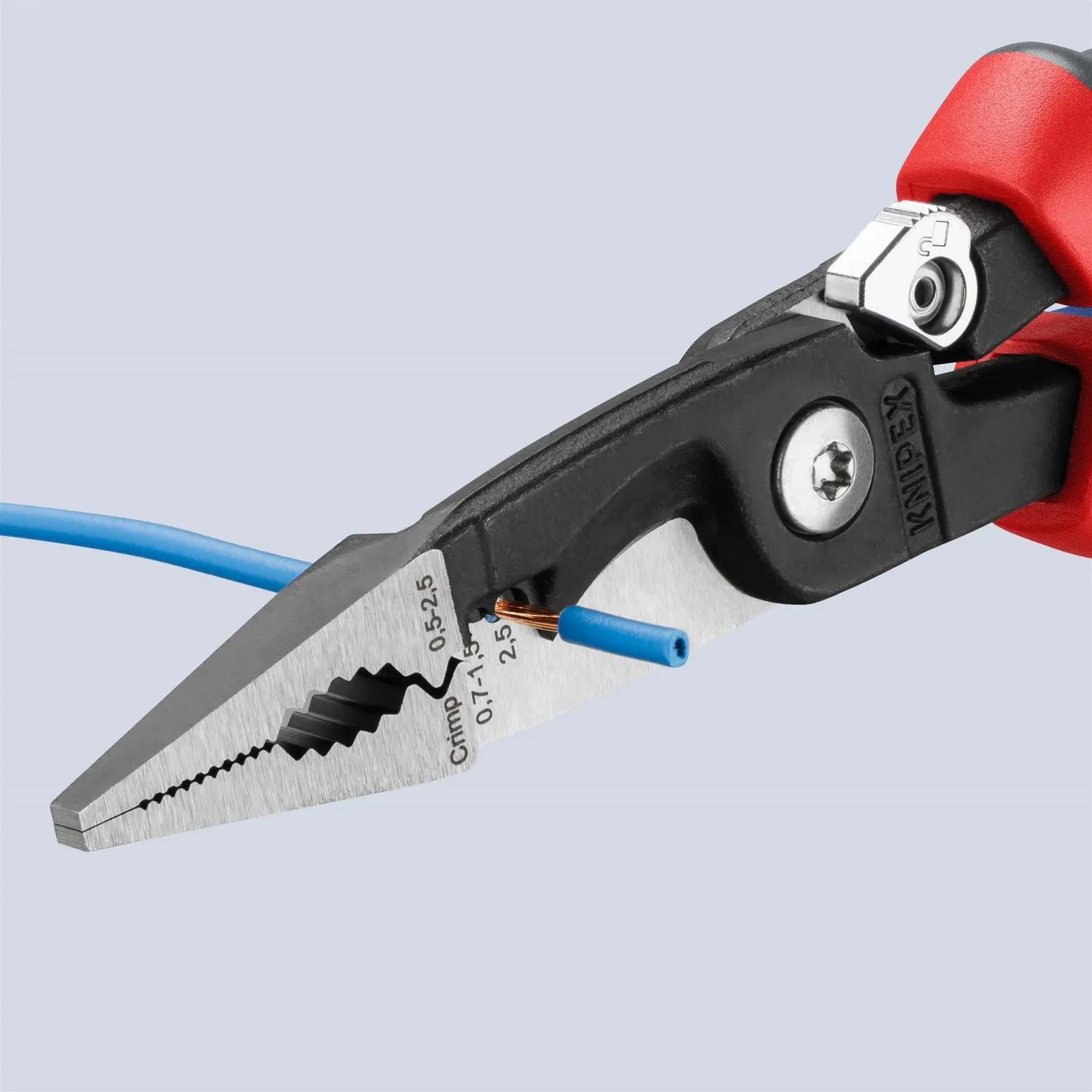

• stripping holes for conductors of 0.75 - 1.5 mm² and 2.5 mm²
• the intelligent latching mechanism enables you to "grip" without opening the pliers. The cutting edge remains closed and protected.
• to grip flat and round material, for bending, deburring, cutting cable, stripping and crimping wire ferrules

Downloadable Files:

• Data Sheet: View Here
