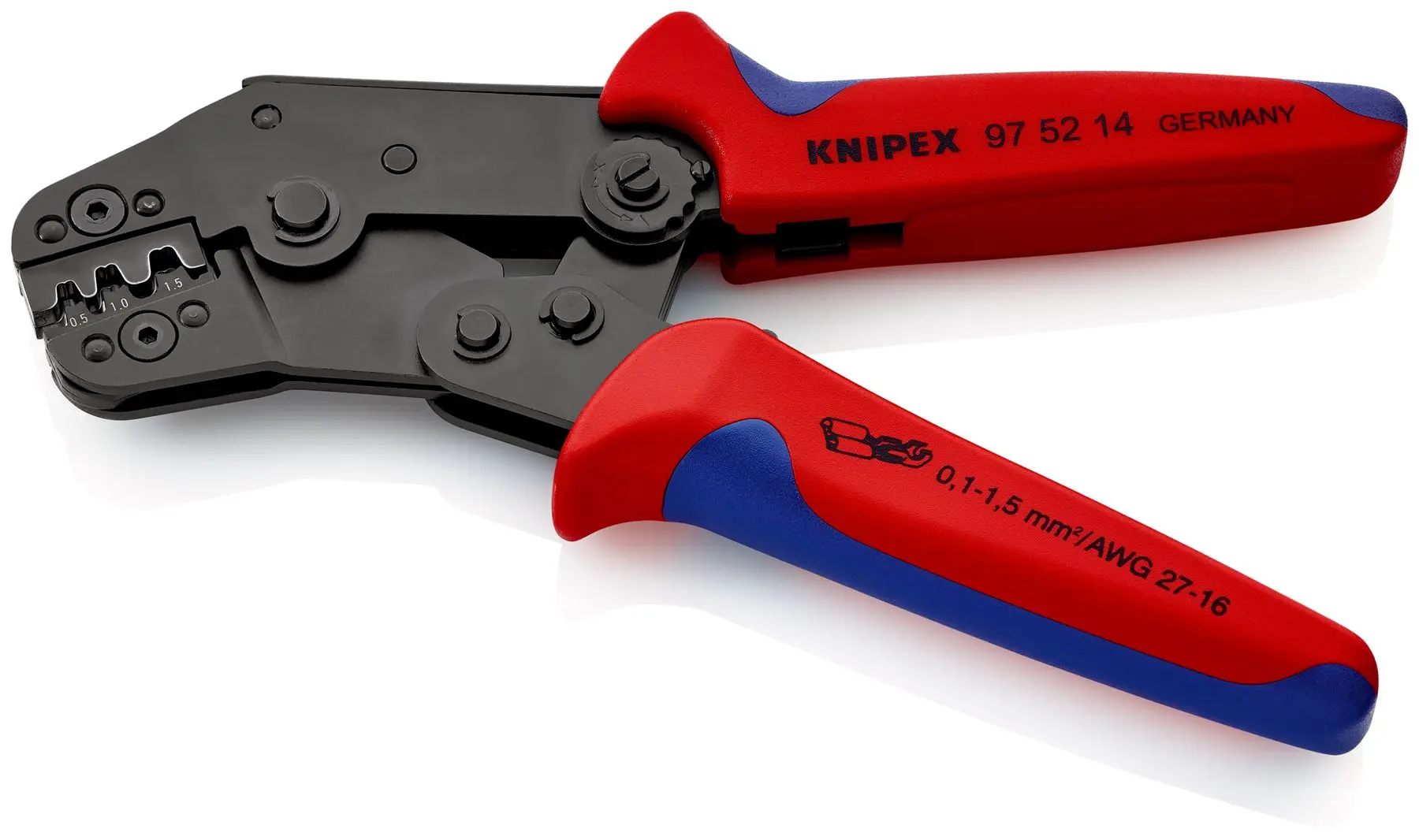

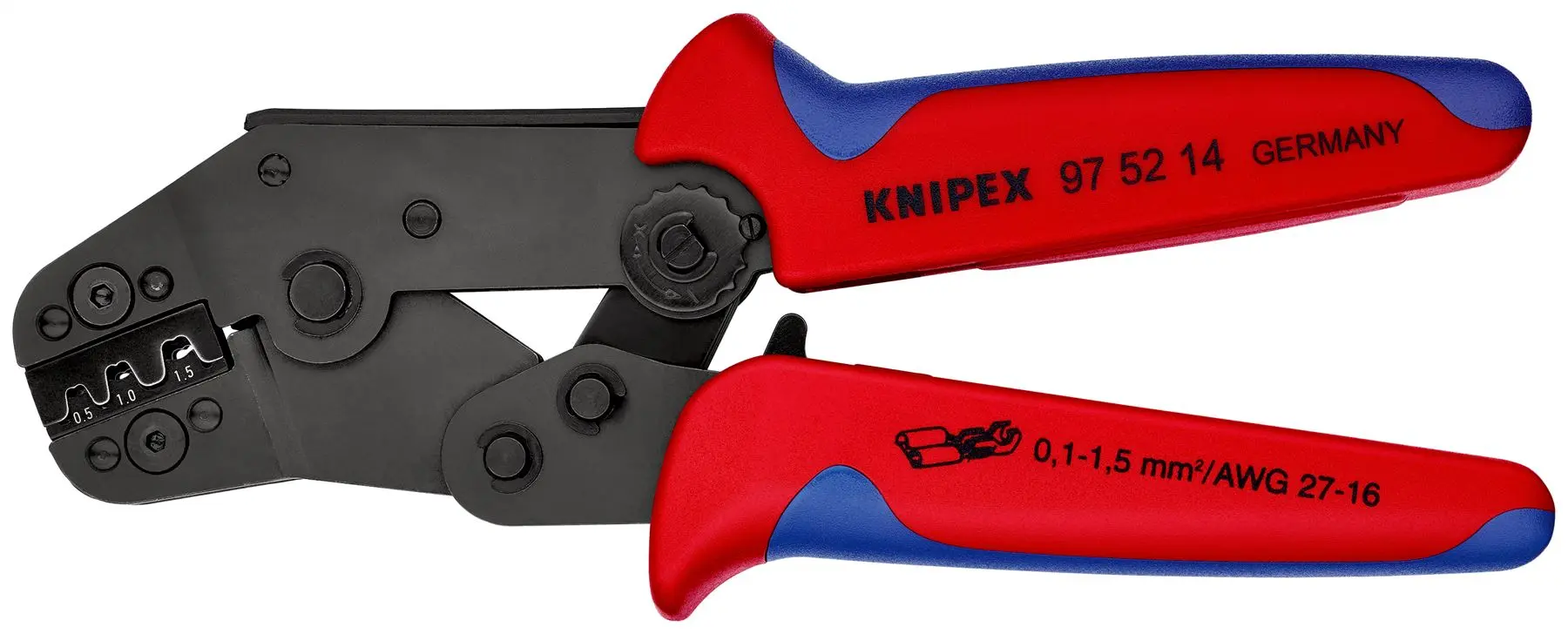

KNIPEX Crimping Pliers Short Design 195mm Multi Component Grips 97 52 14

Product image 1
Product image 2
Product image 3

KNIPEX Crimping Pliers Short Design 195mm Multi Component Grips 97 52 14

KNIPEX Crimping Pliers Short Design 195mm Multi Component Grips 97 52 14

KNIPEX Crimping Pliers Short Design 195mm Multi Component Grips 97 52 14

97 52 14 Crimping Pliers

Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable). Precise, factory calibrated crimping pressure. Good handling due to 20° angled head, low weight and short design. Crimping die is not exchangeable. available as accessory: locator for non-insulated open plug-type connectors.

  • Application: non-insulated open plug type connectors (plug width 2.8 + 4.8 mm)
  • Capacity in square millimetres: 0.1 — 1.5 mm²
  • Number of crimp profiles: 4
  • AWG: 26 — 16


    • Technical Information:
    • Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
    • Precise, factory calibrated crimping pressure
    • Good handling due to 20° angled head, low weight and short design
    • Crimping die is not exchangeable

    Downloadable Files:
    • Data Sheet: View Here

    $78.27

    Original: $223.62

    -65%
    KNIPEX Crimping Pliers Short Design 195mm Multi Component Grips 97 52 14—

    $223.62

    $78.27

    Product Information

    Shipping & Returns

    Description

    KNIPEX Crimping Pliers Short Design 195mm Multi Component Grips 97 52 14

    97 52 14 Crimping Pliers

    Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable). Precise, factory calibrated crimping pressure. Good handling due to 20° angled head, low weight and short design. Crimping die is not exchangeable. available as accessory: locator for non-insulated open plug-type connectors.

  • Application: non-insulated open plug type connectors (plug width 2.8 + 4.8 mm)
  • Capacity in square millimetres: 0.1 — 1.5 mm²
  • Number of crimp profiles: 4
  • AWG: 26 — 16


    • Technical Information:
    • Consistently high crimping quality due to precision dies and ratchet mechanism (unlockable)
    • Precise, factory calibrated crimping pressure
    • Good handling due to 20° angled head, low weight and short design
    • Crimping die is not exchangeable

    Downloadable Files:
    • Data Sheet: View Here
